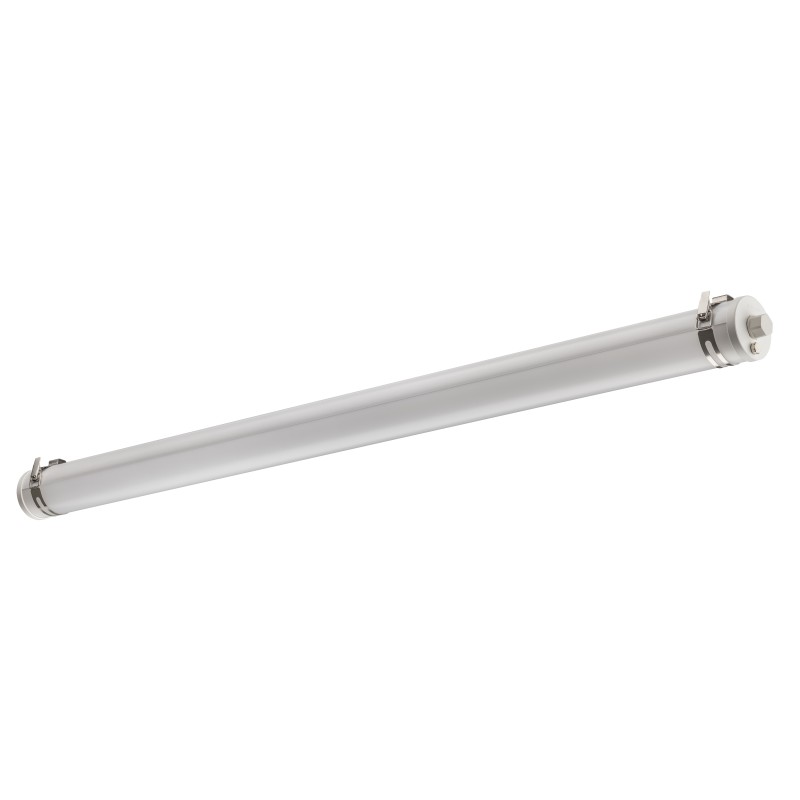

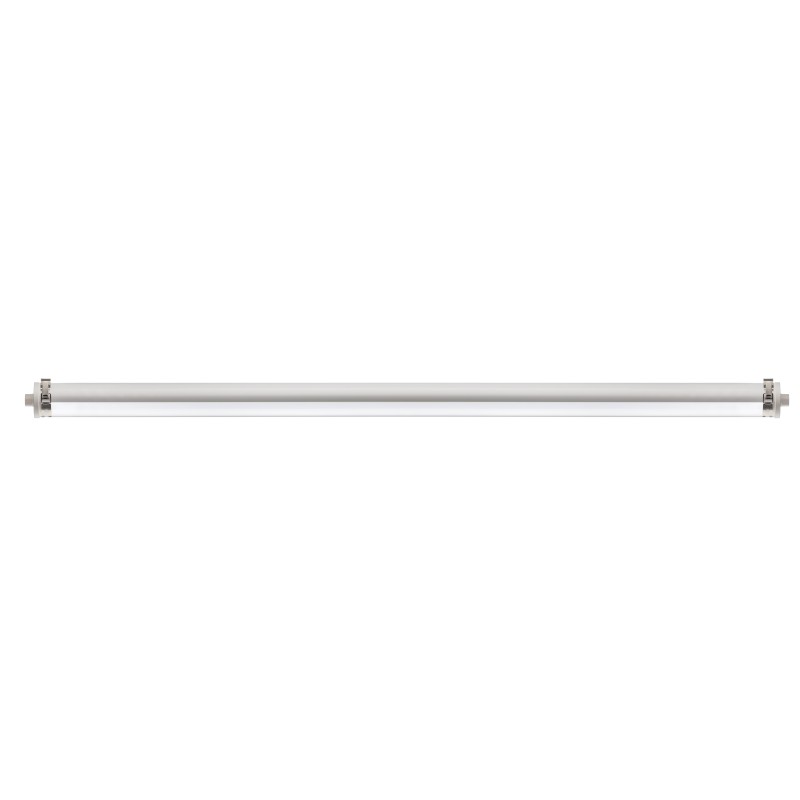

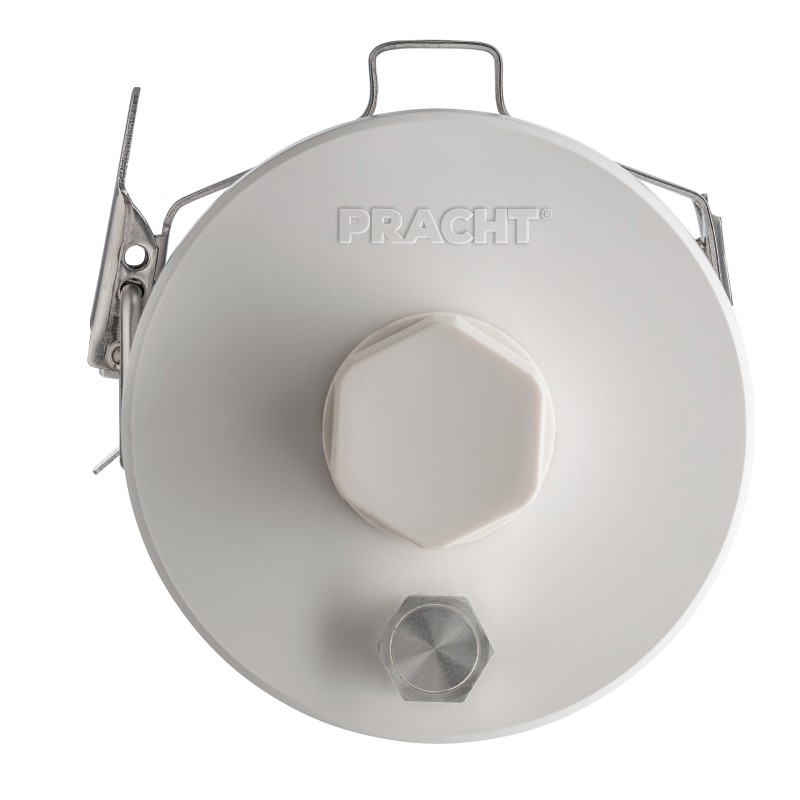

5240034 TUBIS BL 1330mm PO 1x36W 130° 5400lm
TUBIS BL 1330mm PO 1x36W 130° 5400lm, 4000K, class I, with TW 3x1,5mm². Versatile TUBIS BL LED circular tube luminaire: robust, efficient and ideal for demanding environments such as car washes, workshops or agriculture.
- ideally suited for unprotected outdoor areas
- waterproof, UV-resistant (PMMA tube) and flicker-free: IP67/IPX9K
- unrestricted approval for animal husbandry
- incl. 3x 1.5mm² through-wiring
- 360° degree rotatable light
- ideal lighting solution for agriculture suitable for acidic, alkaline and oily environments
- further configurability in the TUBIS PRO
technical data
| Beam angle | 130 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | nein |
| REACH | Nein |
| market indicator | CE |
| length | 1330 mm |
| multi-lumen | Nein |
| IP protection class | IP65 IP66 IP67 IPX9K |
| IK Impact resistance | IK06 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | not exchangeable |
| through-wiring | 3x1.5 |
| outdoor area | Unprotected outdoor area in the direct vicinity of the building with cable entry from below or from the side |
| Protection class | class I |
| Abmessungen (L x B x H) | 1330 x 81 x 80 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +40 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | without limitation |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 40 °C |
| Lichtstrom | 5400 lm |
| Leistung | 36 W |
| light output | 150 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 23.4 / 26.0 |
| Lifetime L70B50 (@Ta 25°C) | 158315 h |
| Service life L80B50 (@Ta 25°C) | 99507 h |
| Lifetime L90B50 (@Ta 25°C) | 47633 h |
| Lifetime L70B10 (@Ta 25°C) | 143149 h |
| Lifetime L80B10 (@Ta 25°C) | 90133 h |
| Lifetime L90B10 (@Ta 25°C) | 43413 h |
| Lifetime L70B50 (@Ta max) | 147018 h |
| Lifetime L80B50 (@Ta max) | 92634 h |
| Lifetime L90B50 (@Ta max) | 44301 h |
| Circuit breaker B16A | 19 Leuchten |
| Circuit breaker C16A | 32 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Zertifizierungszeichen | ENEC |
| Energy efficiency class of light source | C |
Tender text
Favorable Round tube luminaire TUBIS BL 1330mm PO 1x36W 130° 5400lm 4000K, class I, with TW 3x1,5mm². Versatile TUBIS BL LED circular tube luminaire: robust, efficient and ideal for demanding environments such as car washes, workshops or agriculture. Item number: 5240034 GTIN: 4018098361695 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of PMMA-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP67, IPX9K, IP65, IP66; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1330mm x 81mm x 80mm; Diameter: 70mm
