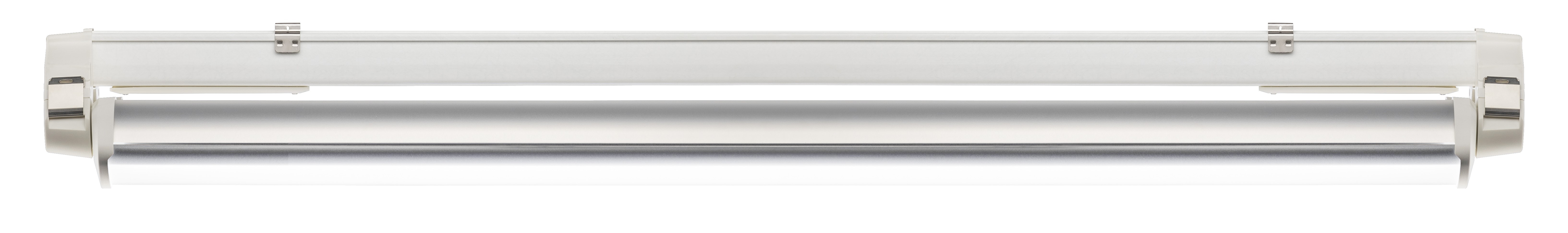

94802b0mx00 APOLLO G2 INDUSTRY XLS C 1560mm PO 2x73W 080° 25000lm

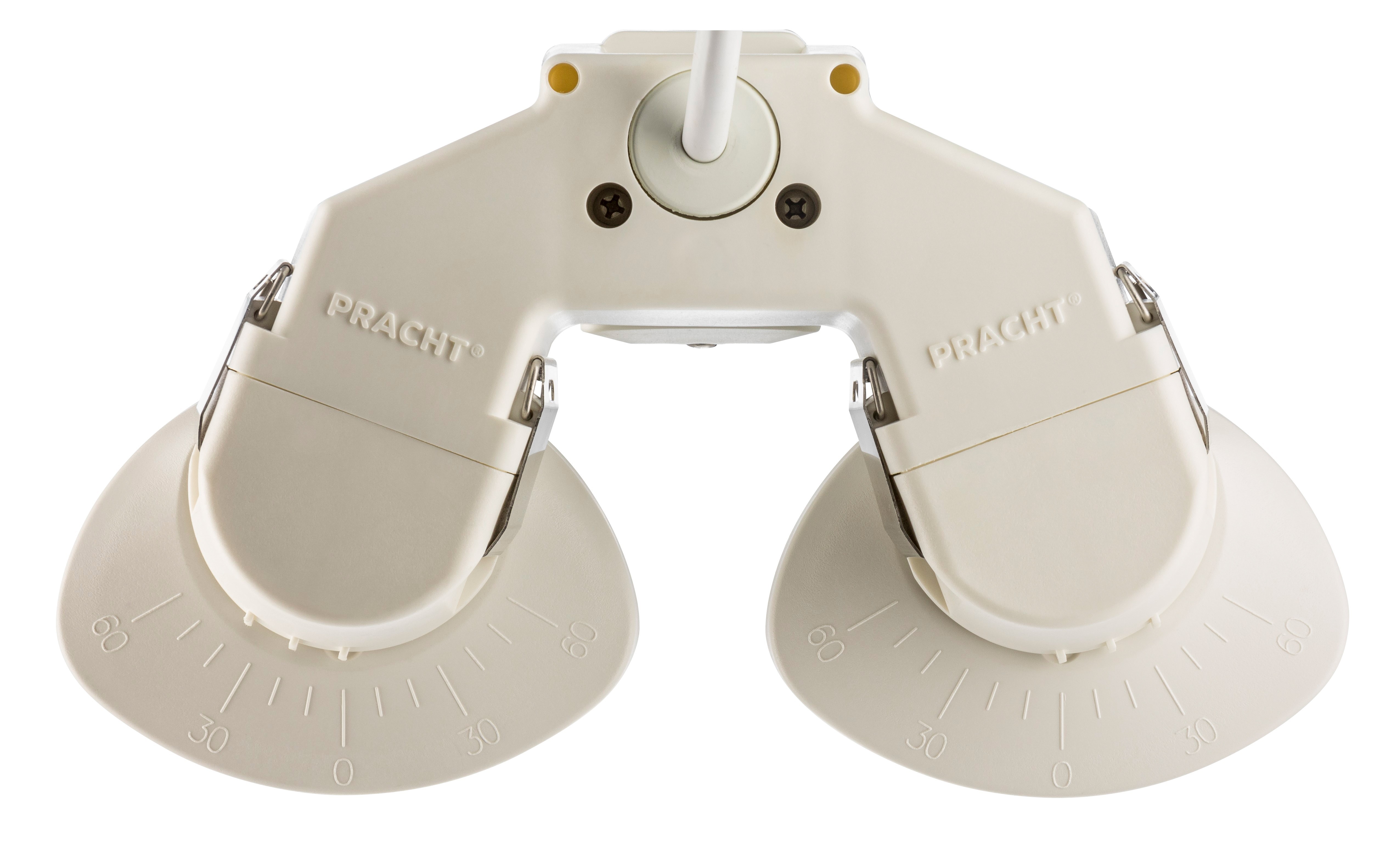

APOLLO G2 INDUSTRY XLS C 1560mm PO 2x73W 080° 25000lm, 4000K, class I, with TW 5x2,5mm², Casambi. The plastic parts of this luminaire are made from 22% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications.
- Flexibly configurable free-standing spotlight with swivel-mounted light
- Single-flame or double-flame reflectors
- largely acid & alkali-resistant due to (PRACHT-OPAL)
- compatible with support rail systems for quick installation with PRACHT-EASY-CONNECT
- IFS-compliant
- incl. CASAMBI/App Connect control: via Bluetooth in the mesh network ideal for existing installations, no need for new cabling
- Built-in industrial components offer higher transient resistance 4kV and longer service life due to temperature resistance of the luminaire (-45 to +65 degrees)
technical data
| Beam angle | 80 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 94802b0mx00NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1560 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| through-wiring | 5x2.5 |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1560 x 232 x 142 mm |
| Dimmable/Controllable | Casambi |
| Temperaturbereich | -20 … +40 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 40 °C |
| Lichtstrom | 25000 lm |
| Leistung | 146 W |
| light output | 171 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 26.2 / 22.3 |
| Lifetime L70B50 (@Ta 25°C) | 156648 h |
| Service life L80B50 (@Ta 25°C) | 98638 h |
| Lifetime L90B50 (@Ta 25°C) | 47471 h |
| Lifetime L70B10 (@Ta 25°C) | 124914 h |
| Lifetime L80B10 (@Ta 25°C) | 79103 h |
| Lifetime L90B10 (@Ta 25°C) | 38567 h |
| Lifetime L70B50 (@Ta max) | 139202 h |
| Lifetime L80B50 (@Ta max) | 87901 h |
| Lifetime L90B50 (@Ta max) | 42650 h |
| Circuit breaker B16A | 24 Leuchten |
| Circuit breaker C16A | 40 Leuchten |
| Surge voltage resistance L/N-PE | 4.0 kV |
| REMADE Score | 22 % |
| Zertifizierungszeichen | HACCP IFS |
| Energy efficiency class of light source | B |
Tender text
Durable Reflector luminaire APOLLO G2 INDUSTRY XLS C 1560mm PO 2x73W 080° 25000lm 4000K, class I, with TW 5x2,5mm², Casambi. The plastic parts of this luminaire are made from 22% recycled material. The new APOLLO industrial reflector luminaire: maximum efficiency and durability, IP65 protection, pivoting reflectors with industrial components, robust, acid-resistant housing and simple installation - perfect for demanding applications. Item number: 94802b0mx00 GTIN: 4018098428893 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1560mm x 232mm x 142mm; Diameter: mm
