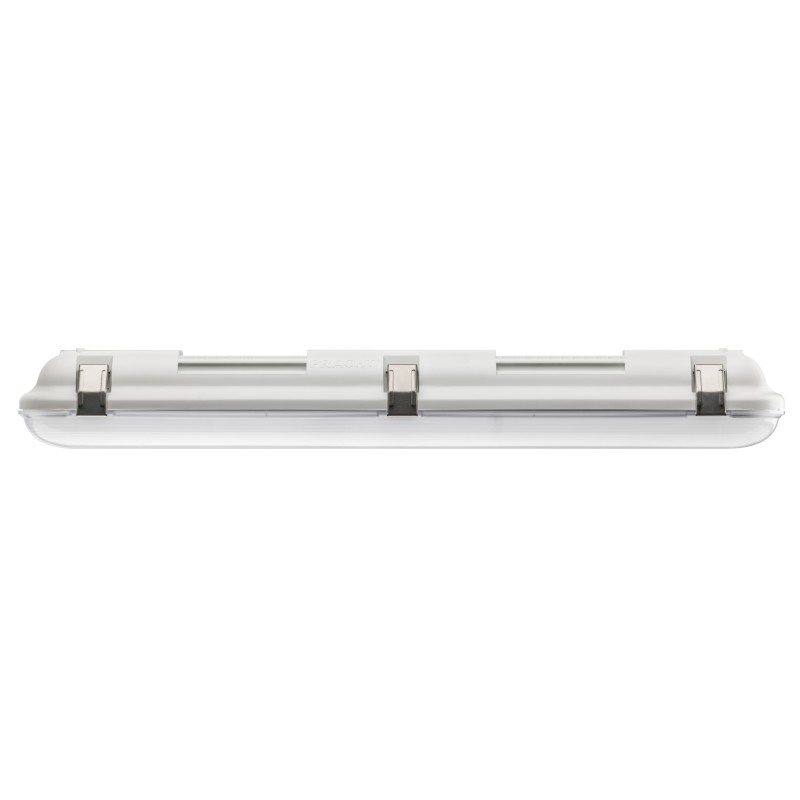

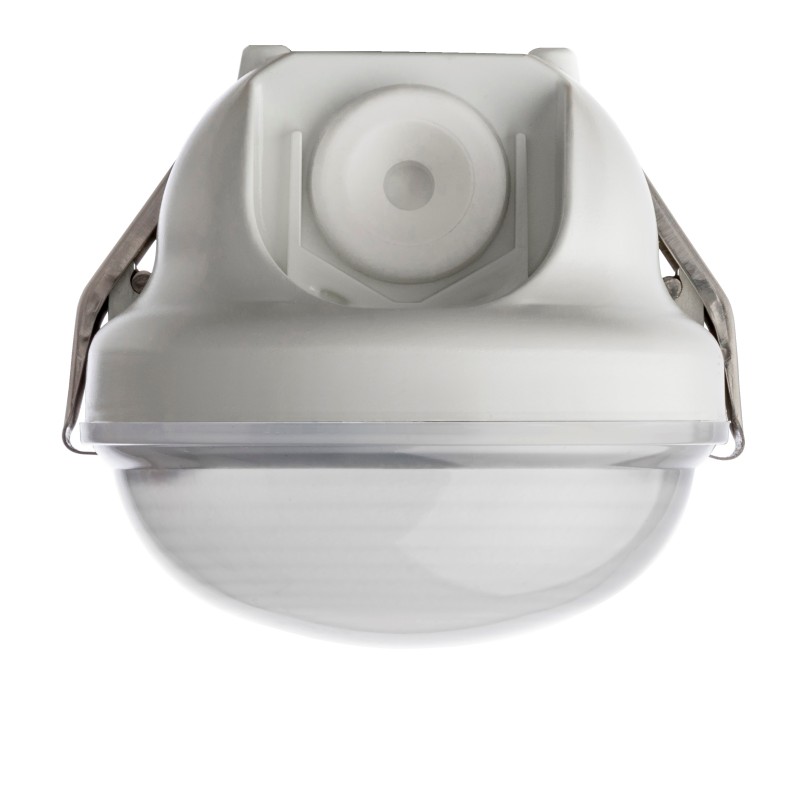

5211012 LUNA BL 0600mm PCO 1x20W 120° 2500lm
LUNA BL 0600mm PCO 1x20W 120° 2500lm, 4000K, class I, without TW. The LUNA BL 600mm PCO is a highly efficient LED moisture-proof diffuser luminaire with IP65 protection, EL-certified, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It offers quick and convenient installation thanks to the PRACHT CLAMP SYSTEM and variable mounting distances. The luminaire is optimized for parking lots, basements and workshops and enables flexible feed-in (head, front or central)
- The LED moisture-proof diffuser light
- Brand quality at an excellent price-performance ratio
- Easy to install, ideal for quick 1:1 replacement
- various through-wiring available as accessories
- ideally suited for parking garages, corridors, basements, workshops and technical rooms
- suitable for ceiling, horizontal wall, pendant and trunking mounting
- Light colors, controls, emergency lighting modules, cable inlets and much more in the LUNA range
- .and much more possible in the LUNA PRO
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 600 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 600 x 90 x 80 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +40 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 40 °C |
| Lichtstrom | 2500 lm |
| Leistung | 20 W |
| Lichtausbeute | 125 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 24.0 / 25.3 |
| Lebensdauer L70B50 (@Ta 25°C) | 200605 h |
| Lebensdauer L80B50 (@Ta 25°C) | 132209 h |
| Lebensdauer L90B50 (@Ta 25°C) | 71880 h |
| Lebensdauer L70B10 (@Ta 25°C) | 159341 h |
| Lebensdauer L80B10 (@Ta 25°C) | 105223 h |
| Lebensdauer L90B10 (@Ta 25°C) | 57489 h |
| Lebensdauer L70B50 (@Ta max) | 200605 h |
| Lebensdauer L80B50 (@Ta max) | 132209 h |
| Lebensdauer L90B50 (@Ta max) | 71880 h |
| Stoßspannungsfestigkeit L/N-PE | 1.0 kV |
| Zertifizierungszeichen | ENEC |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 67 |
| Leitungsschutz C16A | 112 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Efficient Diffuser luminaire LUNA BL 0600mm PCO 1x20W 120° 2500lm 4000K, class I, without TW. The LUNA BL 600mm PCO is a highly efficient LED moisture-proof diffuser luminaire with IP65 protection, EL-certified, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It offers quick and convenient installation thanks to the PRACHT CLAMP SYSTEM and variable mounting distances. The luminaire is optimized for parking lots, basements and workshops and enables flexible feed-in (head, front or central) Item number: 5211012 GTIN: 4018098369332 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 600mm x 90mm x 80mm; Diameter: mm
