5211015B LUNA BL 1500mm PCO 1x47W 120° 6500lm

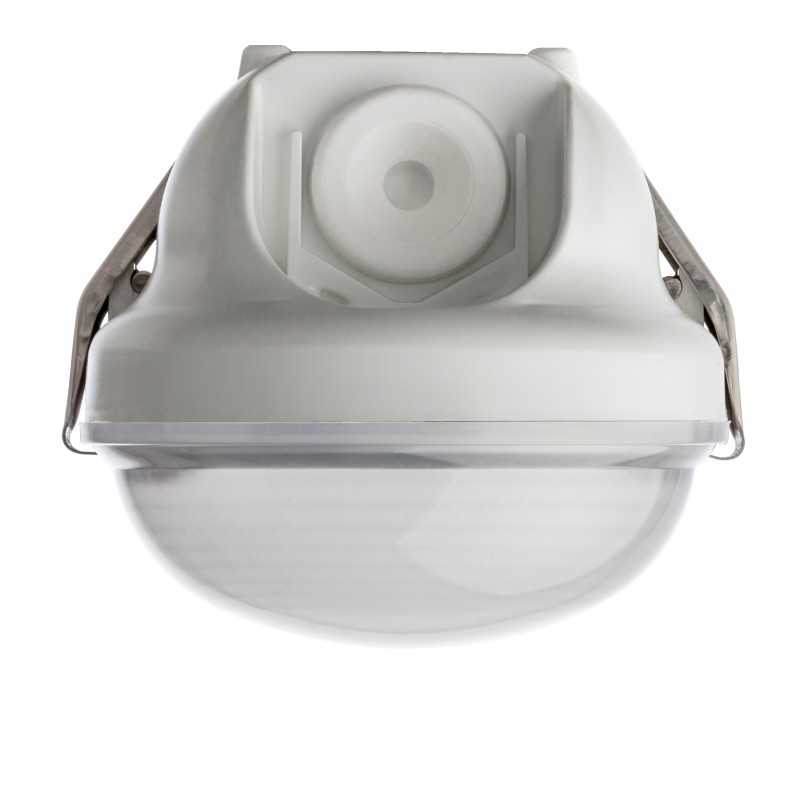

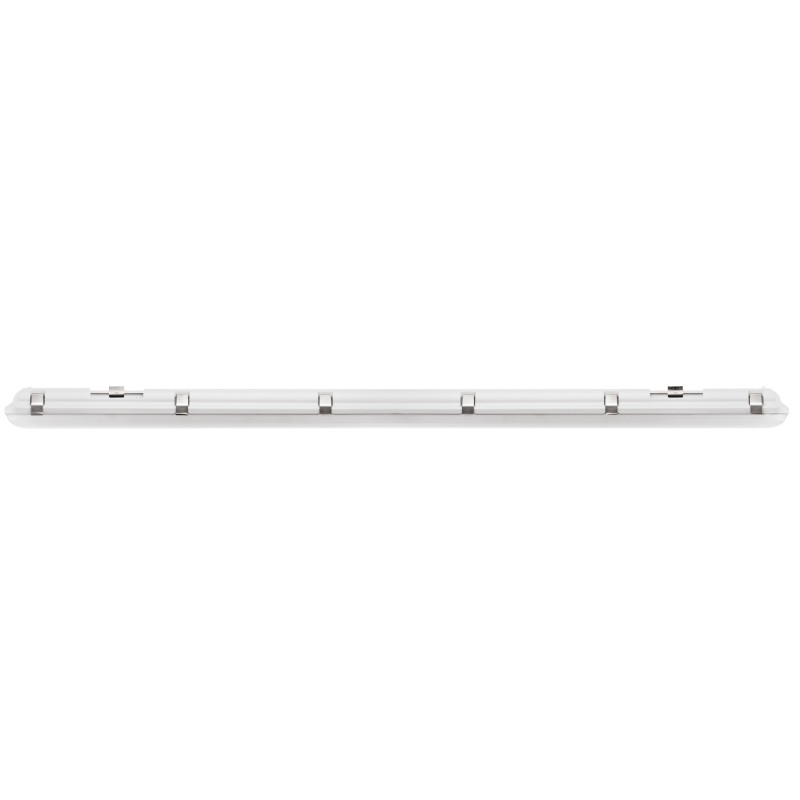

LUNA BL 1500mm PCO 1x47W 120° 6500lm, 4000K, class I, without TW. The LUNA BL 1500mm PCO is a highly efficient LED moisture-proof diffuser luminaire with IP65 protection, EL-certified, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It offers quick and convenient installation thanks to the PRACHT CLAMP SYSTEM and variable mounting distances. The luminaire is optimized for parking lots, basements and workshops and enables flexible feed-in (head, front or central)
- Light for professionals
- Suitable for industrial use
- 5-year guarantee
- Powerful performance combined with convenient installation
- BEG-eligible and ENEC-certified
- Various DV sets available as accessories
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1500 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | available as accessory |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1500 x 90 x 80 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 6500 lm |
| Leistung | 47 W |
| Lichtausbeute | 138 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 24.3 / 25.4 |
| Lebensdauer L70B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B50 (@Ta 25°C) | 64700 h |
| Lebensdauer L90B50 (@Ta 25°C) | 32000 h |
| Lebensdauer L70B10 (@Ta 25°C) | 89600 h |
| Lebensdauer L80B10 (@Ta 25°C) | 57200 h |
| Lebensdauer L90B10 (@Ta 25°C) | 28700 h |
| Lebensdauer L70B50 (@Ta max) | 100000 h |
| Lebensdauer L80B50 (@Ta max) | 64700 h |
| Lebensdauer L90B50 (@Ta max) | 32000 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Zertifizierungszeichen | ENEC |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 18 |
| Leitungsschutz C16A | 30 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Efficient Diffuser luminaire LUNA BL 1500mm PCO 1x47W 120° 6500lm 4000K, class I, without TW. The LUNA BL 1500mm PCO is a highly efficient LED moisture-proof diffuser luminaire with IP65 protection, EL-certified, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It offers quick and convenient installation thanks to the PRACHT CLAMP SYSTEM and variable mounting distances. The luminaire is optimized for parking lots, basements and workshops and enables flexible feed-in (head, front or central) Item number: 5211015B GTIN: 4018098387121 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1500mm x 90mm x 80mm; Diameter: mm
