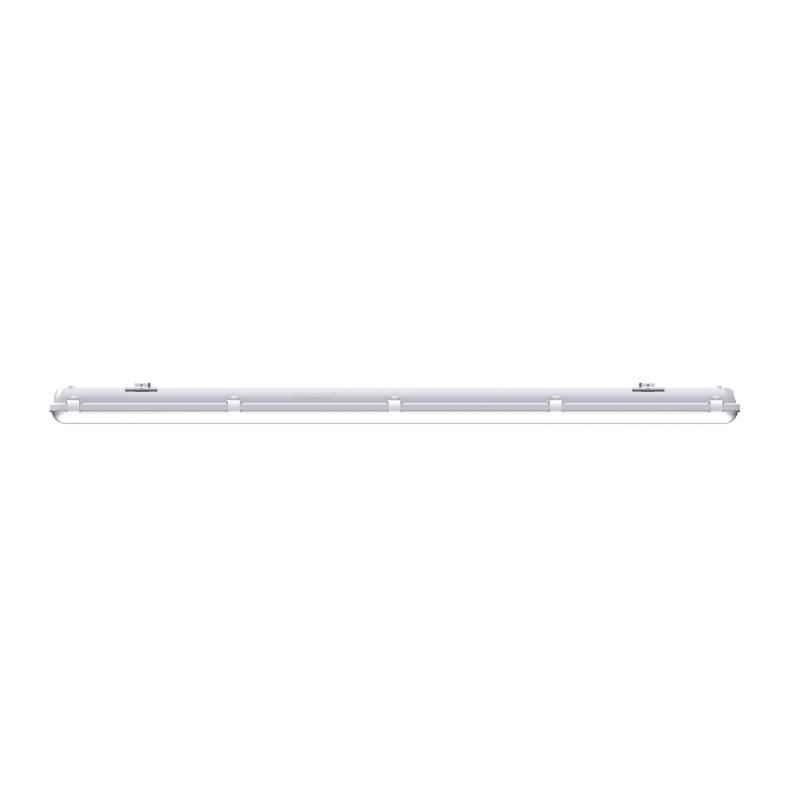

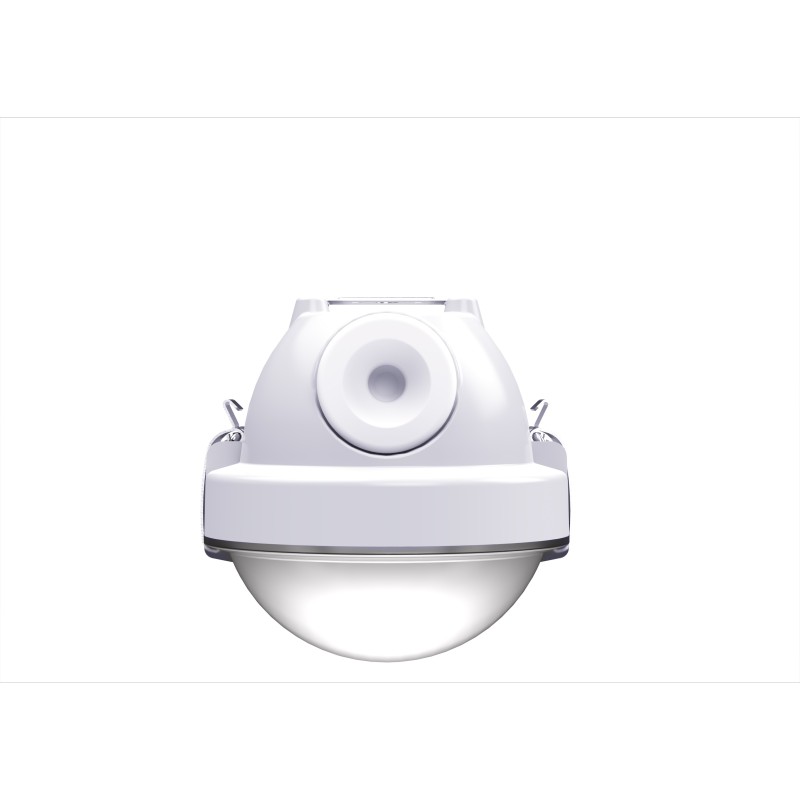

5212204 LUNA RETRO SET 1284mm PCi 1x17W 165° 2200lm
LUNA RETRO SET 1284mm PCi 1x17W 165° 2200lm, 4000K, class I, without TW, with LED illuminant socket G13 1200mm. Luminaire housing with T8 LED tube (230V, AC 50/60Hz), made of impact-resistant white polycarbonate (IK08). Easy installation thanks to PRACHT-CLIP SYSTEM and high-quality stainless steel clips. With textured opalized PC diffuser, suitable for ceiling, pendant and wall mounting. Three ceiling-side cable entries and optional connection with DV 3x1.5mm².
- Impact-resistant and robust housing made of polycarbonate (PC)
- Visually uniform appearance in 1:1 replacement
- Patented folding mechanism for the light source holder

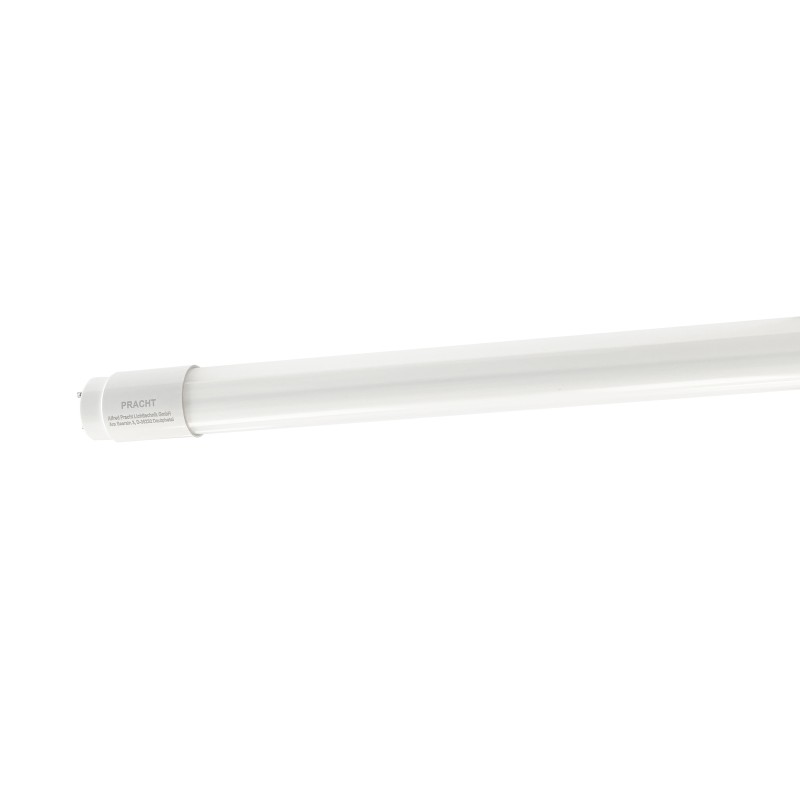

- Including PRACHT LED tube
technical data
| Ausstrahlwinkel | 165 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1284 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Nennlampenleistung | 25 W |
| Interchangeability of operating device | yes, by customer |
| Interchangeability of light source | yes, by customer |
| Through-wiring | available as accessory |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1284 x 76 x 77 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 2200 lm |
| Leistung | 17 W |
| Lichtausbeute | 129 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 20.4 / 24.6 |
| Lebensdauer L70B50 (@Ta 25°C) | 76376 h |
| Lebensdauer L80B50 (@Ta 25°C) | 48829 h |
| Lebensdauer L90B50 (@Ta 25°C) | 24236 h |
| Lebensdauer L70B10 (@Ta 25°C) | 63629 h |
| Lebensdauer L80B10 (@Ta 25°C) | 40727 h |
| Lebensdauer L90B10 (@Ta 25°C) | 20527 h |
| Lebensdauer L70B50 (@Ta max) | 74990 h |
| Lebensdauer L80B50 (@Ta max) | 47711 h |
| Lebensdauer L90B50 (@Ta max) | 23907 h |
| Stoßspannungsfestigkeit L/N-PE | 1.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 66 |
| Leitungsschutz C16A | 111 |
| emergency lighting suitability | no |
| Producer guarantee | 3 Years |
| D marking | Yes |
Tender text
Easy to maintain Diffuser luminaire LUNA RETRO SET 1284mm PCi 1x17W 165° 2200lm 4000K, class I, without TW, with LED illuminant socket G13 1200mm. Luminaire housing with T8 LED tube (230V, AC 50/60Hz), made of impact-resistant white polycarbonate (IK08). Easy installation thanks to PRACHT-CLIP SYSTEM and high-quality stainless steel clips. With textured opalized PC diffuser, suitable for ceiling, pendant and wall mounting. Three ceiling-side cable entries and optional connection with DV 3x1.5mm². Item number: 5212204 GTIN: 4018098411970 Technical details/specification: Cover made of PCi - Polycarbonate structured inside; Housing made of PC-Polycarbonate White RAL 9010; 220–240V 50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1284mm x 76mm x 77mm; Diameter: mm
