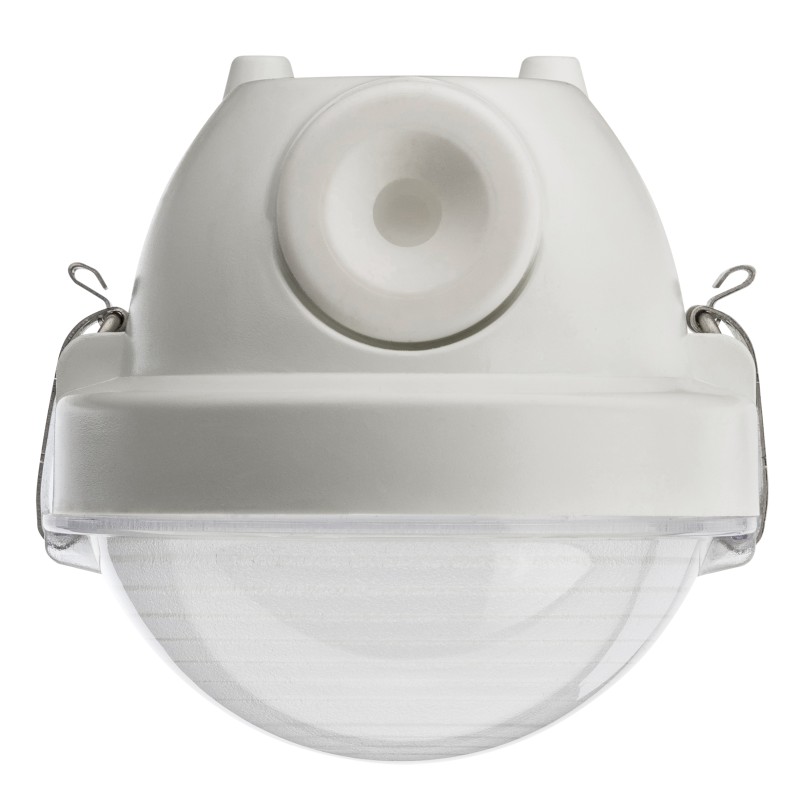

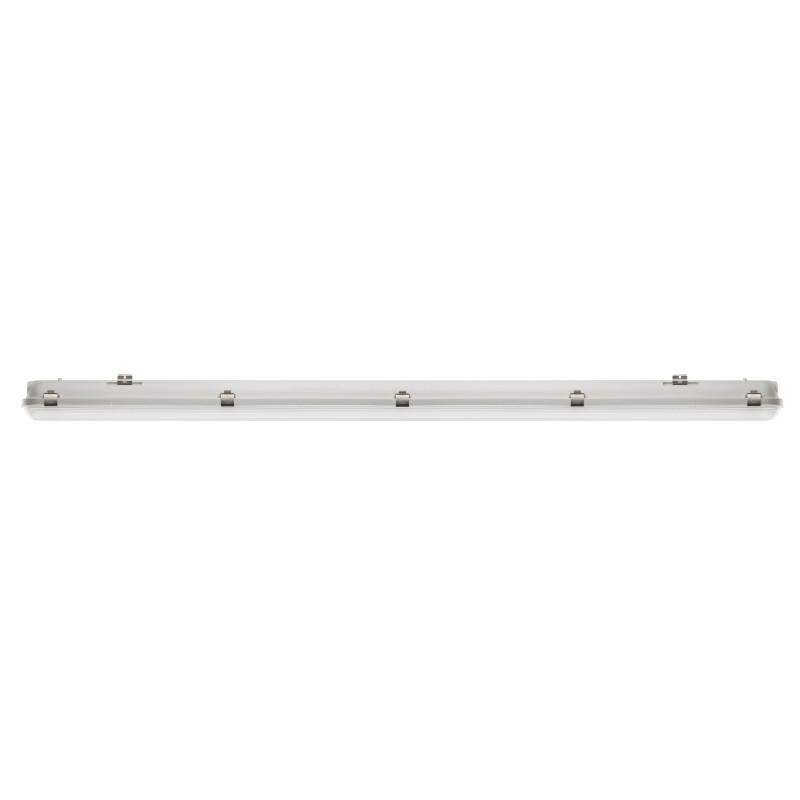

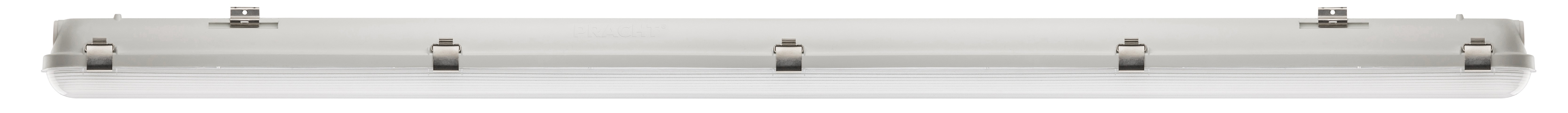

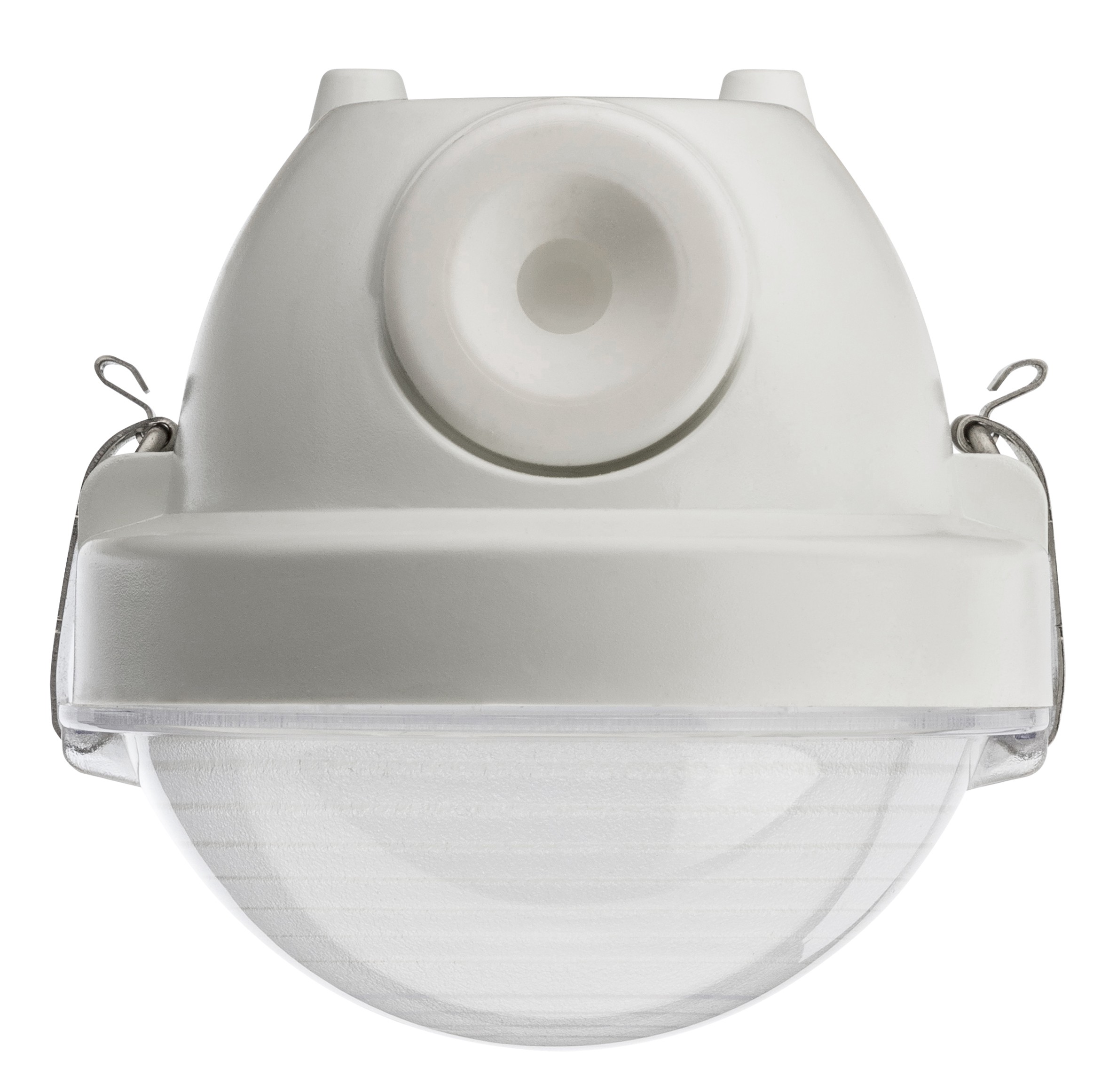

5212304 LUNA RETRO HOUSING 1284mm max. 1x25W PCi
LUNA RETRO HOUSING 1284mm max. 1x25W PCi, class I, without TW, for 1x LED illuminant 1200mm socket G13. LUNA RETRO HOUSING diffuser luminaire, without bulb, impact-resistant (IK08), IP65. Easy to install, suitable for T8 LED tubes. Ceiling, pendant and wall mounting, polycarbonate housing.
- Impact-resistant and robust polycarbonate (PC) housing
- Visually uniform appearance in 1:1 exchange
- Patented folding mechanism of the lamp holder
- Ideally suited for T8 light source of various brands
- Also available as retro set including PRACHT LED-tube
technical data
| REACH (EN) | No |
|---|---|
| Marktkennzeichen | CE |
| Länge | 1284 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Nennlampenleistung | 25 W |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |

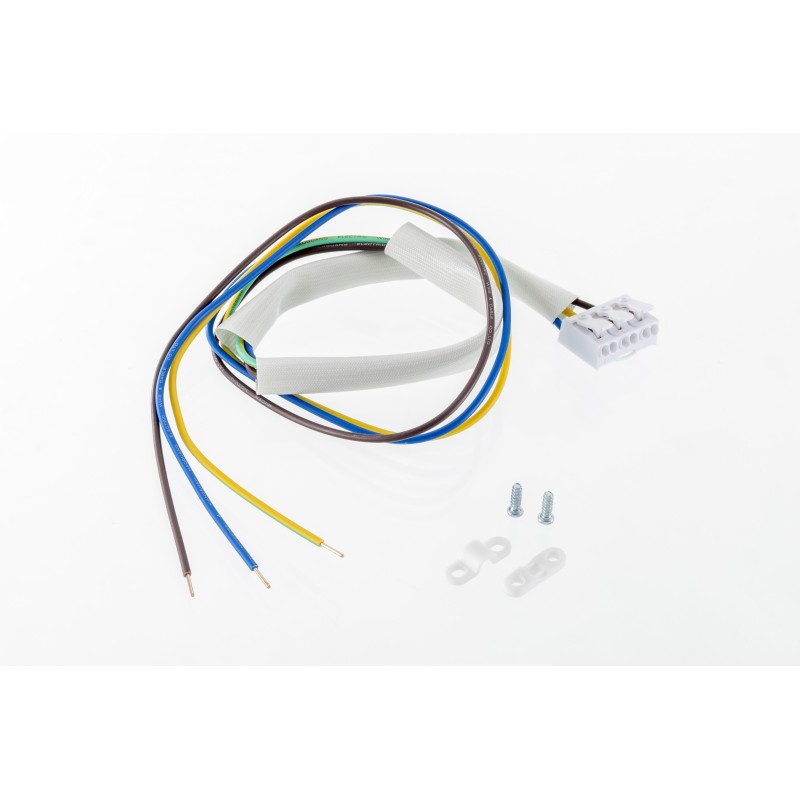

| Through-wiring | available as accessory |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1284 x 76 x 77 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| emergency lighting suitability | no |
| Producer guarantee | 3 Years |
| D marking | Yes |
Tender text
Diffuser luminaire LUNA RETRO HOUSING 1284mm max. 1x25W PCi class I, without TW, for 1x LED illuminant 1200mm socket G13. LUNA RETRO HOUSING diffuser luminaire, without bulb, impact-resistant (IK08), IP65. Easy to install, suitable for T8 LED tubes. Ceiling, pendant and wall mounting, polycarbonate housing. Article Number: 5212304 GTIN: 4018098413905 Technical Details/Specifications: Cover made of PCi - Polycarbonate structured inside; Housing made of PC-Polycarbonate white; ; Energy efficiency class ; Number of lamps / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1284mm x 76mm x 77mm; Diameter: mm
