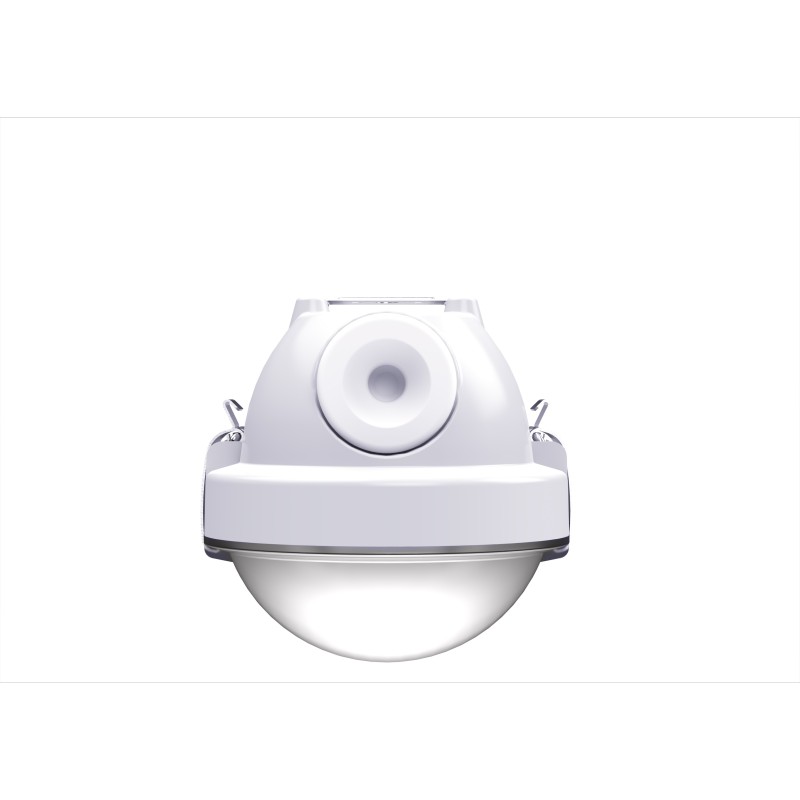

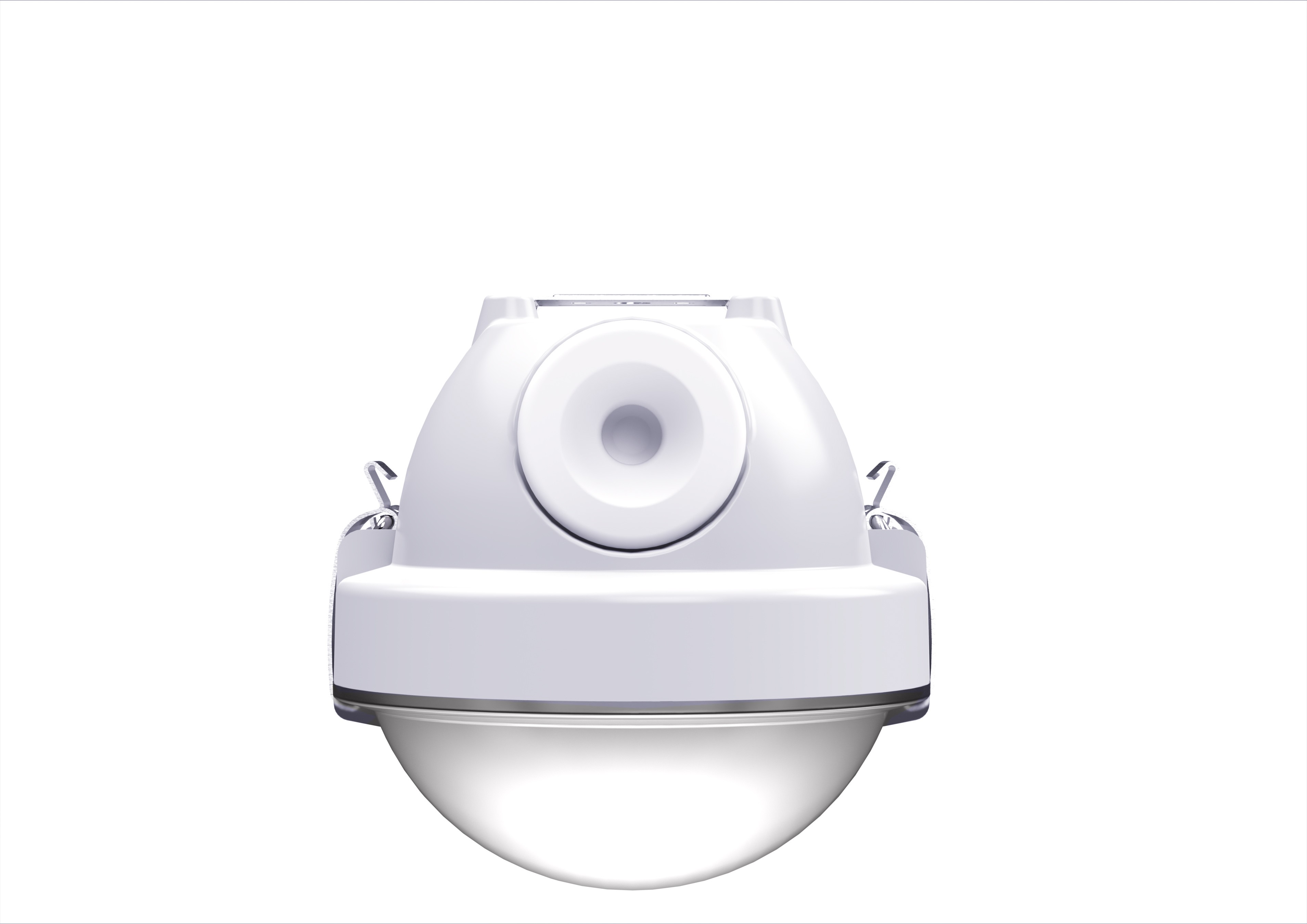

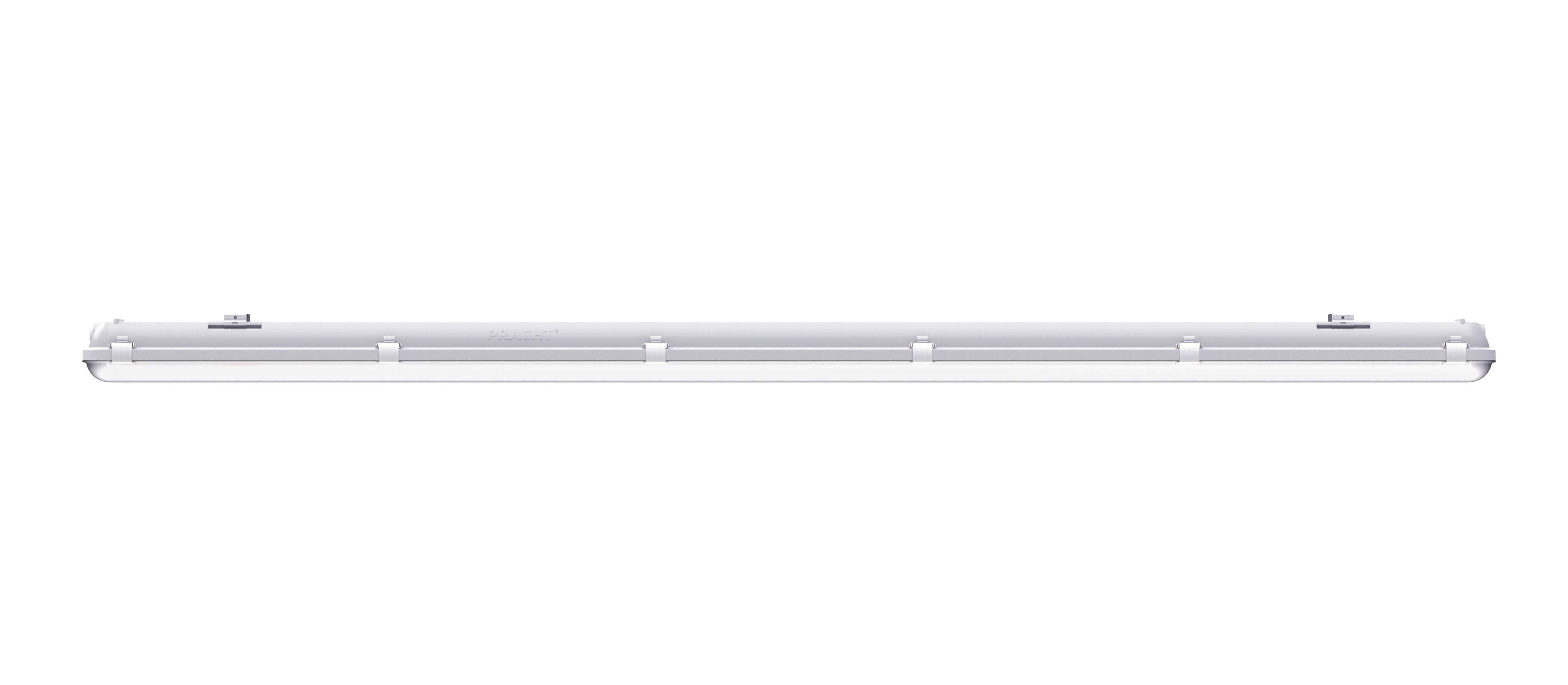

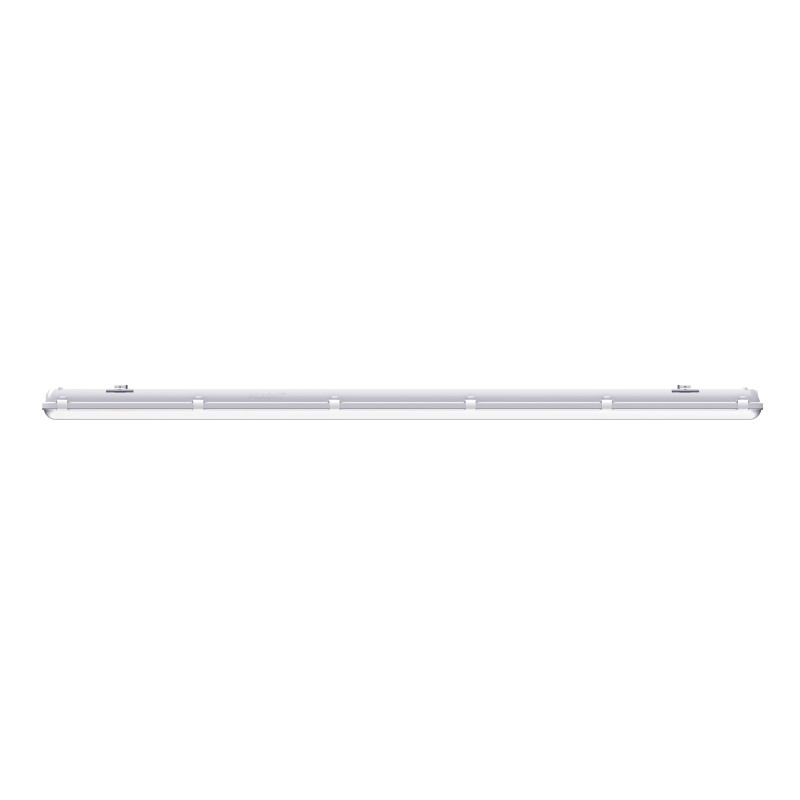

5212305 LUNA RETRO HOUSING 1584mm max. 1x35W PCi
LUNA RETRO HOUSING 1584mm max. 1x35W PCi, class I, without TW, for 1x LED illuminant 1500mm socket G13. LUNA RETRO HOUSING diffuser luminaire, without bulb, impact-resistant (IK08), IP65. Easy to install, suitable for T8 LED tubes. Ceiling, pendant and wall mounting, polycarbonate housing.
- Impact-resistant and robust polycarbonate (PC) housing
- Visually uniform appearance in 1:1 exchange
- Patented folding mechanism of the lamp holder
- Ideally suited for T8 light source of various brands
- Also available as retro set including PRACHT LED-tube
technical data
| Dimensions (L x W x H) | 1584 x 76 x 77 mm |
|---|---|
| Guarantee | 3 years |
| D marking | No |
| Supply voltage | AC |
| Market indicator | CE |

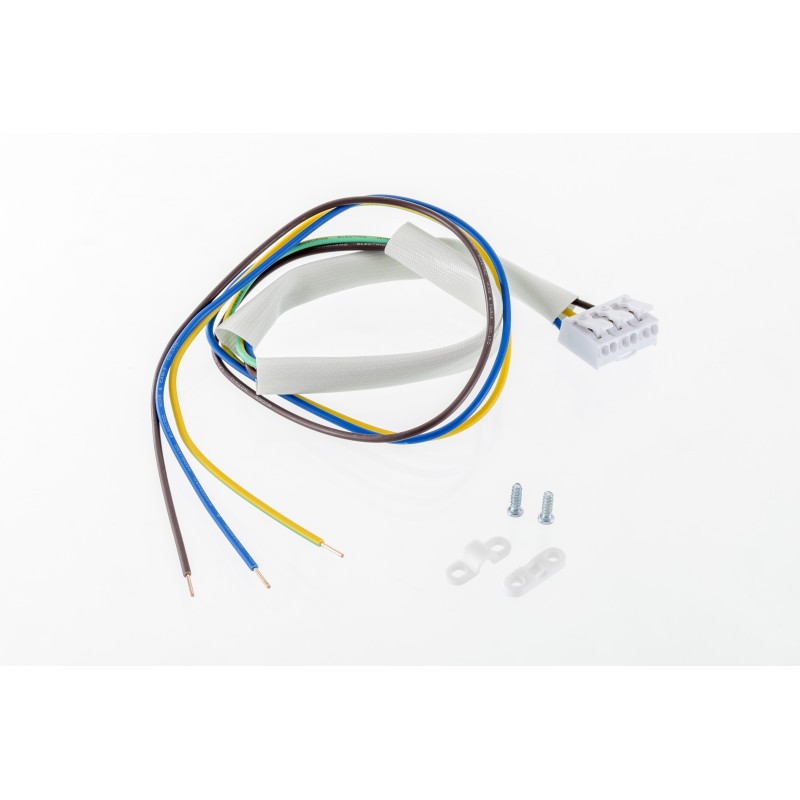

| Through-wiring | available as an accessory |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1584 mm |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Nennlampenleistung | 35 W |
| Dimming/Control | Fixed Output |
Tender text
Diffuser luminaire LUNA RETRO HOUSING 1584mm max. 1x35W PCi class I, without TW, for 1x LED illuminant 1500mm socket G13. LUNA RETRO HOUSING diffuser luminaire, without bulb, impact-resistant (IK08), IP65. Easy to install, suitable for T8 LED tubes. Ceiling, pendant and wall mounting, polycarbonate housing. Article Number: 5212305 GTIN: 4018098413912 Technical Details/Specifications: Cover made of PCi - Polycarbonate structured inside; Housing made of PC-Polycarbonate white; ; Energy efficiency class ; Number of lamps / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1584mm x 76mm x 77mm; Diameter: mm
