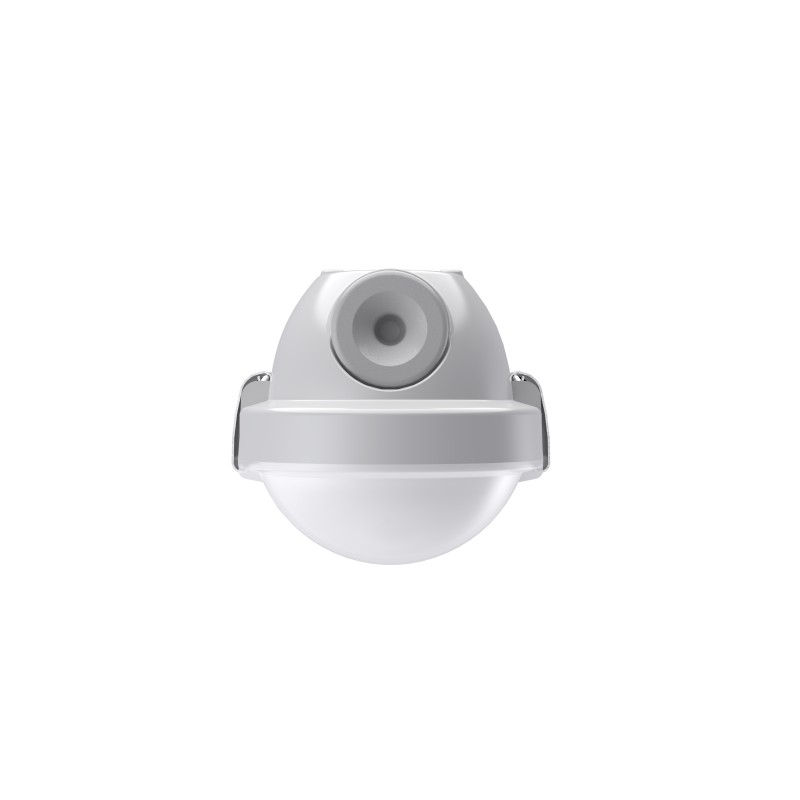

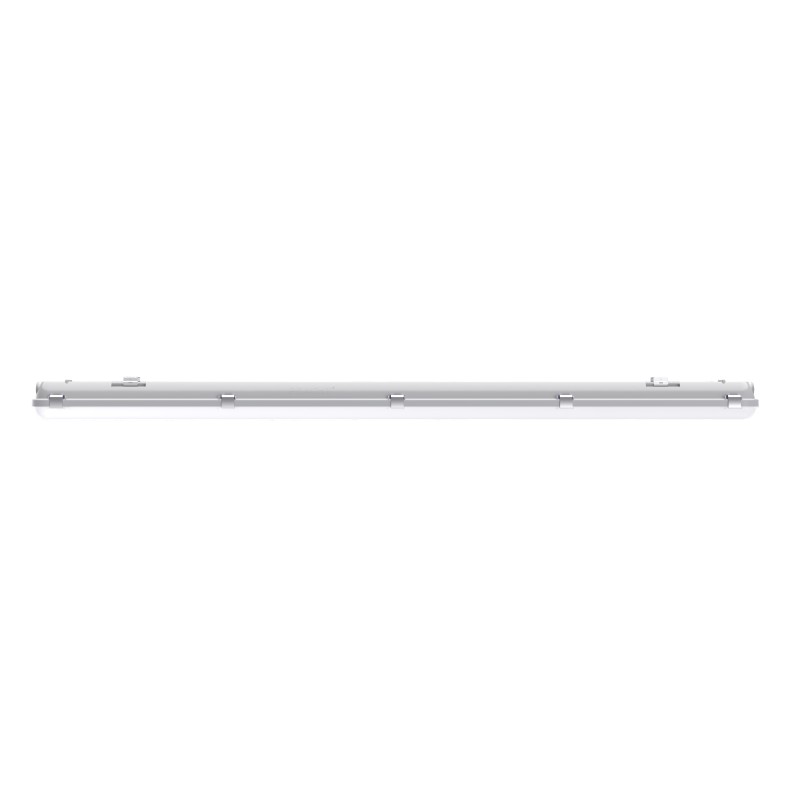

5221004 LUNA ECO 1285mm PCO 1x28W 120° 3400lm
LUNA ECO 1285mm PCO 1x28W 120° 3400lm, 4000K, class I, without TW. The inexpensive LUNA ECO diffuser luminaire offers highly efficient lighting with an impact-resistant opalized polycarbonate cover and age-resistant silicone seals. Ideal for 1:1 replacement or as a new installation in workshops, corridors and damp rooms. With simple PRACHT CLAMP SYSTEM.
- Light for everyday life
- EASY. ECONOMIC EFFICIENT.
- Ideal for garages, cellars, warehouses and workshops
- 3-pin TW sets available as accessories
- Simple 1:1 replacement for fluorescent tubes
technical data
| Dimensions (L x W x H) | 1285 x 74 x 79 mm |
|---|---|
| Luminous flux | 3400 lm |
| Performance | 28 W |
| Luminous efficacy | 121 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 3 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1285 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 23.1 / 24.3 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 200605 h |
| Lifetime L80B50 (@Ta 25°C) | 132209 h |
| Lifetime L90B50 (@Ta 25°C) | 71880 h |
| Lifetime L70B10 (@Ta 25°C) | 159341 h |
| Lifetime L80B10 (@Ta 25°C) | 105223 h |
| Lifetime L90B10 (@Ta 25°C) | 57489 h |
| Lifetime L70B50 (@Ta max) | 163034 h |
| Lifetime L80B50 (@Ta max) | 107053 h |
| Lifetime L90B50 (@Ta max) | 58346 h |
| Line protection B16A | 34 Luminaires |
| Line protection C16A | 57 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 5221004NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Certification mark | ENEC |
| Energy efficiency class Light source | D |
| Dimming/Control | Fixed Output |
Tender text
Favorable Diffuser luminaire LUNA ECO 1285mm PCO 1x28W 120° 3400lm 4000K, class I, without TW. The inexpensive LUNA ECO diffuser luminaire offers highly efficient lighting with an impact-resistant opalized polycarbonate cover and age-resistant silicone seals. Ideal for 1:1 replacement or as a new installation in workshops, corridors and damp rooms. With simple PRACHT CLAMP SYSTEM. Item number: 5221004 GTIN: 4018098409595 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1285mm x 74mm x 79mm; Diameter: mm
