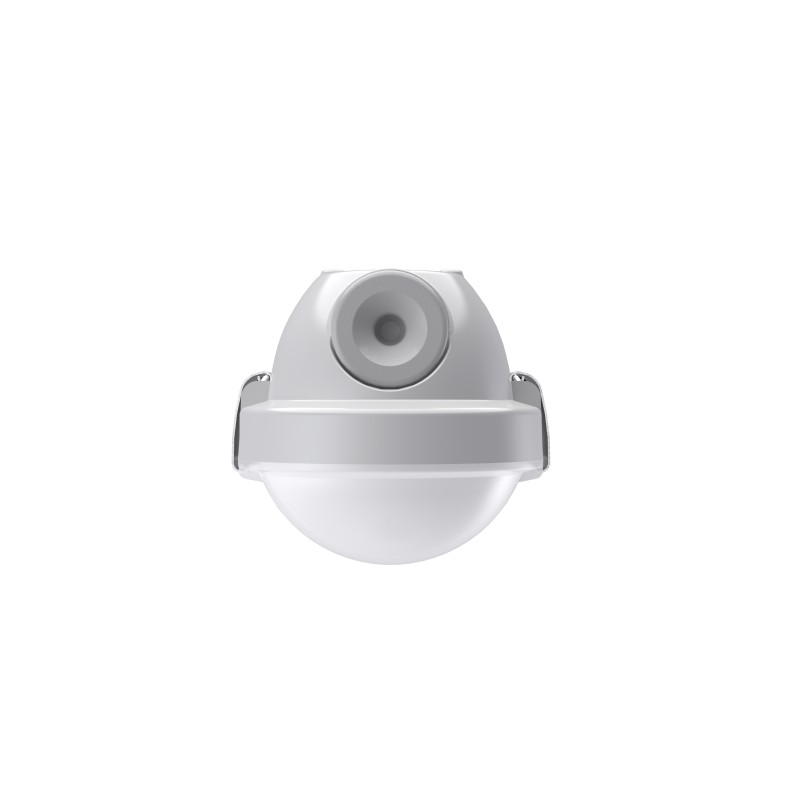

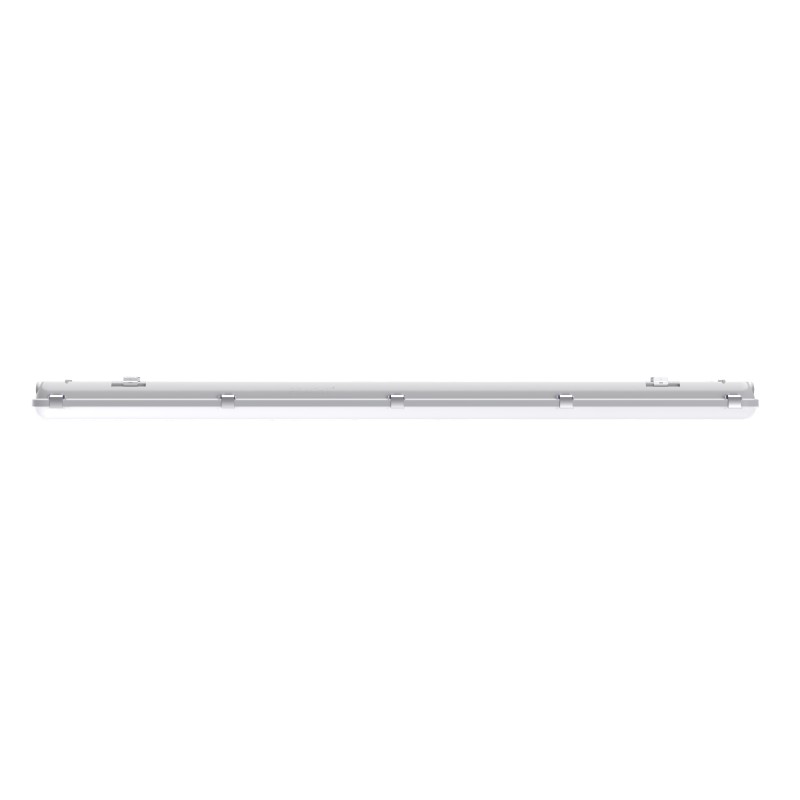

5221615 LUNA ECO MC 1585mm PCO 1x24-39W 120° 3800-6000lm
LUNA ECO MC 1585mm PCO 1x24/30/33/39W 120° 3800/4700/5200/6000lm, 3000, 3500, 4000K, class I, without TW. The inexpensive LUNA ECO diffuser luminaire offers highly efficient lighting with an impact-resistant opalized polycarbonate cover and age-resistant silicone seals. Ideal for 1:1 replacement or as a new installation in workshops, corridors and damp rooms. With simple PRACHT CLAMP SYSTEM.
- Light for everyday life
- EASY. ECONOMIC EFFICIENT.
- Ideal for garages, cellars, warehouses and workshops
- 3-pin TW sets available as accessories
- Simple 1:1 replacement for fluorescent tubes
technical data
| Dimensions (L x W x H) | 1585 x 74 x 79 mm |
|---|---|
| Luminous flux | 3800 lm 4700 lm 5200 lm 6000 lm |
| Performance | 24 W 30 W 33 W 39 W |
| Luminous efficacy | 154 lm/W |
| Color temperature | 3000 K 3500 K 4000 K |
| Beam angle | 120 ° |
| Guarantee | 3 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | Yes |
| Length | 1585 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 24.4 / 25.6 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 177627 h |
| Lifetime L80B50 (@Ta 25°C) | 111276 h |
| Lifetime L90B50 (@Ta 25°C) | 52863 h |
| Lifetime L70B10 (@Ta 25°C) | 151333 h |
| Lifetime L80B10 (@Ta 25°C) | 95930 h |
| Lifetime L90B10 (@Ta 25°C) | 46663 h |
| Lifetime L70B50 (@Ta max) | 177627 h |
| Lifetime L80B50 (@Ta max) | 111276 h |
| Lifetime L90B50 (@Ta max) | 52863 h |
| Line protection B16A | 36 luminaires |
| Line protection C16A | 60 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 5221615NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | Multilumen |
Tender text
Favorable Diffuser luminaire LUNA ECO MC 1585mm PCO 1x24/30/33/39W 120° 3800/4700/5200/6000lm 3000, 3500, 4000K, class I, without TW. The inexpensive LUNA ECO diffuser luminaire offers highly efficient lighting with an impact-resistant opalized polycarbonate cover and age-resistant silicone seals. Ideal for 1:1 replacement or as a new installation in workshops, corridors and damp rooms. With simple PRACHT CLAMP SYSTEM. Item number: 5221615 GTIN: 4018098448525 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1585mm x 74mm x 79mm; Diameter: mm
