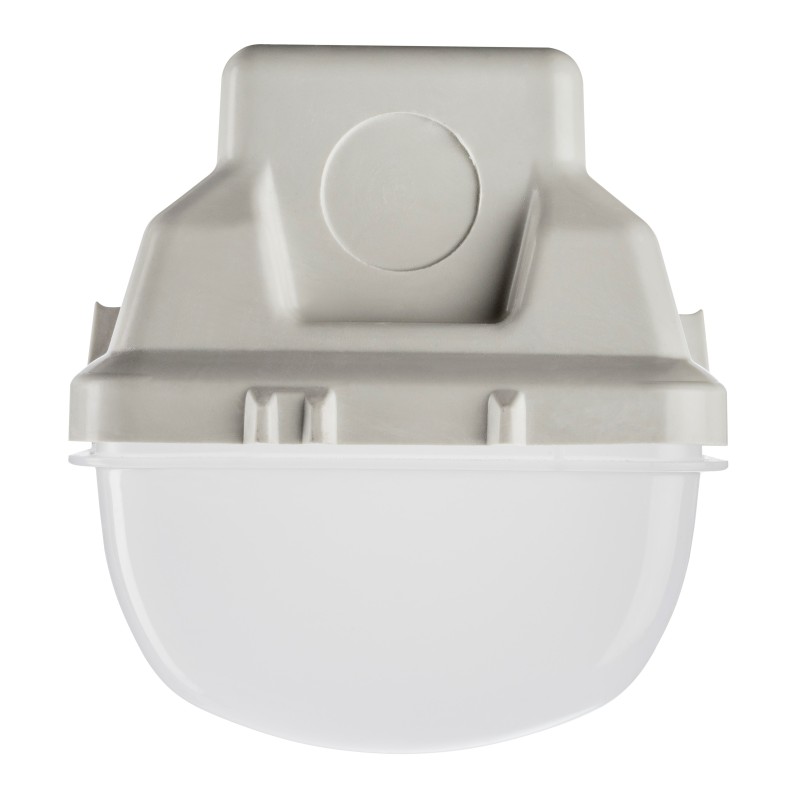

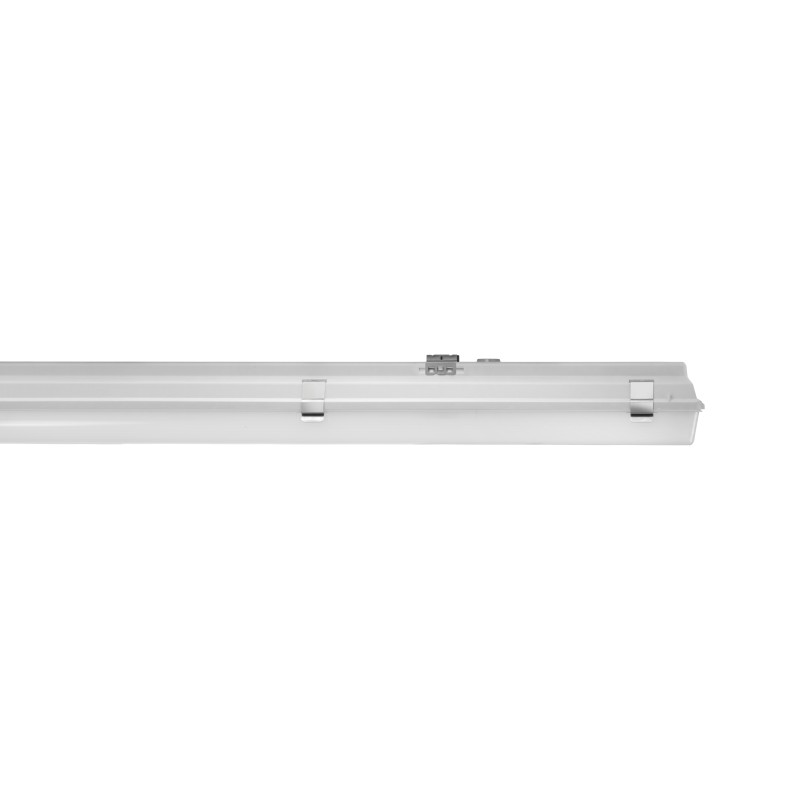

5261060 LUNA N LED 0668mm LOPRA 1x12W 120° 1900lm
LUNA N LED 0668mm LOPRA 1x12W 120° 1900lm, 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting.
- proven LUNA tub light with new LED technology
- multi-purpose and configurable diffuser luminaire
- short installation time & easy, fast component replacement due to two-part housing
- various through-wiring and emergency lighting battery available
- ceiling, pendant and horizontal wall mounting, carrier rail mounting
- ideally suited for parking garages
- perfect for existing installations thanks to variable mounting distances and suitable lumen packages
technical data
| Dimensions (L x W x H) | 668 x 86 x 98 mm |
|---|---|
| Luminous flux | 1900 lm |
| Performance | 12 W |
| Luminous efficacy | 158 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC |
| Market indicator | CE |
| Through-wiring | available as an accessory |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 668 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 22.0 / 23.0 |
| IP protection class | IP66 |
| IK Impact resistance | IK02 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 231103 h |
| Lifetime L80B50 (@Ta 25°C) | 146191 h |
| Lifetime L90B50 (@Ta 25°C) | 71294 h |
| Lifetime L70B10 (@Ta 25°C) | 200343 h |
| Lifetime L80B10 (@Ta 25°C) | 126317 h |
| Lifetime L90B10 (@Ta 25°C) | 61022 h |
| Lifetime L70B50 (@Ta max) | 221483 h |
| Lifetime L80B50 (@Ta max) | 139467 h |
| Lifetime L90B50 (@Ta max) | 67127 h |
| Line protection B16A | 34 Luminaires |
| Line protection C16A | 57 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Proven Diffuser luminaire LUNA N LED 0668mm LOPRA 1x12W 120° 1900lm 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting. Item number: 5261060 GTIN: 4018098221401 Technical details/specification: Cover made of LOPRA; Housing made of GRP polyester Grey RAL 7035; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 668mm x 86mm x 98mm; Diameter: mm
