5261220 LUNA N LED 1278mm LOPRA 1x56W 120° 8100lm

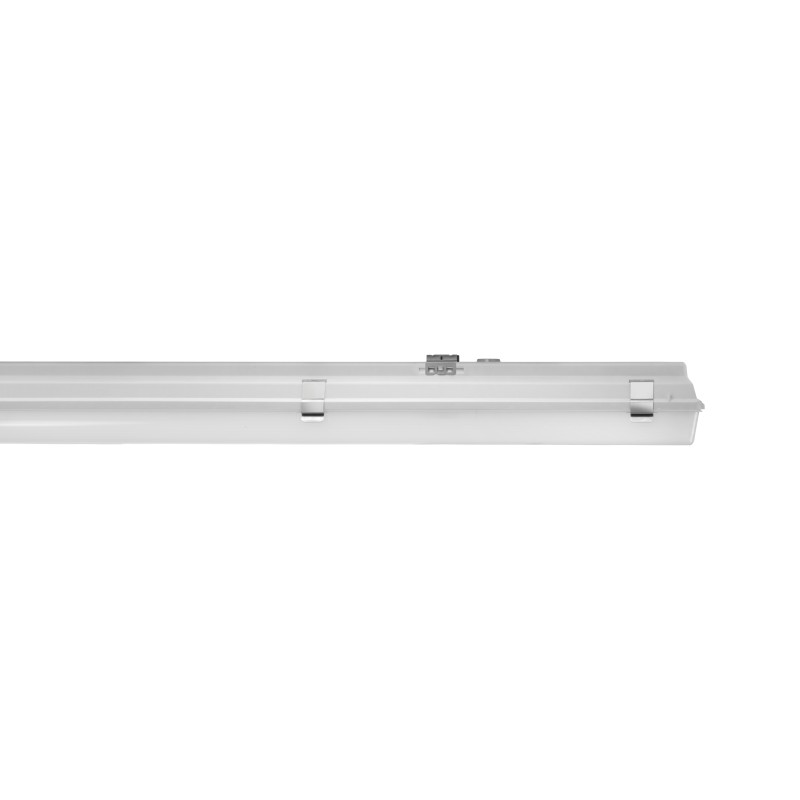

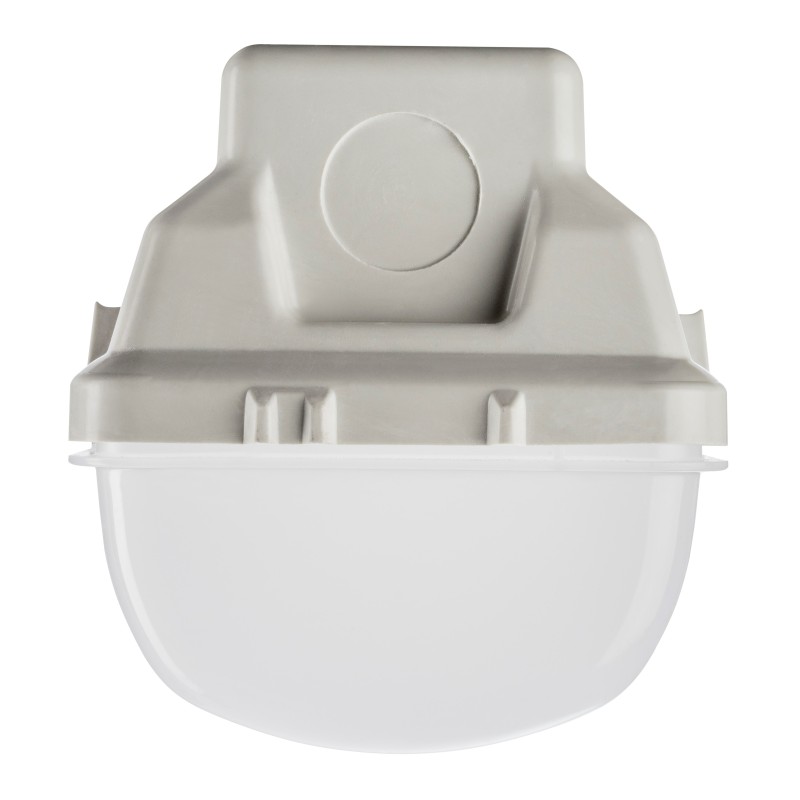

LUNA N LED 1278mm LOPRA 1x56W 120° 8100lm, 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting.
- proven LUNA tub light with new LED technology
- multi-purpose and configurable diffuser luminaire
- short installation time & easy, fast component replacement due to two-part housing
- various through-wiring and emergency lighting battery available
- ceiling, pendant and horizontal wall mounting, carrier rail mounting
- ideally suited for parking garages
- perfect for existing installations thanks to variable mounting distances and suitable lumen packages
technical data
| Beam angle | 120 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | nein |
| REACH | Nein |
| market indicator | CE |
| length | 1278 mm |
| multi-lumen | Nein |
| IP protection class | IP66 |
| IK Impact resistance | IK02 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| through-wiring | available as accessory |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1278 x 112 x 102 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Lichtstrom | 8100 lm |
| Leistung | 56 W |
| light output | 145 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.2 / 25.4 |
| Lifetime L70B50 (@Ta 25°C) | 159003 h |
| Service life L80B50 (@Ta 25°C) | 99976 h |
| Lifetime L90B50 (@Ta 25°C) | 47902 h |
| Lifetime L70B10 (@Ta 25°C) | 137495 h |
| Lifetime L80B10 (@Ta 25°C) | 87044 h |
| Lifetime L90B10 (@Ta 25°C) | 42354 h |
| Lifetime L70B50 (@Ta max) | 151442 h |
| Lifetime L80B50 (@Ta max) | 95534 h |
| Lifetime L90B50 (@Ta max) | 46106 h |
| Circuit breaker B16A | 24 Leuchten |
| Circuit breaker C16A | 46 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Energy efficiency class of light source | D |
Tender text
Proven Diffuser luminaire LUNA N LED 1278mm LOPRA 1x56W 120° 8100lm 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting. Item number: 5261220 GTIN: 4018098296218 Technical details/specification: Cover made of LOPRA; Housing made of GRP polyester Grey RAL 7035; 220–240V 50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP66; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1278mm x 112mm x 102mm; Diameter: mm
