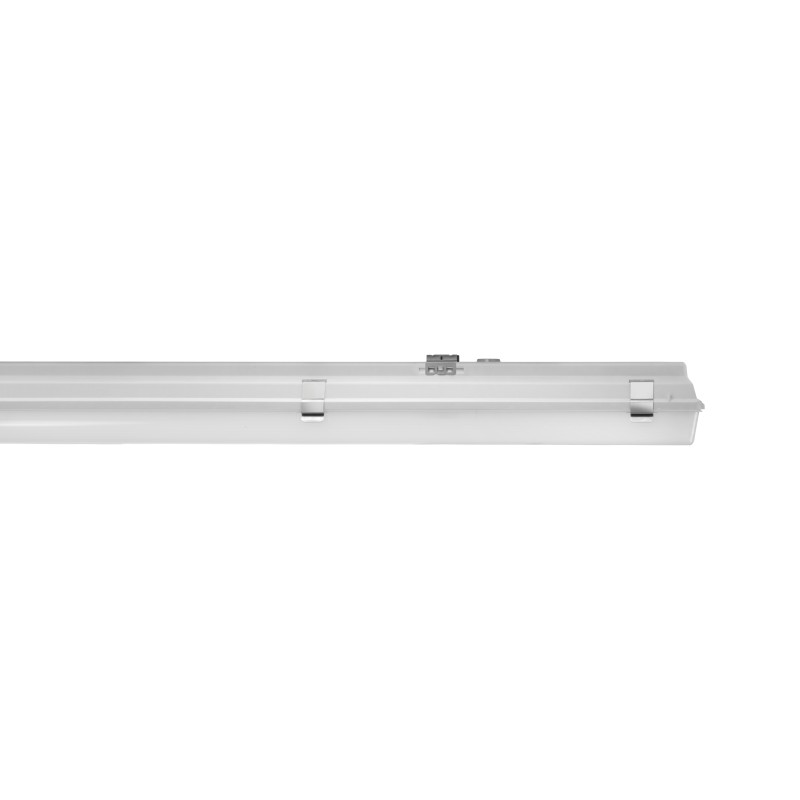

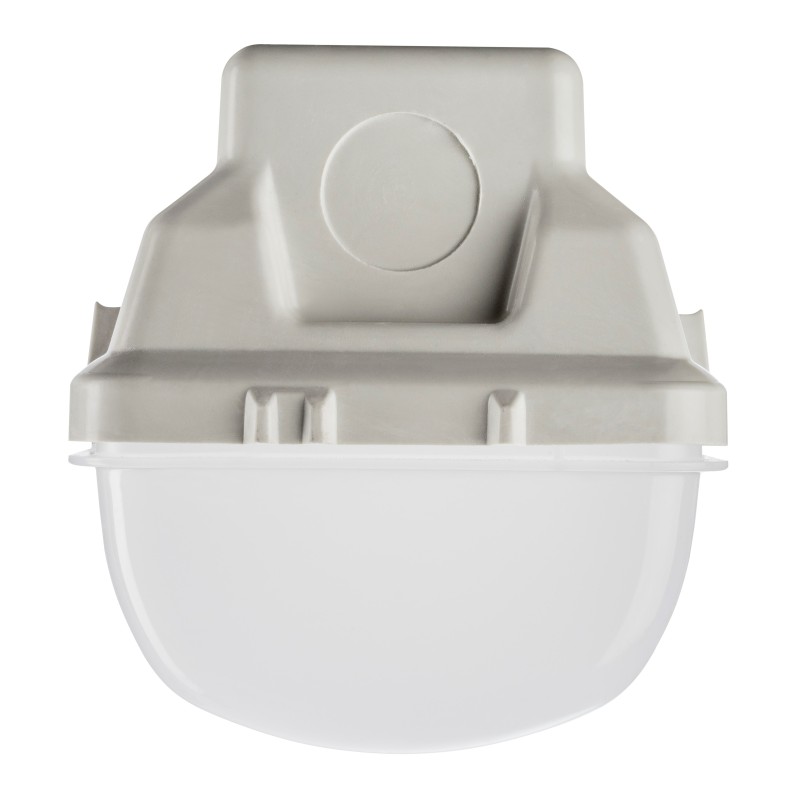

5261280 LUNA N LED 1578mm LOPRA 1x71W 120° 10200lm
LUNA N LED 1578mm LOPRA 1x71W 120° 10200lm, 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting.
- proven LUNA tub light with new LED technology
- multi-purpose and configurable diffuser luminaire
- short installation time & easy, fast component replacement due to two-part housing
- various through-wiring and emergency lighting battery available
- ceiling, pendant and horizontal wall mounting, carrier rail mounting
- ideally suited for parking garages
- perfect for existing installations thanks to variable mounting distances and suitable lumen packages
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1578 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP66 |
| IK Schlagfestigkeit | IK02 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | available as accessory |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1578 x 112 x 102 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 10200 lm |
| Leistung | 71 W |
| Lichtausbeute | 144 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 24.3 / 25.5 |
| Lebensdauer L70B50 (@Ta 25°C) | 159003 h |
| Lebensdauer L80B50 (@Ta 25°C) | 99976 h |
| Lebensdauer L90B50 (@Ta 25°C) | 47902 h |
| Lebensdauer L70B10 (@Ta 25°C) | 137495 h |
| Lebensdauer L80B10 (@Ta 25°C) | 87044 h |
| Lebensdauer L90B10 (@Ta 25°C) | 42354 h |
| Lebensdauer L70B50 (@Ta max) | 151442 h |
| Lebensdauer L80B50 (@Ta max) | 95534 h |
| Lebensdauer L90B50 (@Ta max) | 46106 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 24 |
| Leitungsschutz C16A | 46 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Proven Diffuser luminaire LUNA N LED 1578mm LOPRA 1x71W 120° 10200lm 4000K, class I, without TW, V2A clip, silicone foam seal. Moisture-proof diffuser luminaire made of grey, glass fiber reinforced polyester housing. The LOPRA cover ensures glare-free, homogeneous illumination. With age-resistant silicone foam seal and stainless steel locking clip. Simple installation thanks to the PRACHT CLAMP SYSTEM, suitable for ceiling, pendant, trunking and wall mounting. Item number: 5261280 GTIN: 4018098296201 Technical details/specification: Cover made of LOPRA; Housing made of GRP polyester Grey RAL 7035; 220–240V 50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP66; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1578mm x 112mm x 102mm; Diameter: mm
