5291014 LUNA PRO 1200mm PCO 1x39W 120° 5400lm
LUNA PRO 1200mm PCO 1x39W 120° 5400lm, 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting.
- Versatile and configurable diffuser light
- Easy, quick component replacement thanks to two-part housing
- Various through-wiring & emergency lighting battery possible
- Ceiling, pendant and horizontal wall mounting, mounting rail installation
- Ideally suited for parking garages
- Ideal for existing installations thanks to variable mounting distances and matching lumen packages
technical data
| Beam angle | 120 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 5291014NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1200 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |

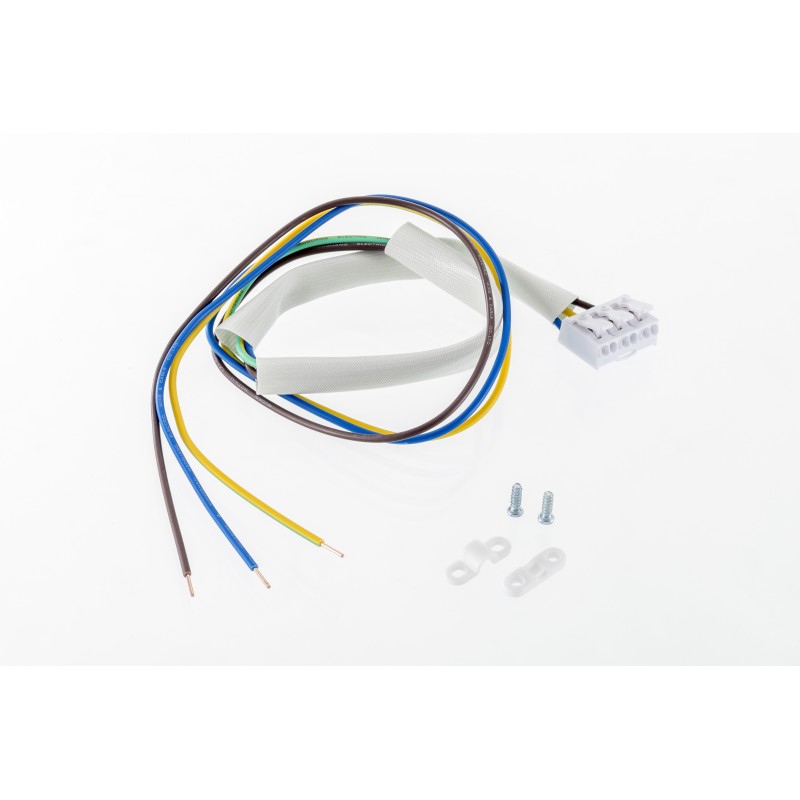

| through-wiring | available as accessory |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1200 x 90 x 80 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Lichtstrom | 5400 lm |
| Leistung | 39 W |
| light output | 138 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 24.4 / 25.6 |
| Lifetime L70B50 (@Ta 25°C) | 106688 h |
| Service life L80B50 (@Ta 25°C) | 70100 h |
| Lifetime L90B50 (@Ta 25°C) | 37740 h |
| Lifetime L70B10 (@Ta 25°C) | 81250 h |
| Lifetime L80B10 (@Ta 25°C) | 54382 h |
| Lifetime L90B10 (@Ta 25°C) | 30684 h |
| Lifetime L70B50 (@Ta max) | 72800 h |
| Lifetime L80B50 (@Ta max) | 47810 h |
| Lifetime L90B50 (@Ta max) | 25766 h |
| Circuit breaker B16A | 30 Leuchten |
| Circuit breaker C16A | 50 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Energy efficiency class of light source | D |
Tender text
Configurable Diffuser luminaire LUNA PRO 1200mm PCO 1x39W 120° 5400lm 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting. Item number: 5291014 GTIN: 4018098326649 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1200mm x 90mm x 80mm; Diameter: mm
