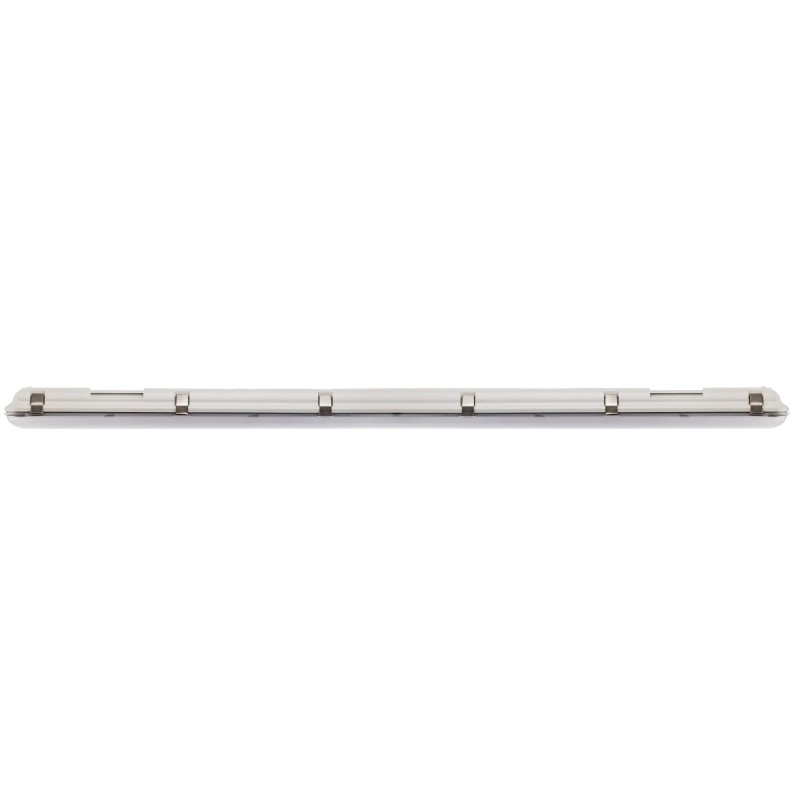

5291019 LUNA PRO DALI 1200mm PCO 1x39W 120° 5400lm
LUNA PRO DALI 1200mm PCO 1x39W 120° 5400lm, 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting.
- Versatile and configurable diffuser light
- Easy, quick component replacement thanks to two-part housing
- Various through-wiring & emergency lighting battery possible
- Ceiling, pendant and horizontal wall mounting, mounting rail installation
- Ideally suited for parking garages
- Ideal for existing installations thanks to variable mounting distances and matching lumen packages
technical data
| Dimensions (L x W x H) | 1200 x 90 x 80 mm |
|---|---|
| Luminous flux | 5400 lm |
| Performance | 39 W |
| Luminous efficacy | 138 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | available as an accessory |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1200 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 24.4 / 25.6 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 106688 h |
| Lifetime L80B50 (@Ta 25°C) | 70100 h |
| Lifetime L90B50 (@Ta 25°C) | 37740 h |
| Lifetime L70B10 (@Ta 25°C) | 81250 h |
| Lifetime L80B10 (@Ta 25°C) | 54382 h |
| Lifetime L90B10 (@Ta 25°C) | 30684 h |
| Lifetime L70B50 (@Ta max) | 72800 h |
| Lifetime L80B50 (@Ta max) | 47810 h |
| Lifetime L90B50 (@Ta max) | 25766 h |
| Line protection B16A | 22 Luminaires |
| Line protection C16A | 36 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 5291019NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Configurable Diffuser luminaire LUNA PRO DALI 1200mm PCO 1x39W 120° 5400lm 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting. Item number: 5291019 GTIN: 4018098326694 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1200mm x 90mm x 80mm; Diameter: mm
