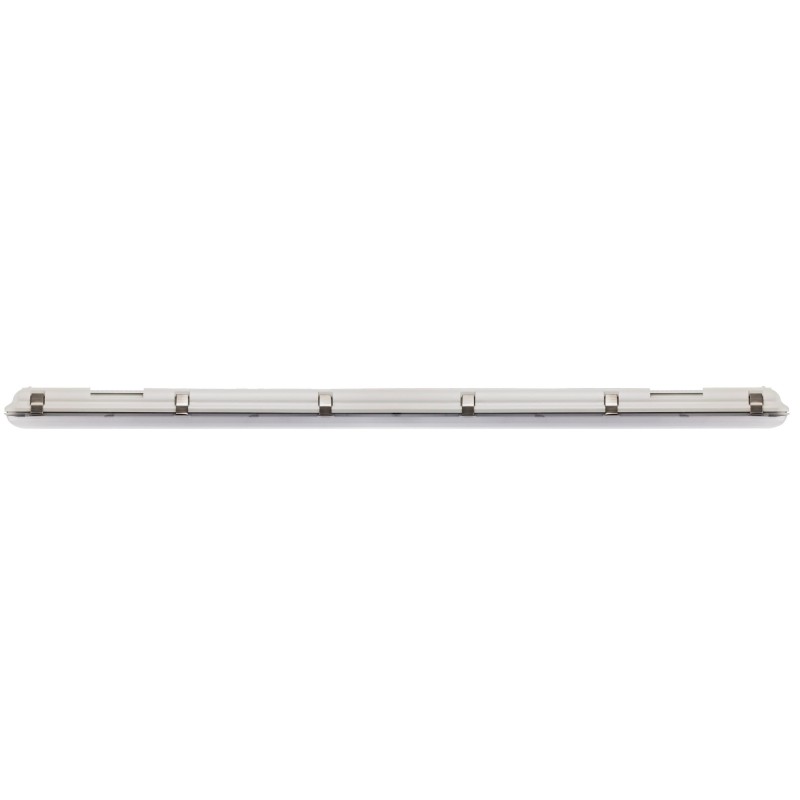

5291115 LUNA PRO INDUSTRY 1500mm PCO 1x36W 120° 6500lm
LUNA PRO INDUSTRY 1500mm PCO 1x36W 120° 6500lm, 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting.
- versatile and configurable diffuser luminaire
- easy, fast component replacement thanks to two-part housing
- various through-wiring & emergency lighting battery possible
- ceiling, pendant and horizontal wall mounting, trunking mounting
- ideally suited for multi-storey car parks
- ideal for existing installations thanks to variable mounting distances and matching lumen packages
- even longer service life, higher temperatures, higher luminous flux levels thanks to industrial components
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1500 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | available as accessory |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1500 x 90 x 80 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 6500 lm |
| Leistung | 36 W |
| Lichtausbeute | 181 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 24.3 / 25.4 |
| Lebensdauer L70B50 (@Ta 25°C) | 183870 h |
| Lebensdauer L80B50 (@Ta 25°C) | 115286 h |
| Lebensdauer L90B50 (@Ta 25°C) | 54955 h |
| Lebensdauer L70B10 (@Ta 25°C) | 164316 h |
| Lebensdauer L80B10 (@Ta 25°C) | 103345 h |
| Lebensdauer L90B10 (@Ta 25°C) | 49565 h |
| Lebensdauer L70B50 (@Ta max) | 185282 h |
| Lebensdauer L80B50 (@Ta max) | 116997 h |
| Lebensdauer L90B50 (@Ta max) | 56765 h |
| Stoßspannungsfestigkeit L/N-PE | 4.0 kV |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 32 |
| Leitungsschutz C16A | 53 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Configurable Diffuser luminaire LUNA PRO INDUSTRY 1500mm PCO 1x36W 120° 6500lm 4000K, class I, without TW. Versatile LED moisture-proof diffuser luminaire made of impact-resistant polycarbonate (IK08) with quick installation and integrated LED support. Expandable as XLS series, with Bluetooth and Casambi control. Suitable for ceiling, pendant and wall mounting. Item number: 5291115 GTIN: 4018098326755 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: available as accessory; Dimensions: LxWxH: 1500mm x 90mm x 80mm; Diameter: mm
