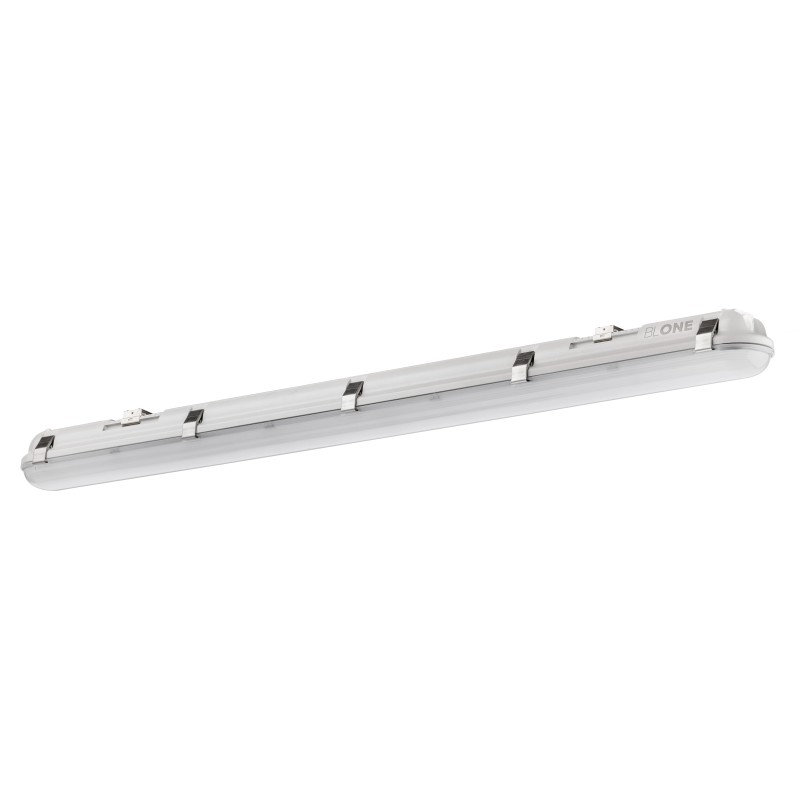

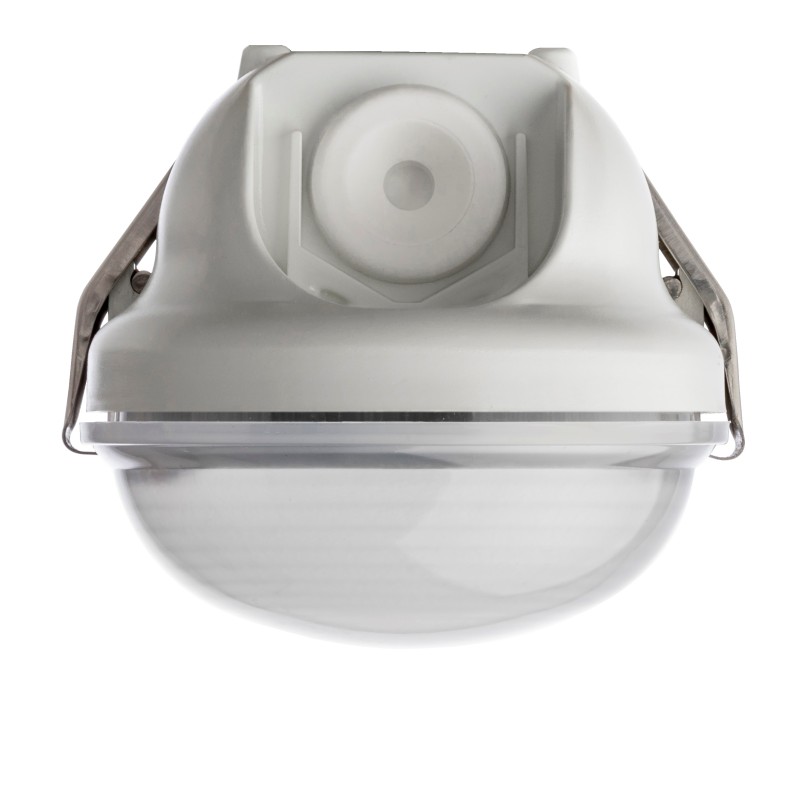

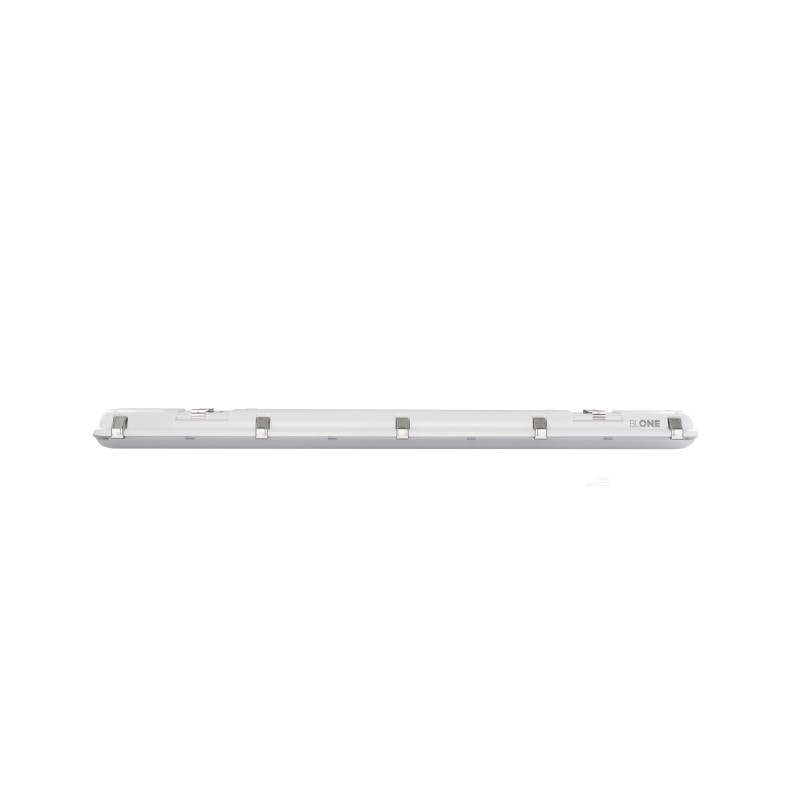

5800225865 BL ONE 1500mm PCO 1x25-42W 115° 3800-6500lm
BL ONE 1500mm PCO 1x25/31/36/42W 115° 3800/4900/5800/6500lm, 6500K, class I, without TW. The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities.
- Light for professionals made from recycled materials
- Suitable for industrial use.
- BEG eligible
- 5-year guarantee.
- DALI, sensor, 5x2.5mm² TW available
- up to 180lm/W and up to 98% REMADE score
- Dip switch for multilumen
technical data
| Beam angle | 115 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1500 mm |
| Multi-Lumen (EN) | TRUE |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Dimensions (L x W x H) | 1500 x 90 x 80 mm |
| Dimmable/Controllable | Multilumen |
| temperature range | -20 … +45 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 45 °C |
| luminous flux | 3800 lm 4900 lm 5800 lm 6500 lm |
| Power | 25 W 31 W 36 W 42 W |
| light output | 155 lm/W |
| Colour Temperature | 6500 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 27.3 / 24.4 |
| Lifetime L70B50 (@Ta 25°C) | 242470 h |
| Service life L80B50 (@Ta 25°C) | 155750 h |
| Lifetime L90B50 (@Ta 25°C) | 79260 h |
| Lifetime L70B10 (@Ta 25°C) | 210974 h |
| Lifetime L80B10 (@Ta 25°C) | 135951 h |
| Lifetime L90B10 (@Ta 25°C) | 69776 h |
| Lifetime L70B50 (@Ta max) | 206548 h |
| Lifetime L80B50 (@Ta max) | 131526 h |
| Lifetime L90B50 (@Ta max) | 65430 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 98 % |
| Energy efficiency class of light source | B |
| Circuit breaker B16A | 32 |
| Circuit breaker C16A | 53 |
| Emergency lighting suitability | no |
| Warranty | 5 Years |
Tender text
Sustainable Diffuser luminaire BL ONE 1500mm PCO 1x25/31/36/42W 115° 3800/4900/5800/6500lm 6500K, class I, without TW. The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities. Item number: 5800225865 GTIN: 4018098457206 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PCr white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1500mm x 90mm x 80mm; Diameter: mm
