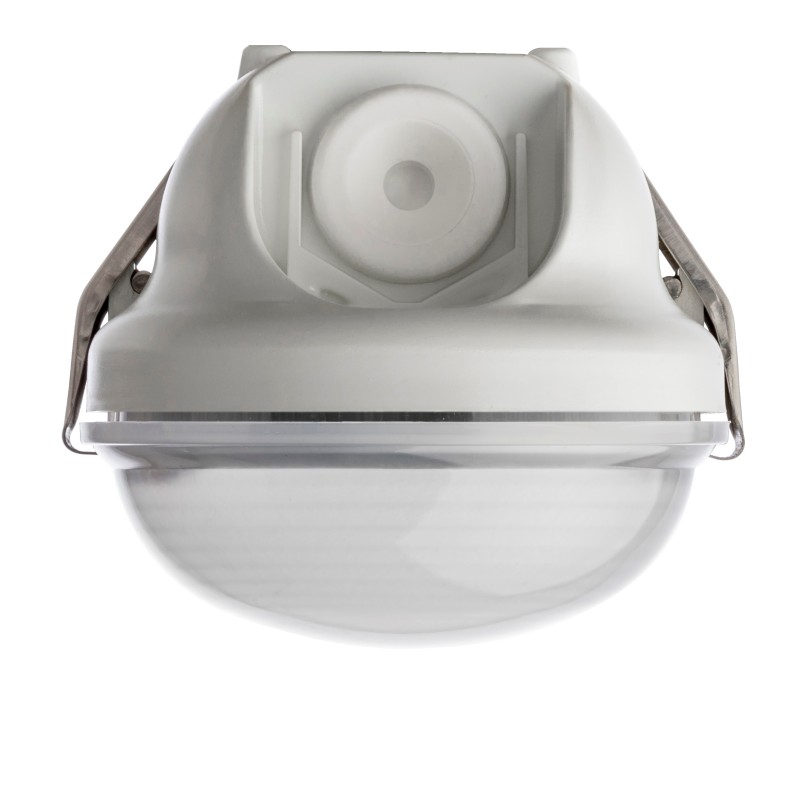

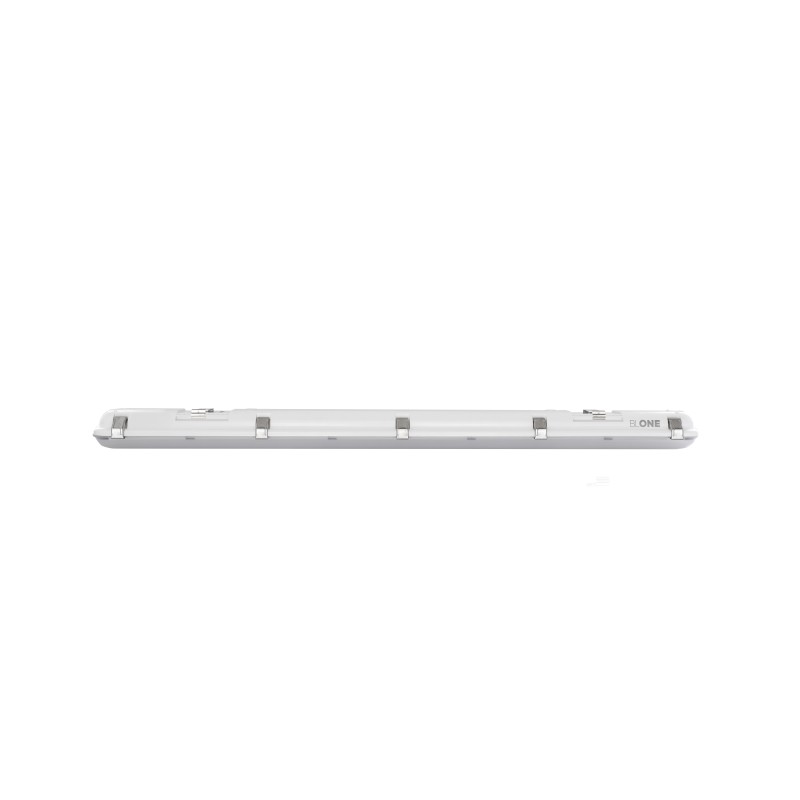

5852234 BL ONE SENSOR 1200mm PCO 1x33-52W 115° 5400-8400lm
BL ONE SENSOR 1200mm PCO 1x33/39/45/52W 115° 5400/7000/7900/8400lm, 4000K, class I, with TW 4x1,5mm². The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities.
- Light for professionals made from recycled materials
- Suitable for industrial use.
- BEG eligible
- 5-year guarantee.
- DALI, sensor, 5x2.5mm² TW available
- up to 180lm/W and up to 98% REMADE score
- Dip switch for multilumen
technical data
| Ausstrahlwinkel | 115 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1200 mm |
| Multi-Lumen (EN) | Yes |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 4x1.5 |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1200 x 90 x 80 mm |
| Dimmable/Controllable | Multilumen |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 5400 lm 7000 lm 7900 lm 8400 lm |
| Leistung | 33 W 39 W 45 W 52 W |
| Lichtausbeute | 162 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 28.9 / 26.0 |
| Lebensdauer L70B50 (@Ta 25°C) | 173761 h |
| Lebensdauer L80B50 (@Ta 25°C) | 109526 h |
| Lebensdauer L90B50 (@Ta 25°C) | 51875 h |
| Lebensdauer L70B10 (@Ta 25°C) | 145463 h |
| Lebensdauer L80B10 (@Ta 25°C) | 91532 h |
| Lebensdauer L90B10 (@Ta 25°C) | 43926 h |
| Lebensdauer L70B50 (@Ta max) | 173761 h |
| Lebensdauer L80B50 (@Ta max) | 109526 h |
| Lebensdauer L90B50 (@Ta max) | 51875 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| REMADE Score | 98 % |
| Energieeffizienzklasse Lichtquelle | B |
| Sensorerfassungsbereich | 5 m |
| Leitungsschutz B16A | 21 |
| Leitungsschutz C16A | 35 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Sustainable Diffuser luminaire BL ONE SENSOR 1200mm PCO 1x33/39/45/52W 115° 5400/7000/7900/8400lm 4000K, class I, with TW 4x1,5mm². The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities. Item number: 5852234 GTIN: 4018098441489 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PCr white; 220–240V 50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 4x1.5; Dimensions: LxWxH: 1200mm x 90mm x 80mm; Diameter: mm
