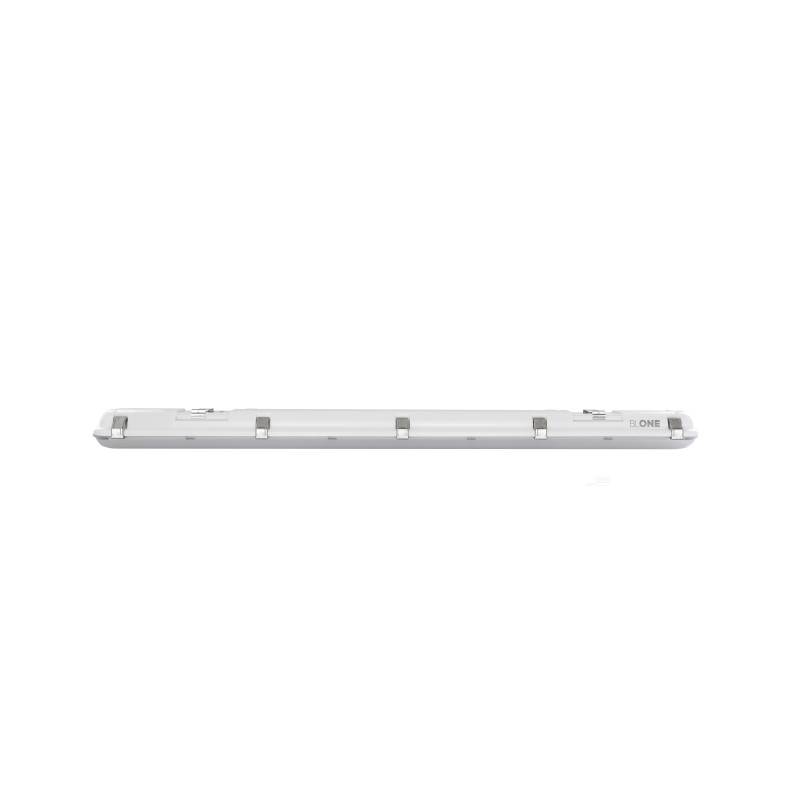

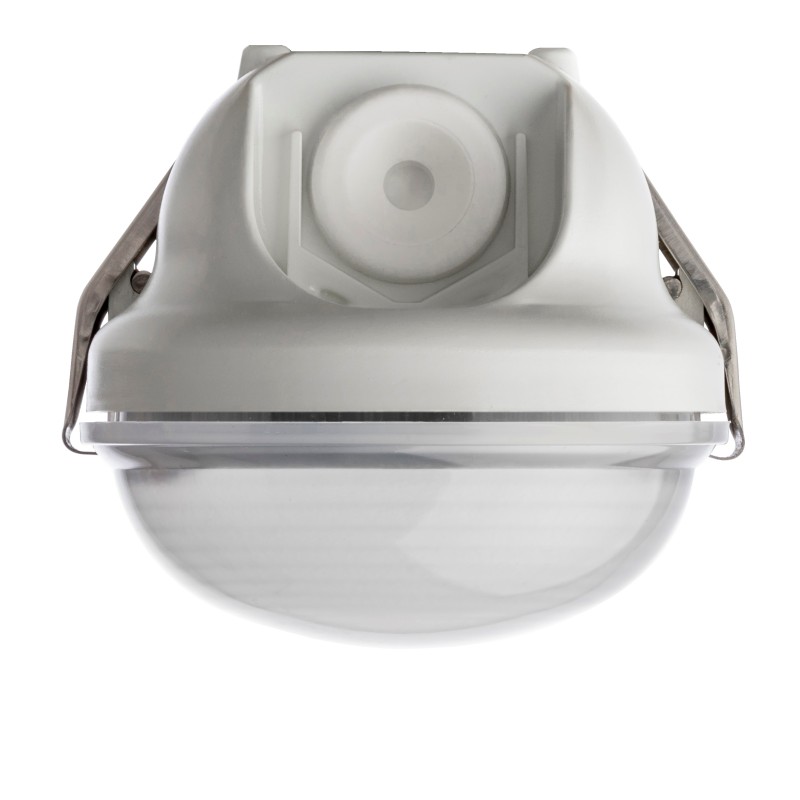

5880129 BL ONE DALI 1200mm PCO 1xW 115° lm
BL ONE DALI 1200mm PCO 1xW 115° lm, 4000K, class I, with TW 5x2,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 98% recycled material. The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities.
- Light for professionals made from recycled materials
- Suitable for industrial use.
- BEG eligible
- 5-year guarantee.
- DALI, sensor, 5x2.5mm² TW available
- up to 180lm/W and up to 98% REMADE score
technical data
| Dimensions (L x W x H) | 1200 x 90 x 80 mm |
|---|---|
| Luminous flux | 5400 lm |
| Performance | 38 W |
| Luminous efficacy | 142 lm/W |
| Color temperature | 4000 K |
| Beam angle | 115 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1200 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 27.5 / 24.6 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +40 °C |
| Lifetime L70B50 (@Ta 25°C) | 242019 h |
| Lifetime L80B50 (@Ta 25°C) | 156442 h |
| Lifetime L90B50 (@Ta 25°C) | 80957 h |
| Lifetime L70B10 (@Ta 25°C) | 217363 h |
| Lifetime L80B10 (@Ta 25°C) | 140345 h |
| Lifetime L90B10 (@Ta 25°C) | 72366 h |
| Lifetime L70B50 (@Ta max) | 217351 h |
| Lifetime L80B50 (@Ta max) | 139046 h |
| Lifetime L90B50 (@Ta max) | 71157 h |
| Line protection B16A | 31 Luminaires |
| Line protection C16A | 52 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 98 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 40 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Sustainable Diffuser luminaire BL ONE DALI 1200mm PCO 1xW 115° lm 4000K, class I, with TW 5x2,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 98% recycled material. The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities. Item number: 5880129 GTIN: 4018098441427 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PCr white; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1
