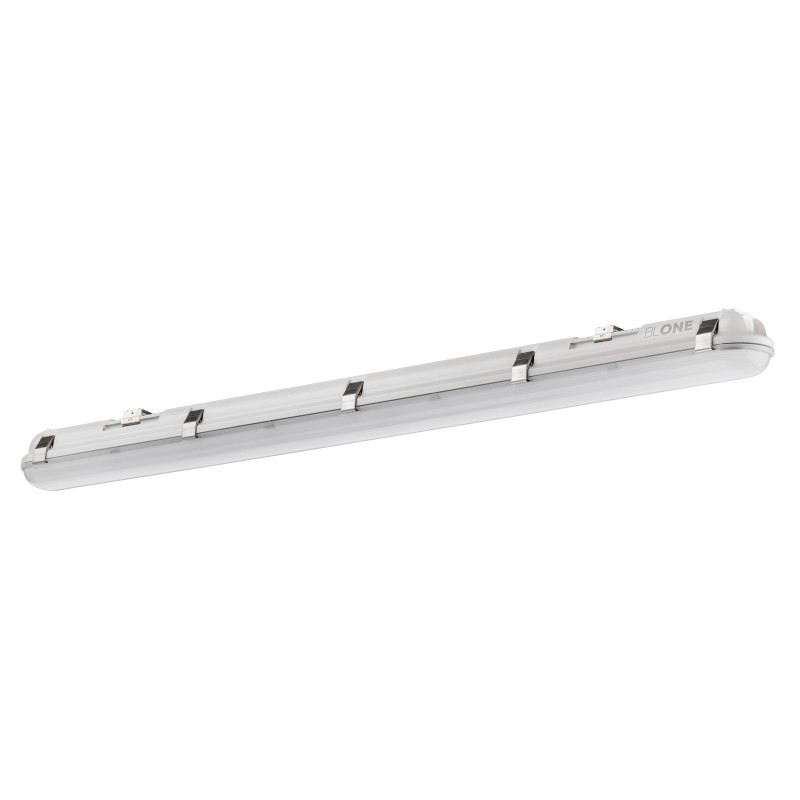

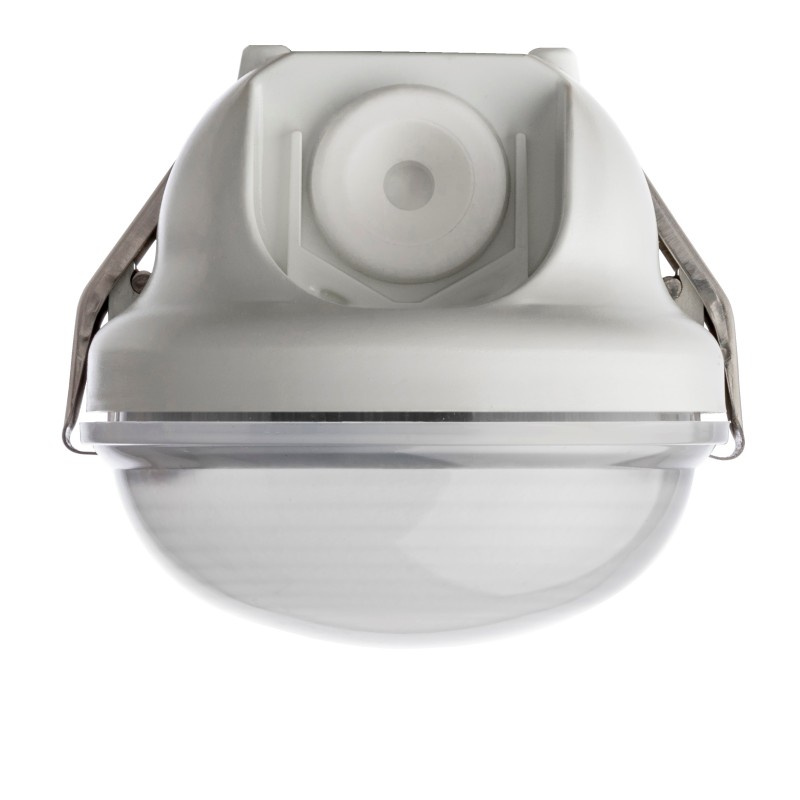

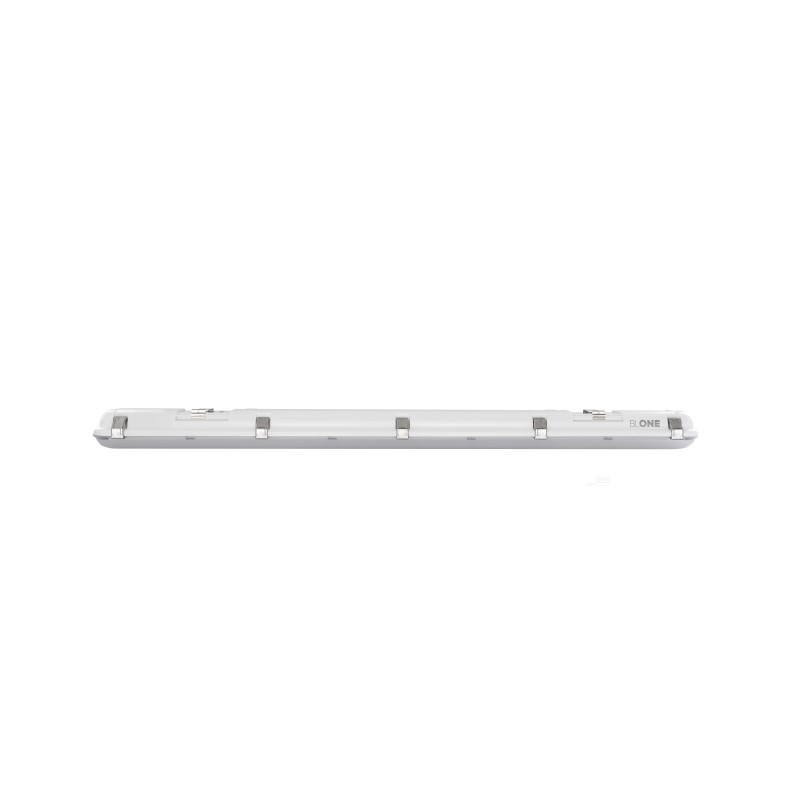

5880235 BL ONE 1500mm PCO 1x39-69W 115° 6500-11500lm
BL ONE 1500mm PCO 1x39/48/59/69W 115° 6500/8500/10200/11500lm, 4000K, class I, with TW 5x2,5mm². The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities.
- Light for professionals made from recycled materials
- Suitable for industrial use.
- BEG eligible
- 5-year guarantee.
- DALI, sensor, 5x2.5mm² TW available
- up to 180lm/W and up to 98% REMADE score
- Dip switch for multilumen
technical data
| Beam angle | 115 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 1500 mm |
| Multi-Lumen (EN) | TRUE |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 5x2.5 |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Dimensions (L x W x H) | 1500 x 90 x 80 mm |
| Dimmable/Controllable | Multilumen |
| temperature range | -20 … +35 °C |
| D marking | true |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| luminous flux | 6500 lm 8500 lm 10200 lm 11500 lm |
| Power | 39 W 48 W 59 W 69 W |
| light output | 167 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 29.2 / 26.4 |
| Lifetime L70B50 (@Ta 25°C) | 173761 h |
| Service life L80B50 (@Ta 25°C) | 109526 h |
| Lifetime L90B50 (@Ta 25°C) | 51875 h |
| Lifetime L70B10 (@Ta 25°C) | 145463 h |
| Lifetime L80B10 (@Ta 25°C) | 91532 h |
| Lifetime L90B10 (@Ta 25°C) | 43926 h |
| Lifetime L70B50 (@Ta max) | 173761 h |
| Lifetime L80B50 (@Ta max) | 109526 h |
| Lifetime L90B50 (@Ta max) | 51875 h |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 98 % |
| Energy efficiency class of light source | B |
| Circuit breaker B16A | 21 |
| Circuit breaker C16A | 35 |
| Emergency lighting suitability | no |
| Warranty | 5 Years |
Tender text
Sustainable Diffuser luminaire BL ONE 1500mm PCO 1x39/48/59/69W 115° 6500/8500/10200/11500lm 4000K, class I, with TW 5x2,5mm². The new generation BL ONE sets standards for damp-proof diffuser luminaires: environmentally friendly, made from up to 98% recycled material, robust, durable and versatile. With functions such as DALI control, integrated sensors and multi-lumen technology, it automatically adapts to the ambient conditions and saves energy. Ideal for industrial, commercial and public facilities. Item number: 5880235 GTIN: 4018098441564 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PCr white; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5; Dimensions: LxWxH: 1500mm x 90mm x 80mm; Diameter: mm
