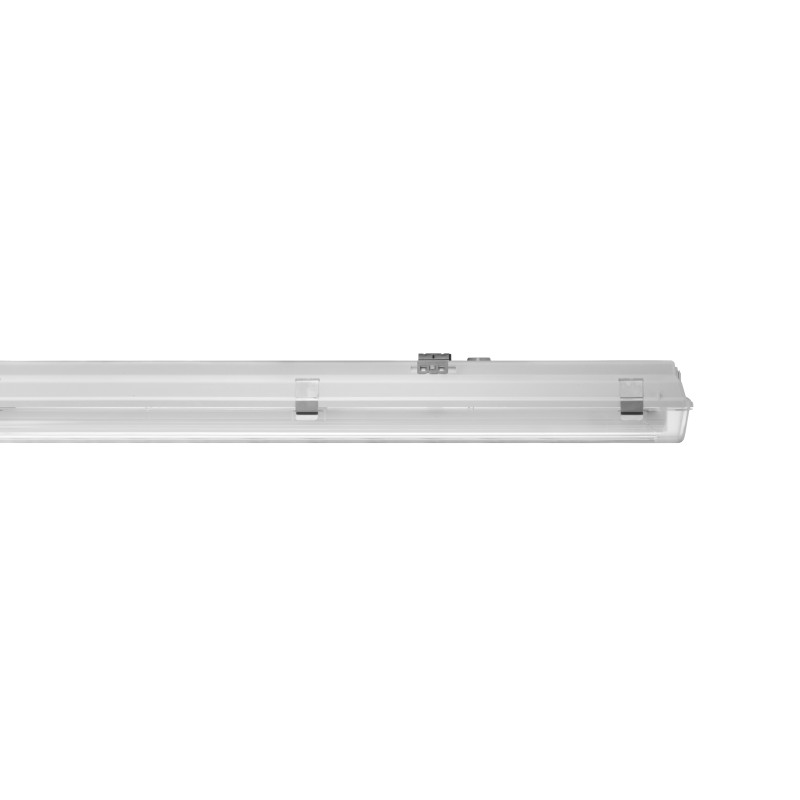

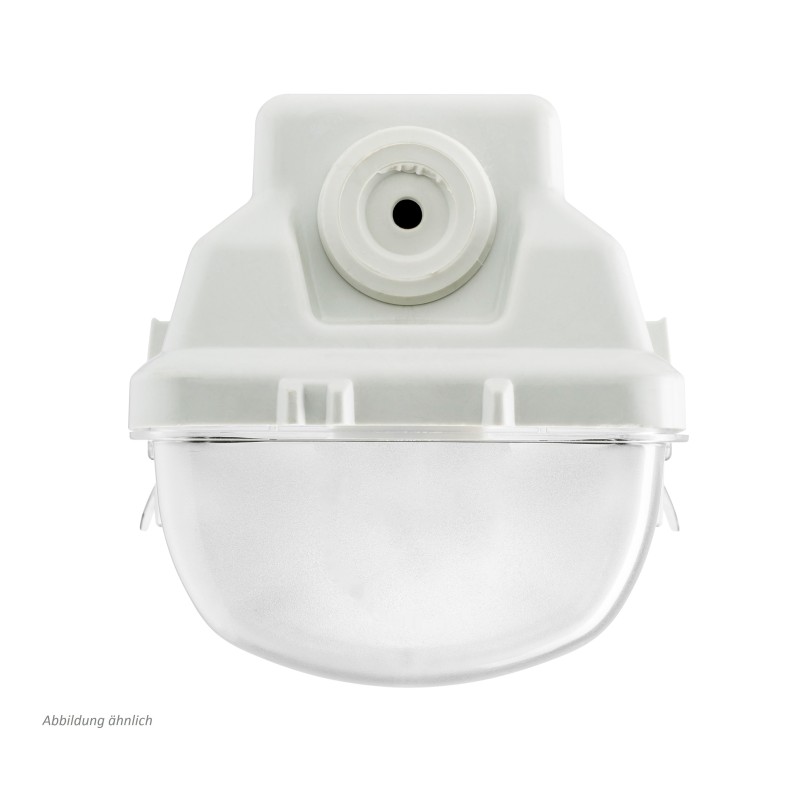

6106119 LUNA N RETRO 1278mm max. 1x25W PM
LUNA N RETRO 1278mm max. 1x25W PM, class II, without TW, for 1x LED illuminant 1200mm socket G13. Moisture-proof diffuser luminaire for T8 LED tubes. Ideal for transport companies. 5-year warranty. | Easy installation with PRACHT-CLAMP-SYSTEM. | Suitable for ceiling, pendant, and horizontal wall mounting.
- Proven LUNA diffuser luminaire for T8 LED tube technology
- Various through-wiring options available
- Ceiling, pendant, and horizontal wall mounting, trunking mounting
- Ideal for transport companies due to class II
technical data
| REACH (EN) | No |
|---|---|
| Marktkennzeichen | CE |
| Länge | 1278 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP66 |
| IK Schlagfestigkeit | IK02 |
| Nennlampenleistung | 25 W |
| Through-wiring | without |
| Outdoor area | Indoor area |
| Protection class | class II |
| Abmessungen (L x B x H) | 1278 x 86 x 98 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Surface-mounted light LUNA N RETRO 1278mm max. 1x25W PM class II, without TW, for 1x LED illuminant 1200mm socket G13. Moisture-proof diffuser luminaire for T8 LED tubes. Ideal for transport companies. 5-year warranty. | Easy installation with PRACHT-CLAMP-SYSTEM. | Suitable for ceiling, pendant, and horizontal wall mounting. Article Number: 6106119 GTIN: 4018098443810 Technical Details/Specifications: Cover made of PM - Polymethylmethacrylat; Housing made of GRP polyester grey; 220–240V 50/60 Hz; Energy efficiency class ; Number of lamps / LED rows: 1; IP66; Through-wiring in mm²: without; Dimensions: LxWxH: 1278mm x 86mm x 98mm; Diameter: mm
