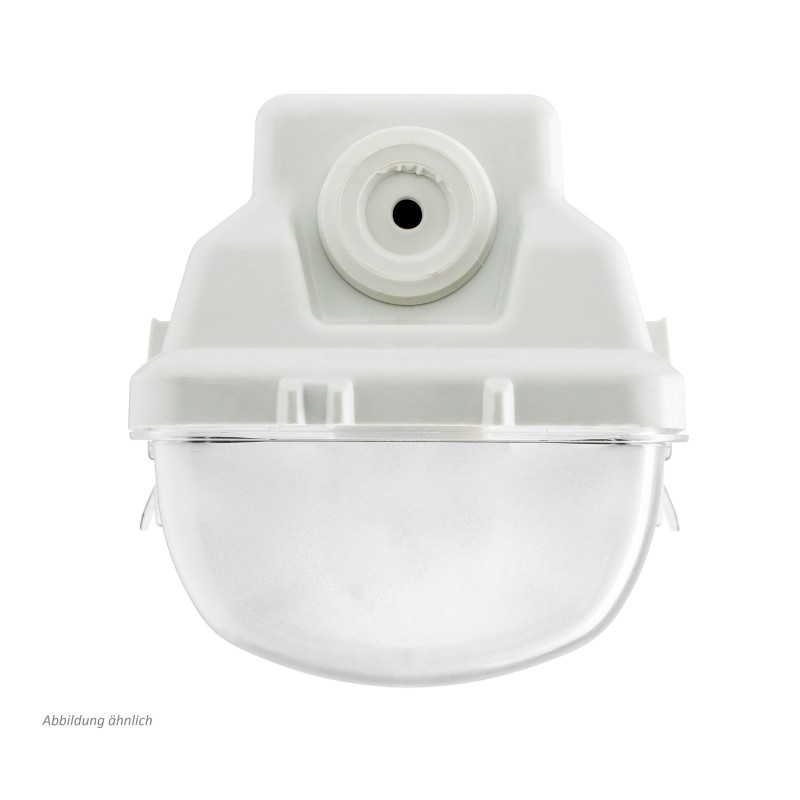

6106210 LUNA N RETRO 1578mm max. 2x32W PM
LUNA N RETRO 1578mm max. 2x32W PM, class II, without TW, for 2x LED illuminant 1500mm socket G13. Moisture-proof diffuser luminaire for T8 LED tubes. Ideal for transport companies. 5-year warranty. | Easy installation with PRACHT-CLAMP-SYSTEM. | Suitable for ceiling, pendant, support rail, and horizontal wall mounting.
- Proven LUNA diffuser luminaire for T8 LED tube technology
- Various through-wiring options possible
- Ceiling, pendant, and horizontal wall mounting, support rail mounting
- Ideal for transport companies due to class II
technical data
| Dimensions (L x W x H) | 1578 x 112 x 102 mm |
|---|---|
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Indoor area |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1578 mm |
| IP protection class | IP66 |
| IK Impact resistance | IK02 |
| Protection class | SK II |
| Temperature range | -20 ... +35 °C |
| Rated voltage / frequency | 220-240V 50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Nennlampenleistung | 32 W |
| Dimming/Control | Fixed Output |
Tender text
Surface-mounted light LUNA N RETRO 1578mm max. 2x32W PM class II, without TW, for 2x LED illuminant 1500mm socket G13. Moisture-proof diffuser luminaire for T8 LED tubes. Ideal for transport companies. 5-year warranty. | Easy installation with PRACHT-CLAMP-SYSTEM. | Suitable for ceiling, pendant, support rail, and horizontal wall mounting. Article Number: 6106210 GTIN: 4018098444046 Technical Details/Specifications: Cover made of PM - Polymethylmethacrylat; Housing made of GRP polyester grey; 220–240V 50/60 Hz; Energy efficiency class ; Number of lamps / LED rows: 2; IP66; Through-wiring in mm²: without; Dimensions: LxWxH: 1578mm x 112mm x 102mm; Diameter: mm
