5281214 GECKO L 2-22 1277mm PCO 1x36W 120° 5500lm
GECKO L 2-22 1277mm PCO 1x36W 120° 5500lm, 4000K, class I, without TW. The GECKO is an explosion-proof LED diffuser luminaire made of impact-resistant polycarbonate, Ex-certified for zones 1/21 and 2/22. Ideal for hazardous areas, it offers high safety and efficiency. IP66, IK10.
- Ex-proof
- ATEX and IECEx certified
- For zone 2/22
- Limited surface temperature thanks to efficient LED technology
- Stable due to opalized polycarbonate (IK 10)
- damp proof IP66

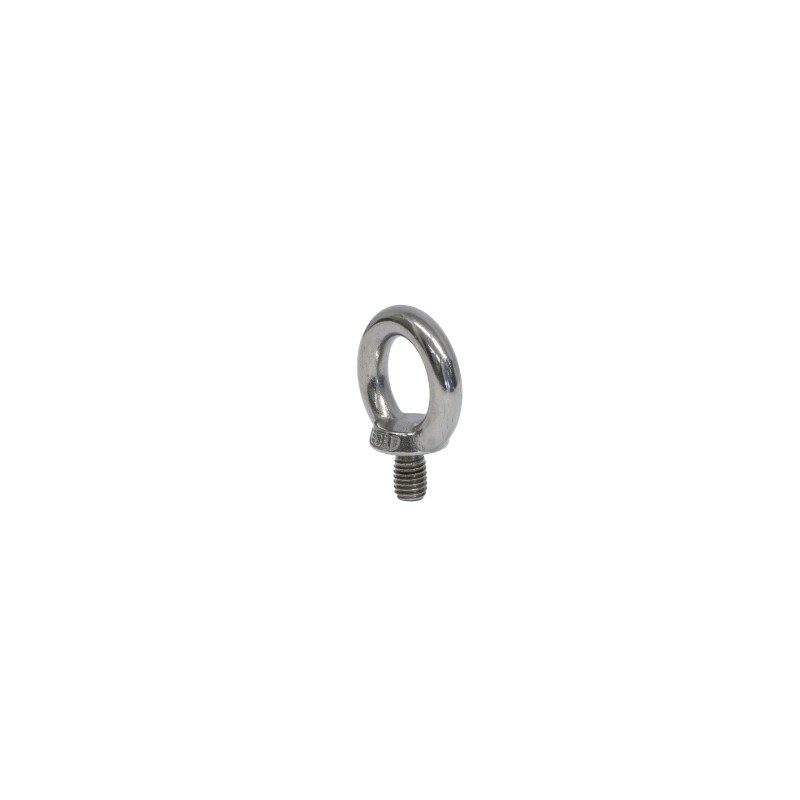

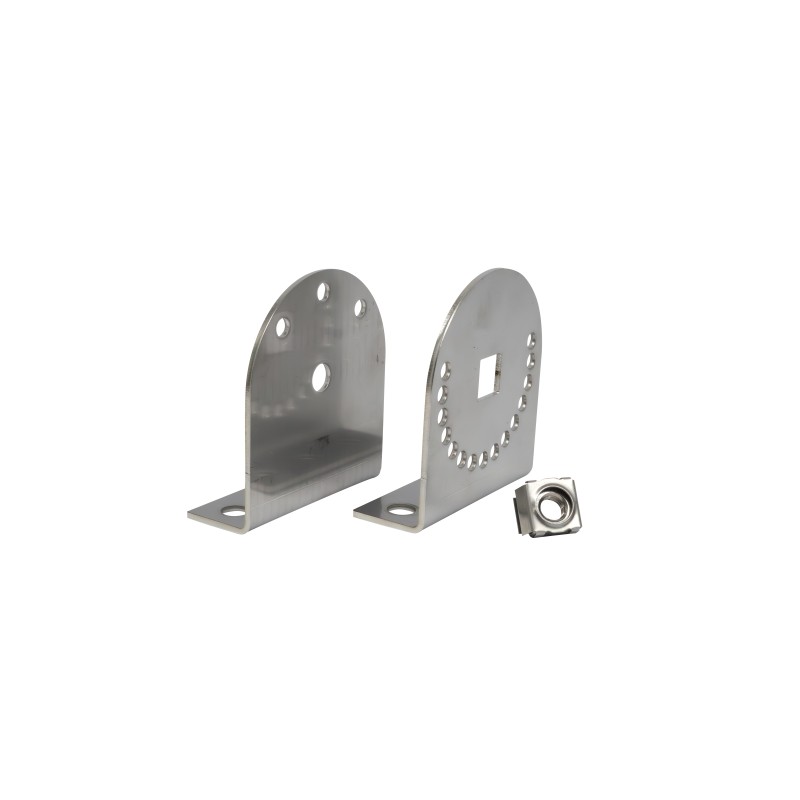

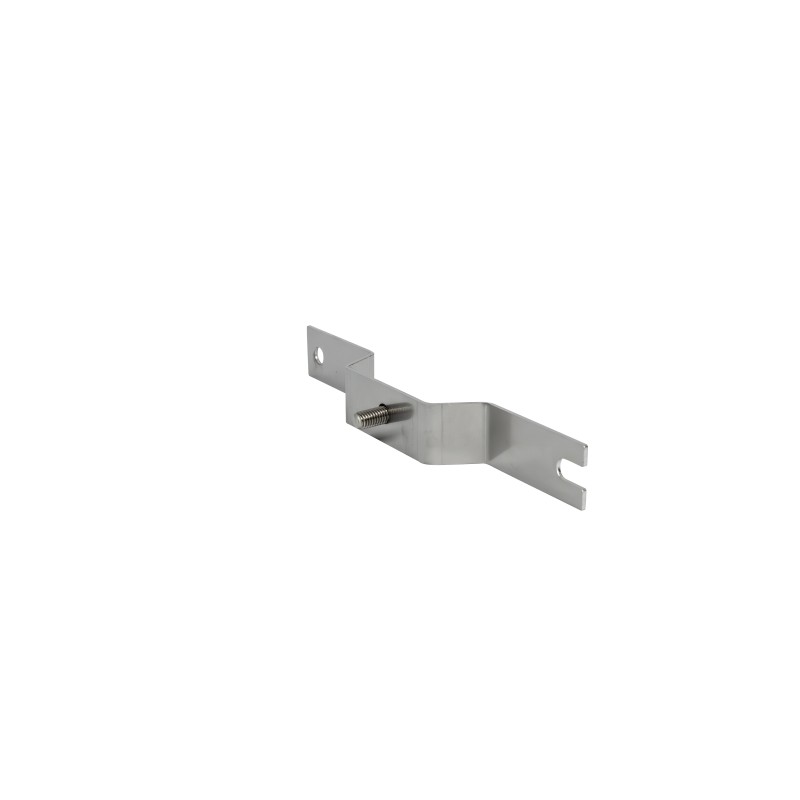

- Customizable with mounting accessories (ceiling, pendant, pipe and rotatable wall mounting possible)
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1277 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP66 |
| IK Schlagfestigkeit | IK10 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Indoor area Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1277 x 174 x 102 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -30 … +55 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | with limitation |
| Umgebungstemperatur (min) | -30 °C |
| Umgebungstemperatur (max) | 55 °C |
| Lichtstrom | 5500 lm |
| Leistung | 36 W |
| Lichtausbeute | 153 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 22.5 / 23.2 |
| Lebensdauer L70B50 (@Ta 25°C) | 245604 h |
| Lebensdauer L80B50 (@Ta 25°C) | 154282 h |
| Lebensdauer L90B50 (@Ta 25°C) | 73730 h |
| Lebensdauer L70B10 (@Ta 25°C) | 197535 h |
| Lebensdauer L80B10 (@Ta 25°C) | 124487 h |
| Lebensdauer L90B10 (@Ta 25°C) | 59851 h |
| Lebensdauer L70B50 (@Ta max) | 183870 h |
| Lebensdauer L80B50 (@Ta max) | 115286 h |
| Lebensdauer L90B50 (@Ta max) | 54955 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 12 |
| Leitungsschutz C16A | 21 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
EX-protected Explosion-proof luminaire GECKO L 2-22 1277mm PCO 1x36W 120° 5500lm 4000K, class I, without TW. The GECKO is an explosion-proof LED diffuser luminaire made of impact-resistant polycarbonate, Ex-certified for zones 1/21 and 2/22. Ideal for hazardous areas, it offers high safety and efficiency. IP66, IK10. Item number: 5281214 GTIN: 4018098409953 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of GRP polyester grey; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66; Through-wiring in mm²: without; Dimensions: LxWxH: 1277mm x 174mm x 102mm; Diameter: mm
