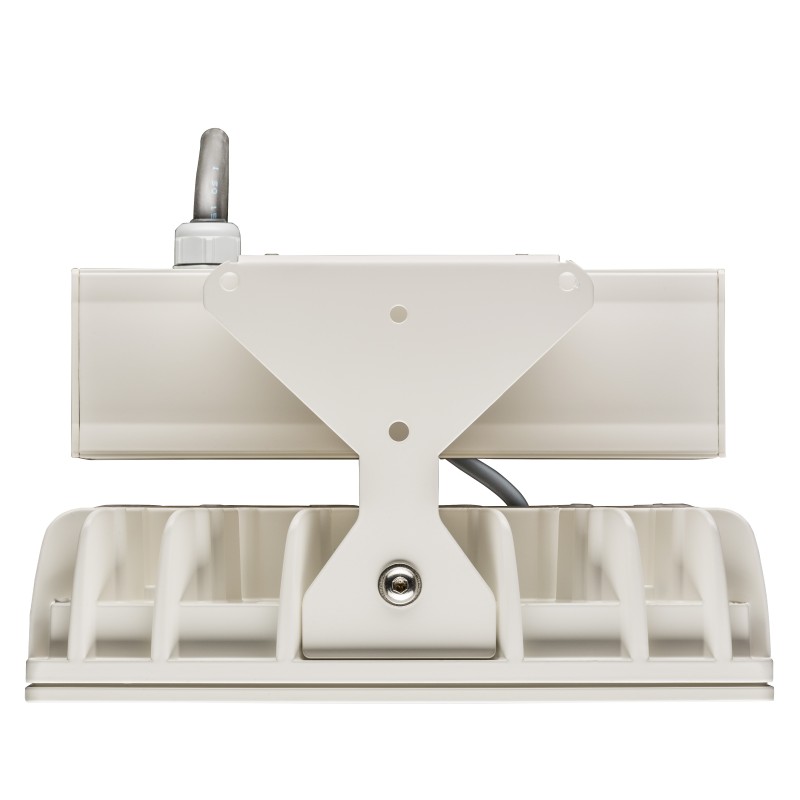

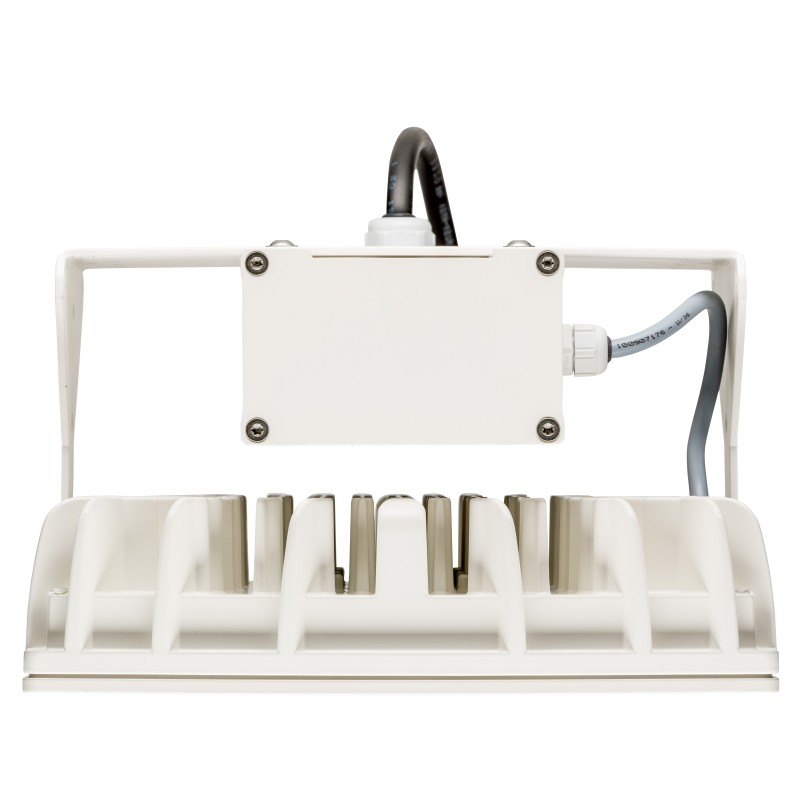

86050221 QUADRONIUS SPORT DALI 0288mm PCp 1x137W 095° 19000lm
QUADRONIUS SPORT DALI 0288mm PCp 1x137W 095° 19000lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting.
- Configurable highbay downlight high requirements (light color, beam characteristics and resistance)
- available for high and low temperatures (-40 to +75° degrees), swimming pools, food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- Ideal for sports halls, ball-proof
technical data
| Ausstrahlwinkel | 95 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 288 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK10 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 288 x 288 x 227 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -40 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 19000 lm |
| Leistung | 137 W |
| Lichtausbeute | 139 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 29.2 / 29.3 |
| Lebensdauer L70B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B50 (@Ta 25°C) | 70000 h |
| Lebensdauer L90B50 (@Ta 25°C) | 33000 h |
| Lebensdauer L70B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B10 (@Ta 25°C) | 64000 h |
| Lebensdauer L90B10 (@Ta 25°C) | 34000 h |
| Lebensdauer L70B50 (@Ta max) | 65000 h |
| Lebensdauer L80B50 (@Ta max) | 41000 h |
| Lebensdauer L90B50 (@Ta max) | 19000 h |
| Stoßspannungsfestigkeit L/N-PE | 10.0 kV |
| Energieeffizienzklasse Lichtquelle | E |
| Leitungsschutz B16A | 5 |
| Leitungsschutz C16A | 7 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
More ball-proof High Bay QUADRONIUS SPORT DALI 0288mm PCp 1x137W 095° 19000lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting. Item number: 86050221 GTIN: 4018098327424 Technical details/specification: Cover made of PCp - Polycarbonate prismiert; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class E; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 288mm x 288mm x 227mm; Diameter: mm
