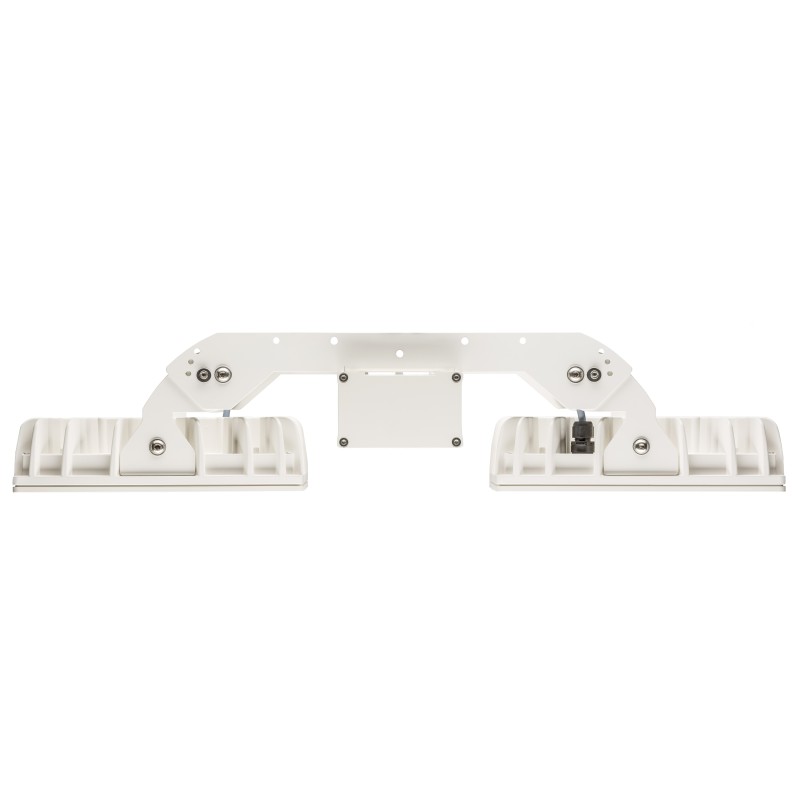

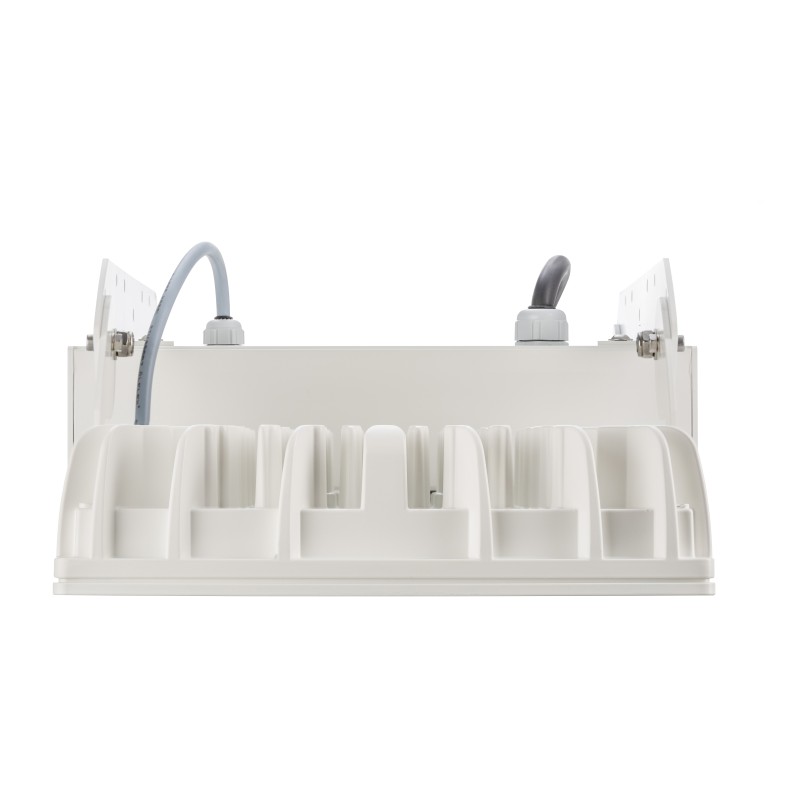

86230701 QUADRONIUS FOOD 0605mm PC 2x137W 065° 40000lm
QUADRONIUS FOOD 0605mm PC 2x137W 065° 40000lm, 4000K, class I, without TW, RAL 9010. LED spotlight with impact-resistant, clear polycarbonate cover lens, hygienic, low-maintenance and dust-protected. Housing made of die-cast aluminum, integrated converter, easy installation thanks to wire pendant with quick adjustment and flexible mounting options.
- Configurable IFS highbay luminaire (light color, beam characteristics and resistance)
- available for high and low temperatures (-40 to +75° degrees), food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- e.g. ideal for areas with unpacked goods
technical data
| Beam angle | 65 ° |
|---|---|
| REACH (EN) | FALSE |
| market indicator | CE |
| length | 605 mm |
| Multi-Lumen (EN) | FALSE |
| IP protection class | IP66 |
| IK Impact resistance | IK10 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Dimensions (L x W x H) | 605 x 288 x 122 mm |
| Dimmable/Controllable | Fixed Output |
| temperature range | -30 … +45 °C |
| D marking | true |
| supply voltage | AC |
| Rated voltage / frequency | 220–240V 50/60 Hz |
| Vandalism protection | FALSE |
| Animal husbandry | not suitable |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 45 °C |
| luminous flux | 40000 lm |
| Power | 274 W |
| light output | 146 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 26.9 / 26.8 |
| Lifetime L70B50 (@Ta 25°C) | 100000 h |
| Service life L80B50 (@Ta 25°C) | 70000 h |
| Lifetime L90B50 (@Ta 25°C) | 33000 h |
| Lifetime L70B10 (@Ta 25°C) | 100000 h |
| Lifetime L80B10 (@Ta 25°C) | 64000 h |
| Lifetime L90B10 (@Ta 25°C) | 34000 h |
| Lifetime L70B50 (@Ta max) | 65000 h |
| Lifetime L80B50 (@Ta max) | 41000 h |
| Lifetime L90B50 (@Ta max) | 19000 h |
| Surge voltage resistance L/N-PE | 10.0 kV |
| certification mark | HACCP IFS |
| Energy efficiency class of light source | E |
| Circuit breaker B16A | 6 |
| Circuit breaker C16A | 11 |
| Emergency lighting suitability | no |
| Warranty | 5 Years |
Tender text
Food-certified High Bay QUADRONIUS FOOD 0605mm PC 2x137W 065° 40000lm 4000K, class I, without TW, RAL 9010. LED spotlight with impact-resistant, clear polycarbonate cover lens, hygienic, low-maintenance and dust-protected. Housing made of die-cast aluminum, integrated converter, easy installation thanks to wire pendant with quick adjustment and flexible mounting options. Item number: 86230701 GTIN: 4018098325376 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of Aluminium White RAL 9010; 220–240V 50/60 Hz; Energy efficiency class E; Number of light sources / LED rows: 2; IP66; Through-wiring in mm²: without; Dimensions: LxWxH: 605mm x 288mm x 122mm; Diameter: mm
