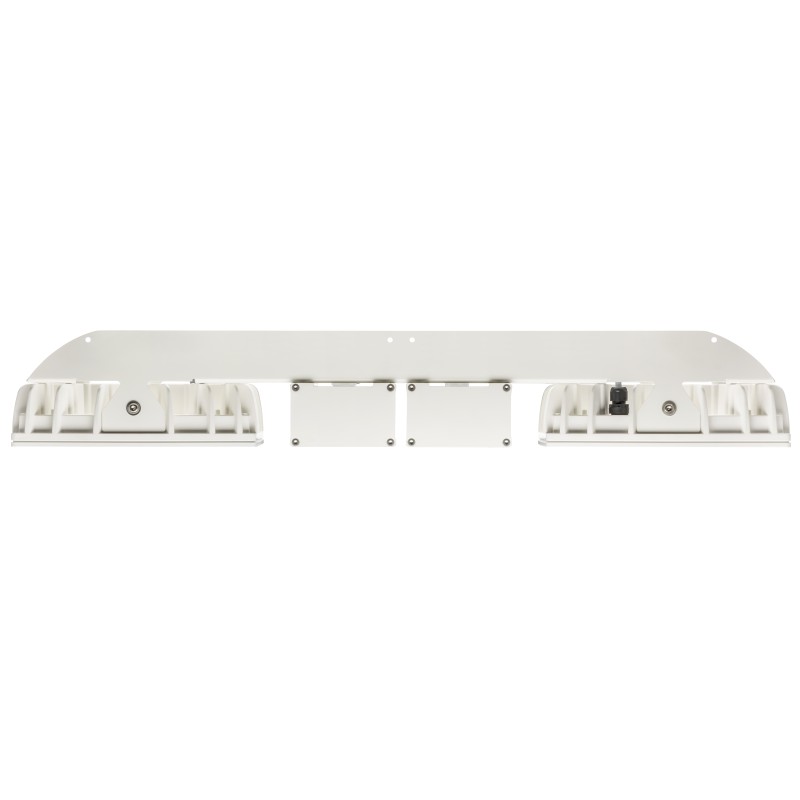

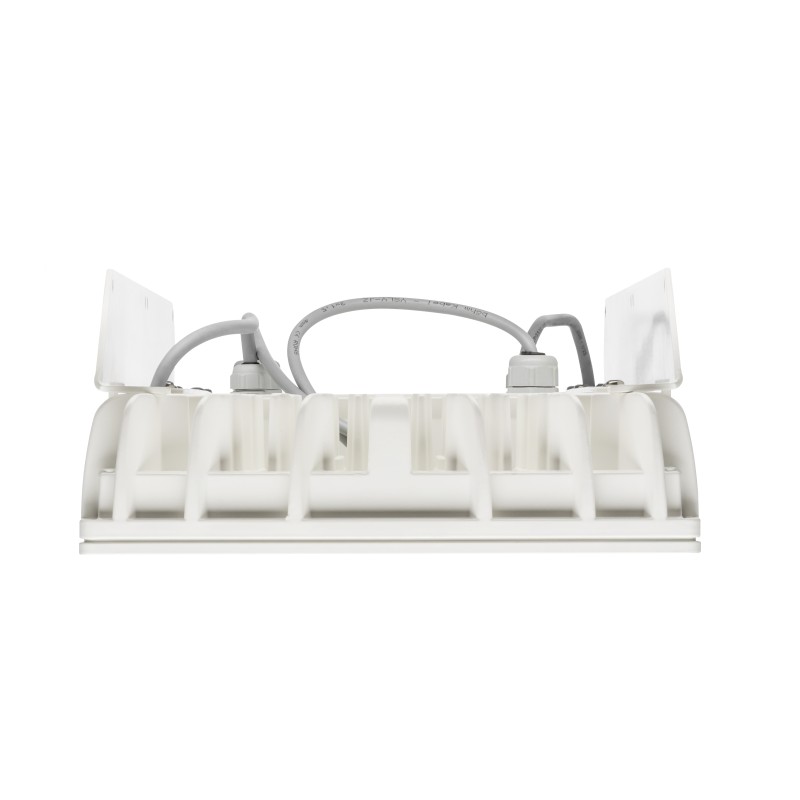

86380621 QUADRONIUS INDUSTRY DALI 0912mm ESG 2x134W 065° 29900lm
QUADRONIUS INDUSTRY DALI 0912mm ESG 2x134W 065° 29900lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting.
- Configurable highbay luminaire for high requirements (light color, beam characteristics and resistance)
- Available for high and low temperatures (-40 to +75° degrees), swimming pools, food industry & unprotected outdoor areas
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- Even longer service life & resistant to higher temperatures thanks to industrial components
technical data
| Ausstrahlwinkel | 65 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 912 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 912 x 288 x 135 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -40 … +50 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 50 °C |
| Lichtstrom | 29900 lm |
| Leistung | 268 W |
| Lichtausbeute | 112 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 22.1 / 22.1 |
| Lebensdauer L70B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L90B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L70B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L90B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L70B50 (@Ta max) | 100000 h |
| Lebensdauer L80B50 (@Ta max) | 100000 h |
| Lebensdauer L90B50 (@Ta max) | 100000 h |
| Stoßspannungsfestigkeit L/N-PE | 6.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 5 |
| Leitungsschutz C16A | 7 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
More durable High Bay QUADRONIUS INDUSTRY DALI 0912mm ESG 2x134W 065° 29900lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for demanding industrial applications at temperatures from -40°C to 50°C. Low-maintenance, with die-cast aluminum housing, integrated converter and quick plug-in system. Easy installation thanks to wire pendant with quick adjustment and optional mounting brackets for wall and ceiling mounting. Item number: 86380621 GTIN: 4018098267638 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 912mm x 288mm x 135mm; Diameter: mm
