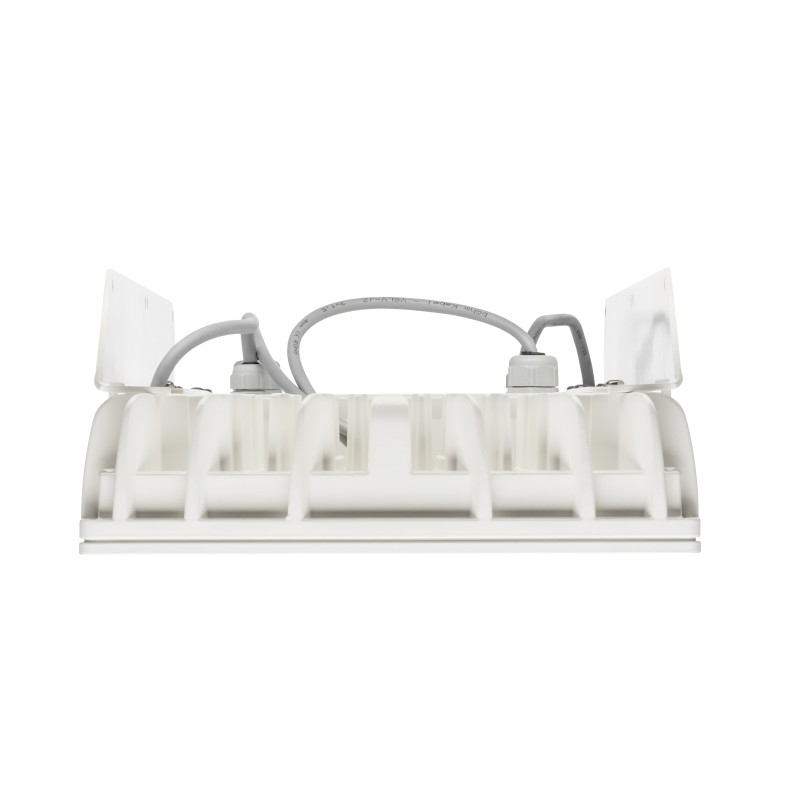

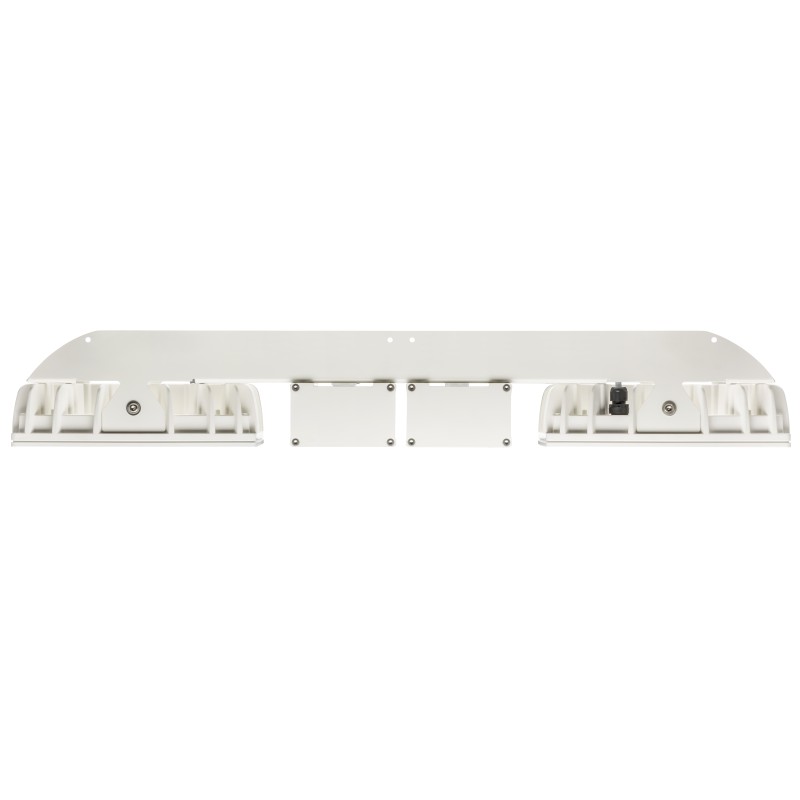

86790521 QUADRONIUS HT DALI 0912mm ESG 2x119W 110° 27100lm
QUADRONIUS HT DALI 0912mm ESG 2x119W 110° 27100lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for ambient temperatures up to 70°C, die-cast aluminium housing and integrated converter. Electrical connection via quick plug-in system, with ageing-resistant silicone seals and simple installation using pendant wire with quick adjustment.
- Configurable highbay luminaire (light color, beam characteristics and resistance)
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- DALI version
- Industrial components for long service life & optimized thermal management: high and low temperature -40 to +75 degrees.
technical data
| Ausstrahlwinkel | 110 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 912 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 912 x 288 x 135 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -40 … +70 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 70 °C |
| Lichtstrom | 27100 lm |
| Leistung | 238 W |
| Lichtausbeute | 114 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 28.5 / 28.5 |
| Lebensdauer L70B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L90B50 (@Ta 25°C) | 100000 h |
| Lebensdauer L70B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L80B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L90B10 (@Ta 25°C) | 100000 h |
| Lebensdauer L70B50 (@Ta max) | 100000 h |
| Lebensdauer L80B50 (@Ta max) | 100000 h |
| Lebensdauer L90B50 (@Ta max) | 34000 h |
| Stoßspannungsfestigkeit L/N-PE | 6.0 kV |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 5 |
| Leitungsschutz C16A | 7 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | No |
Tender text
More temperature resistant High Bay QUADRONIUS HT DALI 0912mm ESG 2x119W 110° 27100lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for ambient temperatures up to 70°C, die-cast aluminium housing and integrated converter. Electrical connection via quick plug-in system, with ageing-resistant silicone seals and simple installation using pendant wire with quick adjustment. Item number: 86790521 GTIN: 4018098264781 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 912mm x 288mm x 135mm; Diameter: mm
