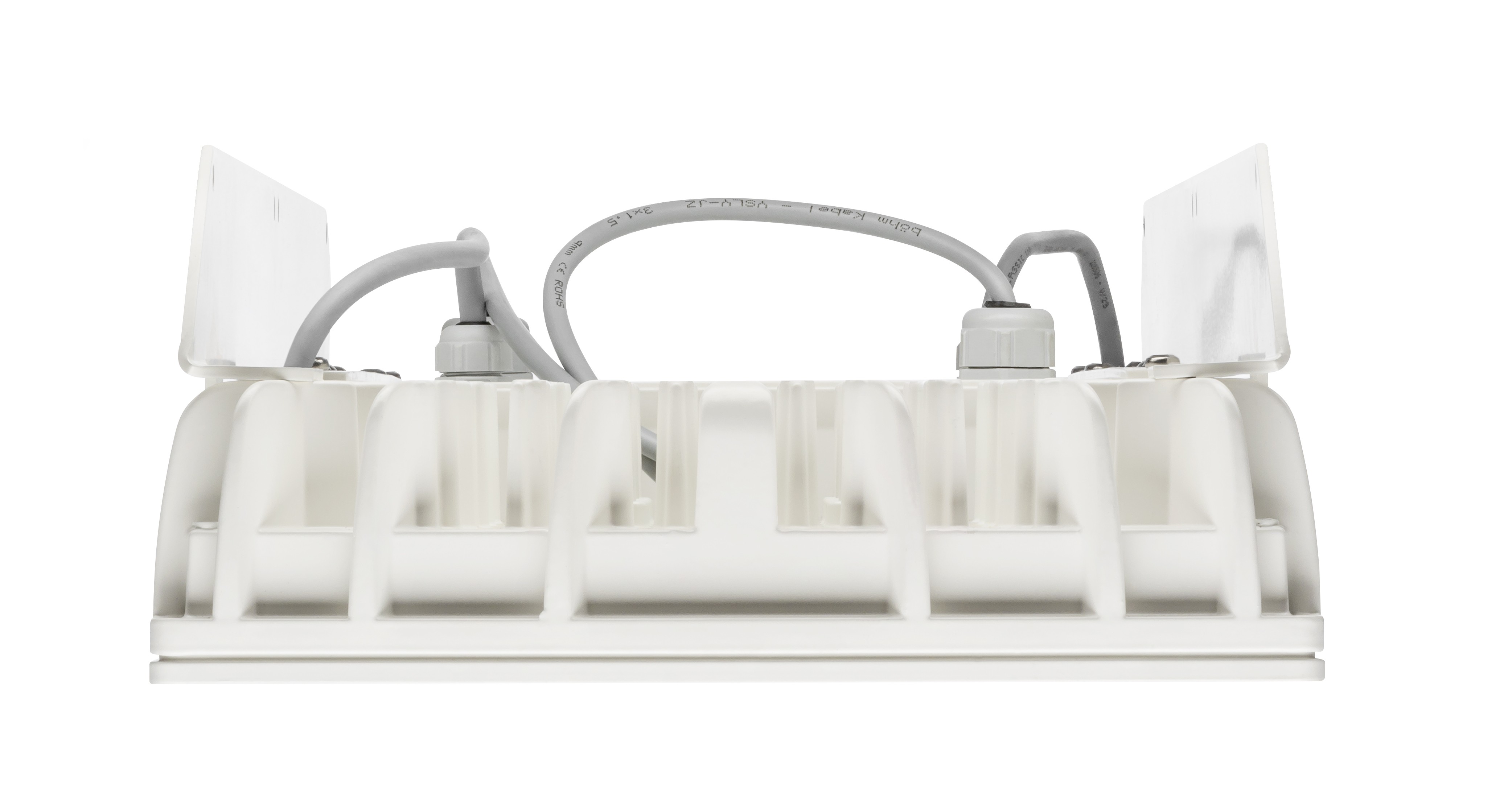

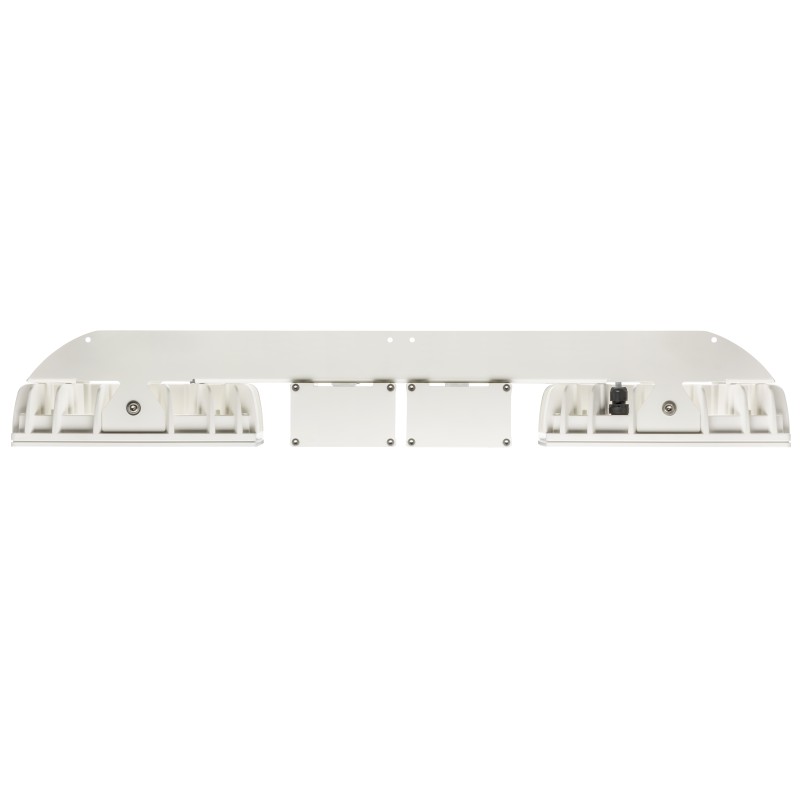

86890521 QUADRONIUS HT DALI 0912mm ESG 2x119W 040° 26200lm
QUADRONIUS HT DALI 0912mm ESG 2x119W 040° 26200lm, 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for ambient temperatures up to 70°C, die-cast aluminium housing and integrated converter. Electrical connection via quick plug-in system, with ageing-resistant silicone seals and simple installation using pendant wire with quick adjustment.
- Configurable highbay luminaire (light color, beam characteristics and resistance)
- REBUILD product: new components, old spotlight
- Ideal for logistics, high-bay warehouses, industry, cold stores or agriculture
- IFS certified & splinter protection
- single or double flame
- DALI version
- Industrial components for long service life & optimized thermal management: high and low temperature -40 to +75 degrees.
technical data
| Dimensions (L x W x H) | 912 x 288 x 135 mm |
|---|---|
| Luminous flux | 26200 lm |
| Performance | 238 W |
| Luminous efficacy | 110 lm/W |
| Color temperature | 4000 K |
| Beam angle | 40 ° |
| Guarantee | 5 years |
| D marking | No |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 912 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 23.5 / 23.3 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -40 ... +70 °C |
| Lifetime L70B50 (@Ta 25°C) | 100000 h |
| Lifetime L80B50 (@Ta 25°C) | 100000 h |
| Lifetime L90B50 (@Ta 25°C) | 100000 h |
| Lifetime L70B10 (@Ta 25°C) | 100000 h |
| Lifetime L80B10 (@Ta 25°C) | 100000 h |
| Lifetime L90B10 (@Ta 25°C) | 100000 h |
| Lifetime L70B50 (@Ta max) | 100000 h |
| Lifetime L80B50 (@Ta max) | 100000 h |
| Lifetime L90B50 (@Ta max) | 34000 h |
| Line protection B16A | 5 Luminaires |
| Line protection C16A | 7 Luminaires |
| Surge voltage resistance L/N-PE | 6.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -40 °C |
| Ambient temperature (max) | 70 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
More temperature resistant High Bay QUADRONIUS HT DALI 0912mm ESG 2x119W 040° 26200lm 4000K, class I, without TW, RAL 9010. LED spotlight with toughened safety glass cover, optimized for ambient temperatures up to 70°C, die-cast aluminium housing and integrated converter. Electrical connection via quick plug-in system, with ageing-resistant silicone seals and simple installation using pendant wire with quick adjustment. Item number: 86890521 GTIN: 4018098264804 Technical details/specification: Cover made of single-pane safety glass; Housing made of Aluminium White RAL 9010; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 2; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 912mm x 288mm x 135mm; Diameter: mm
