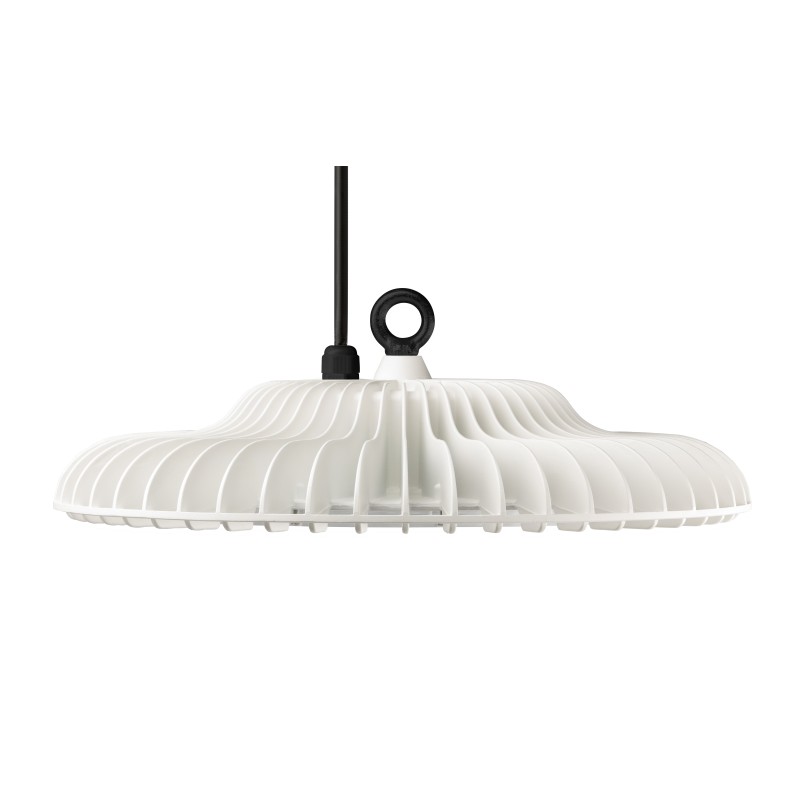

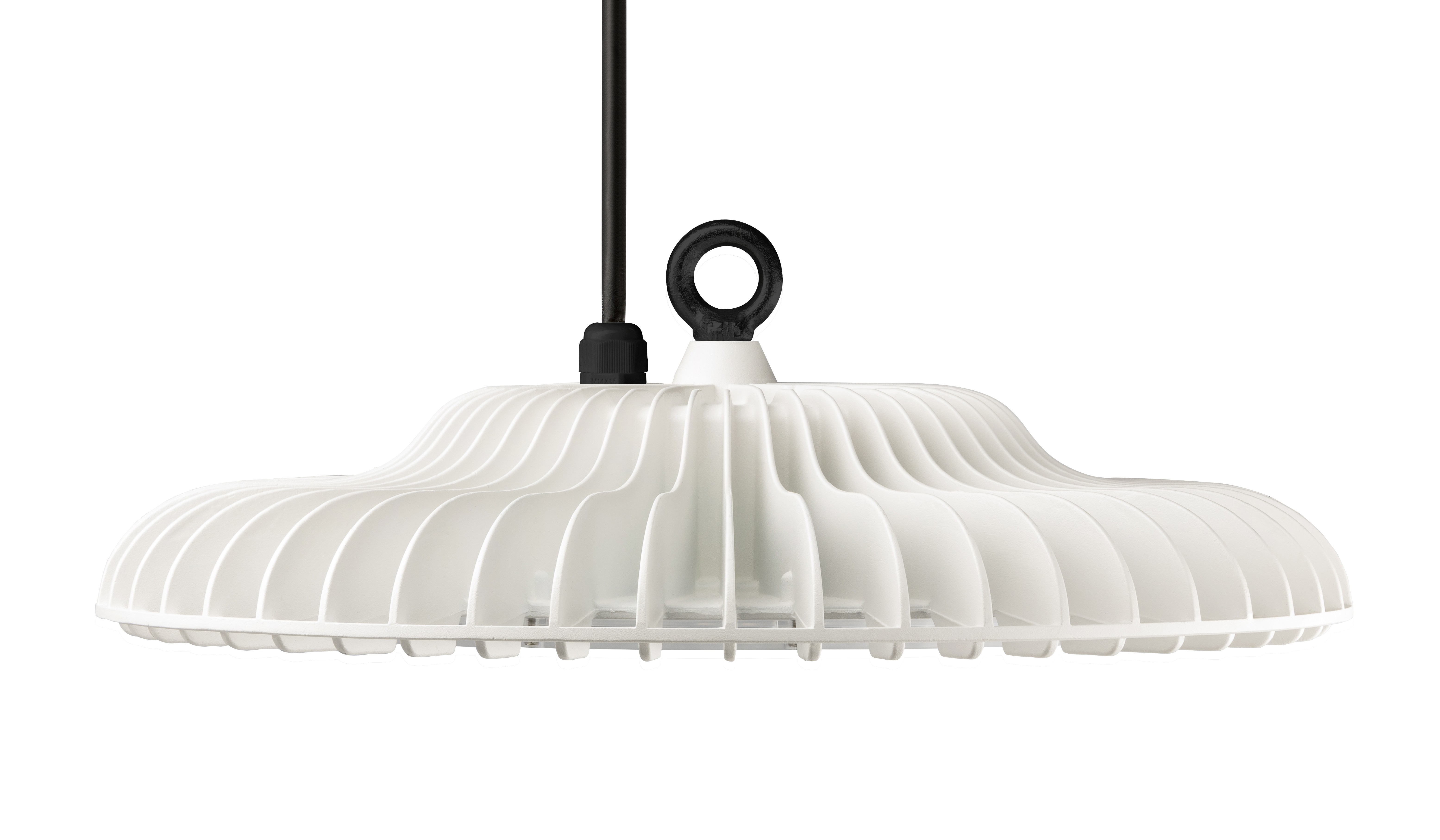

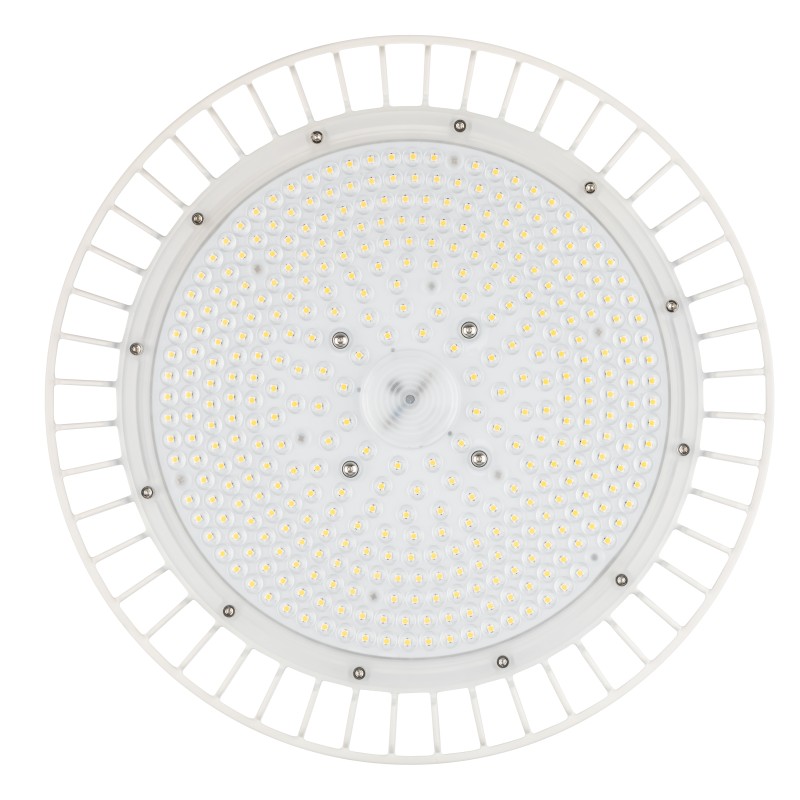

9603212 COMO BL d0380mm PC 1x117W 060° 21000lm
COMO BL d0380mm PC 1x117W 060° 21000lm, 4000K, class I, without TW, RAL 9003, IP65. Efficient COMO BL LED high bay spotlight: compact, BEG-compliant, low glare (UGR < 20), versatile mounting options and ideal for industry, logistics and cold stores. affordable LED highbayhas a Casambi-ready interfaceSpotlight can be controlled and dimmed without additional wiring Housing made of aluminum alloy, white powder coated cover lenses with optimal inner structure for glare limitation made of PC low glare due to internal prismatic lenses UGR<19
technical data
| Ausstrahlwinkel | 60 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 380 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 380 x 380 x 123 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -40 … +50 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 50 °C |
| Lichtstrom | 21000 lm |
| Leistung | 117 W |
| Lichtausbeute | 179 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 20.5 / 20.5 |
| Lebensdauer L70B50 (@Ta 25°C) | 102126 h |
| Lebensdauer L80B50 (@Ta 25°C) | 64642 h |
| Lebensdauer L90B50 (@Ta 25°C) | 31713 h |
| Lebensdauer L70B10 (@Ta 25°C) | 87091 h |
| Lebensdauer L80B10 (@Ta 25°C) | 55442 h |
| Lebensdauer L90B10 (@Ta 25°C) | 27424 h |
| Lebensdauer L70B50 (@Ta max) | 102126 h |
| Lebensdauer L80B50 (@Ta max) | 64642 h |
| Lebensdauer L90B50 (@Ta max) | 31713 h |
| Stoßspannungsfestigkeit L/N-PE | 6.0 kV |
| Zertifizierungszeichen | ENEC |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 13 |
| Leitungsschutz C16A | 22 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
More efficient High Bay COMO BL d0380mm PC 1x117W 060° 21000lm 4000K, class I, without TW, RAL 9003, IP65. Efficient COMO BL LED high bay spotlight: compact, BEG-compliant, low glare (UGR < 20), versatile mounting options and ideal for industry, logistics and cold stores. Item number: 9603212 GTIN: 4018098409113 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of Aluminium White RAL9003; 220–240V 50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 380mm x 380mm x 123mm; Diameter: 380mm
