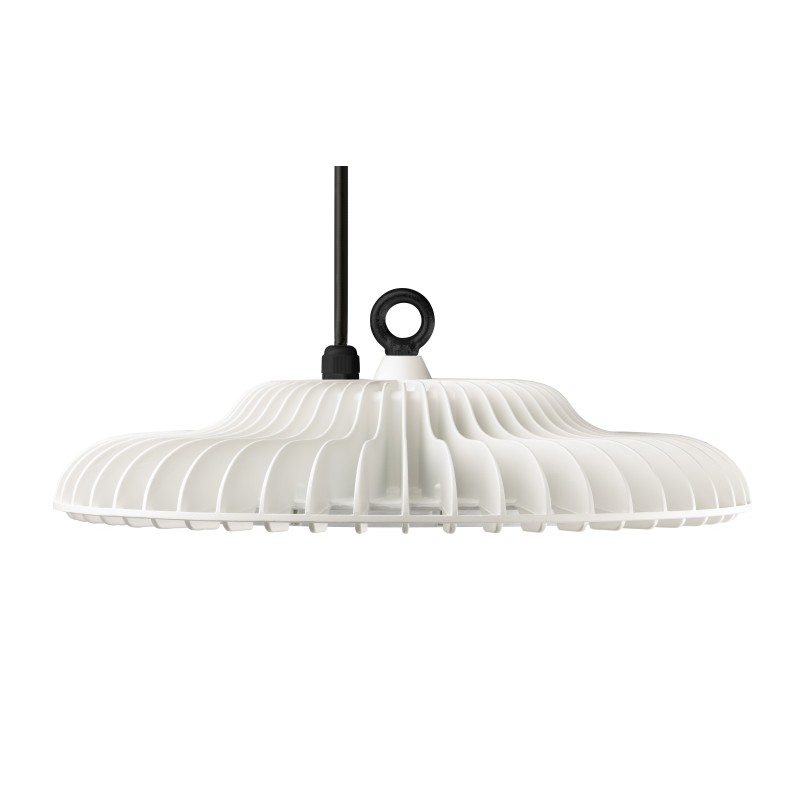

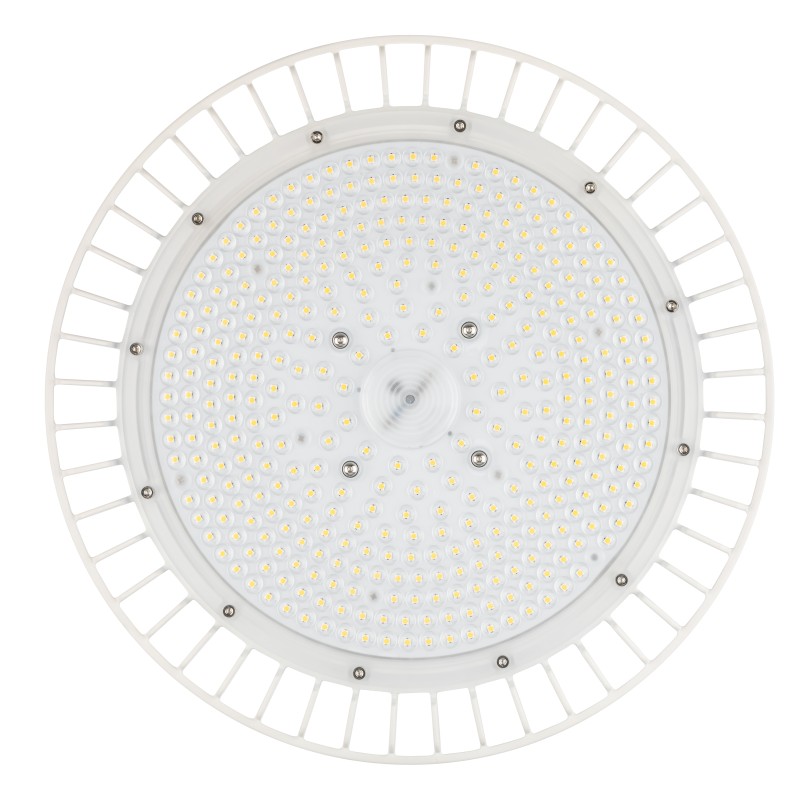

9606112 COMO BL DALI d0380mm PC 1x153W 060° 27000lm
COMO BL DALI d0380mm PC 1x153W 060° 27000lm, 4000K, class I, without TW, RAL 9003, IP65. Aluminum-magnesium alloy,lighting for large rooms,low glare,COMO SERIES,ceiling mounting,ceiling spotlights,ceiling spotlights for industrial halls,energy-saving,factory spotlights,factory spotlights,production hall spotlights,damp room spotlights,area spotlights for halls,aisles,industrial area lighting,industrial hall spotlights,large-capacity spotlights,large-capacity spotlights,halls,hall lighting,hall floodlights,hall lighting system,pendant lighting,highbay,high-bay luminaires,high-bay warehouse,high-bay warehouse lighting,high rooms,high protection class,HQL replacement,IK08,industry,industrial lighting,including supply line,IP65,IP65,cold store,warehouse,warehouse,warehouse floodlight,LED floodlight,LED high bay floodlight,lightweight,lighting solution for halls,lighting technology for halls,logistics,logistics hall spotlights,manufactory,pendant mounting,production,production hall spotlights,powder-coated,room spotlights for halls,robust hall luminaires,impact-resistant,freight forwarding,sports halls,spotlights,freezer warehouse,UFO luminaire,UGR < 20,workshop hall spotlights affordable LED highbayhas a Casambi-ready interfaceSpotlight can be controlled and dimmed without additional wiring Housing made of aluminum alloy, white powder coated cover lenses with optimal inner structure for glare limitation made of PC low glare due to internal prismatic lenses UGR<19
technical data
| Ausstrahlwinkel | 60 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 380 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 380 x 380 x 123 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -40 … +50 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 50 °C |
| Lichtstrom | 27000 lm |
| Leistung | 153 W |
| Lichtausbeute | 176 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 21.3 / 21.3 |
| Lebensdauer L70B50 (@Ta 25°C) | 102126 h |
| Lebensdauer L80B50 (@Ta 25°C) | 64642 h |
| Lebensdauer L90B50 (@Ta 25°C) | 31713 h |
| Lebensdauer L70B10 (@Ta 25°C) | 87091 h |
| Lebensdauer L80B10 (@Ta 25°C) | 55442 h |
| Lebensdauer L90B10 (@Ta 25°C) | 27424 h |
| Lebensdauer L70B50 (@Ta max) | 102126 h |
| Lebensdauer L80B50 (@Ta max) | 64642 h |
| Lebensdauer L90B50 (@Ta max) | 31713 h |
| Stoßspannungsfestigkeit L/N-PE | 6.0 kV |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 9 |
| Leitungsschutz C16A | 15 |
| emergency lighting suitability | no |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
More efficient High Bay COMO BL DALI d0380mm PC 1x153W 060° 27000lm 4000K, class I, without TW, RAL 9003, IP65. Aluminum-magnesium alloy,lighting for large rooms,low glare,COMO SERIES,ceiling mounting,ceiling spotlights,ceiling spotlights for industrial halls,energy-saving,factory spotlights,factory spotlights,production hall spotlights,damp room spotlights,area spotlights for halls,aisles,industrial area lighting,industrial hall spotlights,large-capacity spotlights,large-capacity spotlights,halls,hall lighting,hall floodlights,hall lighting system,pendant lighting,highbay,high-bay luminaires,high-bay warehouse,high-bay warehouse lighting,high rooms,high protection class,HQL replacement,IK08,industry,industrial lighting,including supply line,IP65,IP65,cold store,warehouse,warehouse,warehouse floodlight,LED floodlight,LED high bay floodlight,lightweight,lighting solution for halls,lighting technology for halls,logistics,logistics hall spotlights,manufactory,pendant mounting,production,production hall spotlights,powder-coated,room spotlights for halls,robust hall luminaires,impact-resistant,freight forwarding,sports halls,spotlights,freezer warehouse,UFO luminaire,UGR < 20,workshop hall spotlights Item number: 9606112 GTIN: 4018098444350 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of Aluminium White RAL9003; 220–240V 50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 380mm x 380mm x 123mm; Diameter: 380mm
