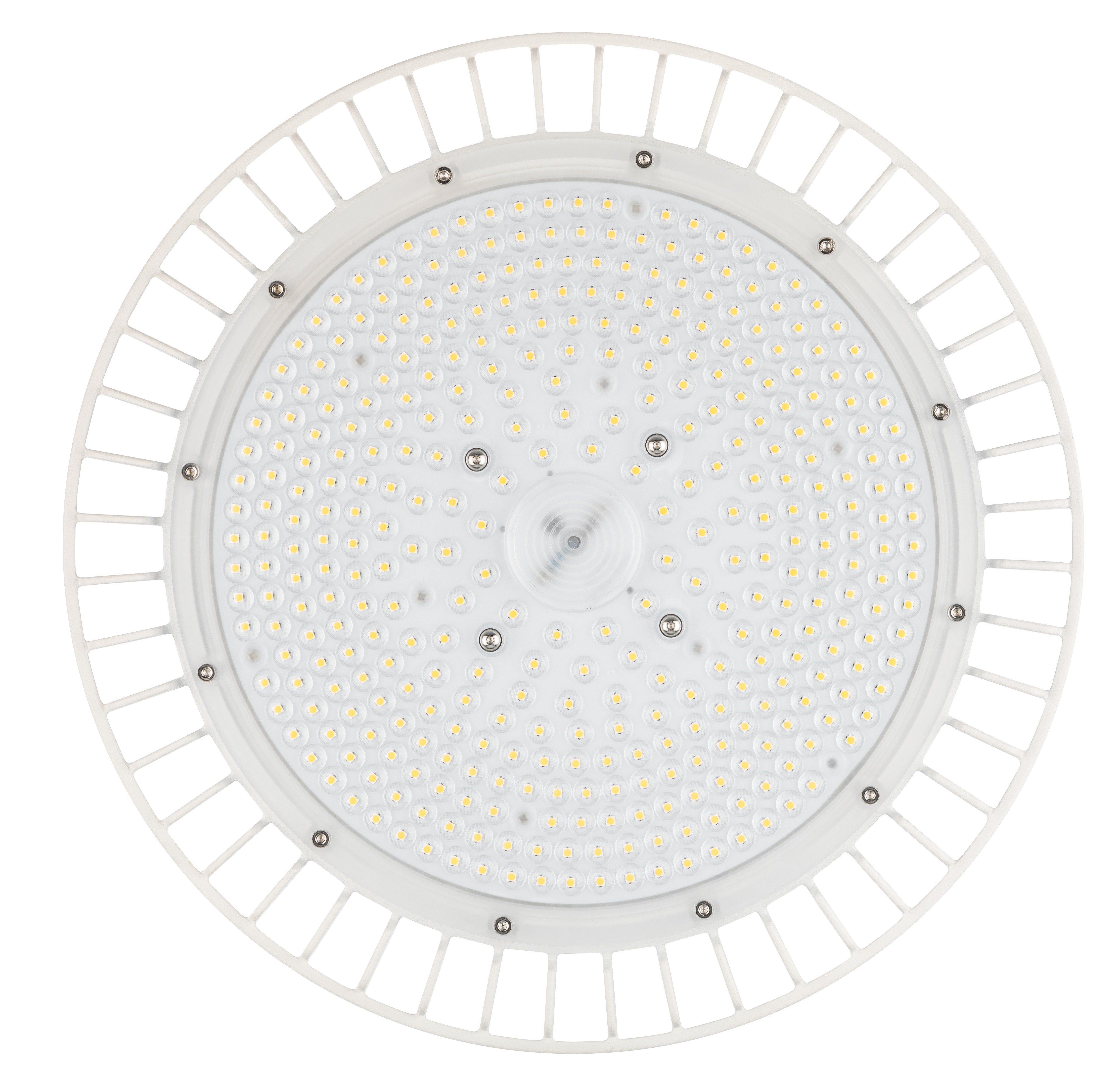

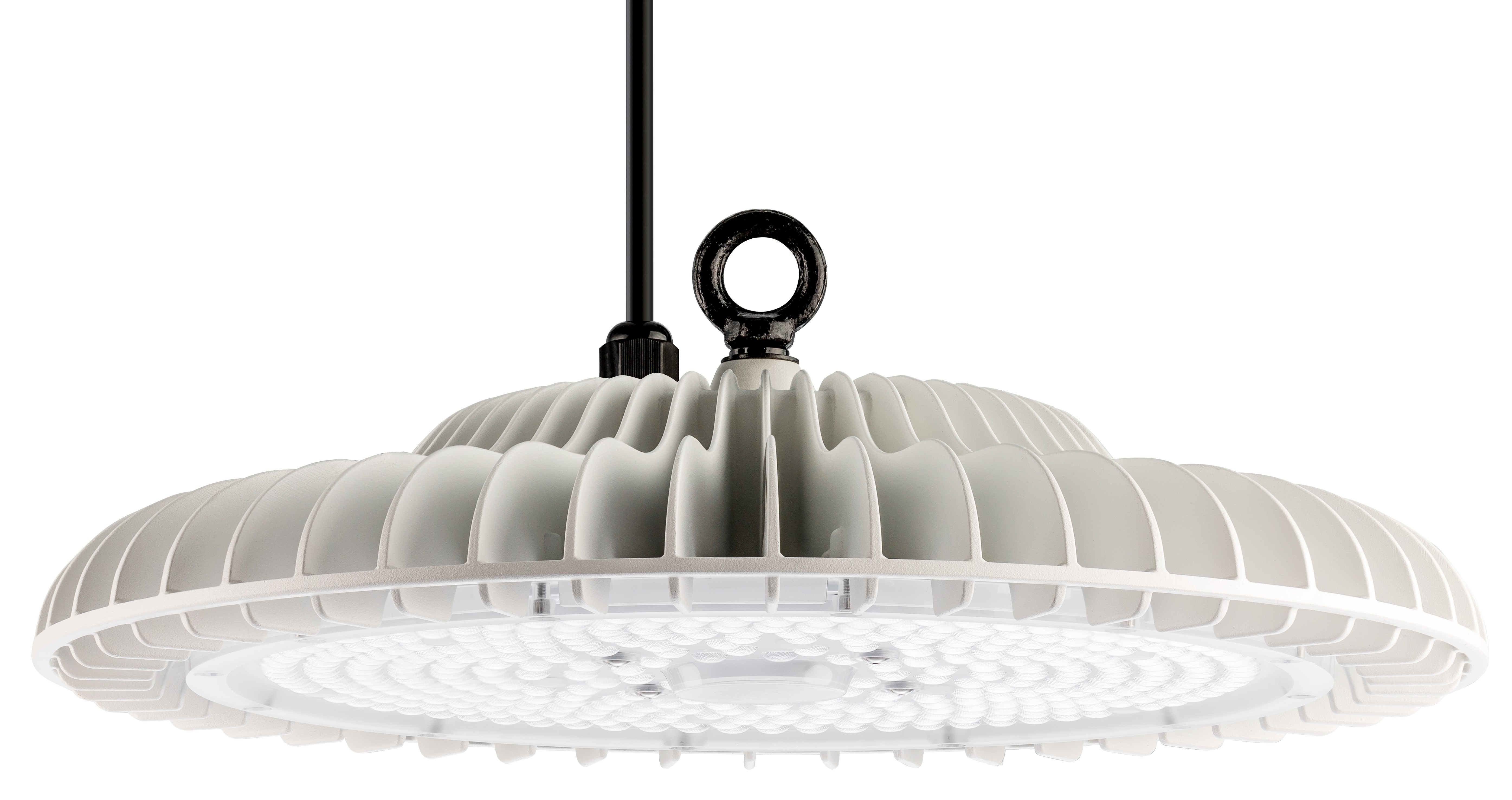

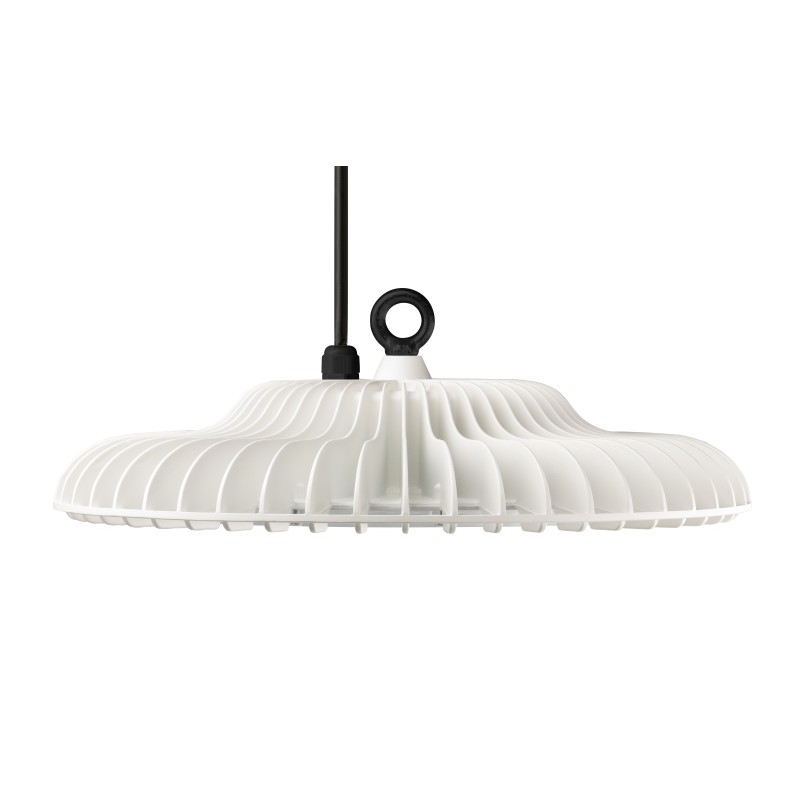

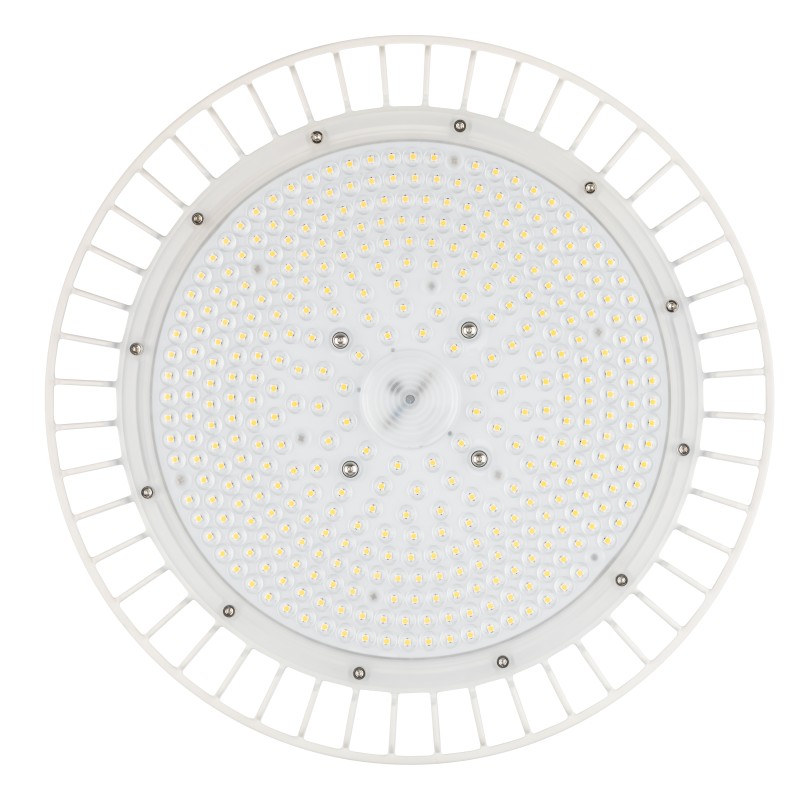

9606212 COMO BL DALI d0380mm PC 1x117W 060° 21000lm
COMO BL DALI d0380mm PC 1x117W 060° 21000lm, 4000K, class I, without TW, RAL 9003, IP65. Aluminum-magnesium alloy,lighting for large rooms,low glare,COMO SERIES,ceiling mounting,ceiling spotlights,ceiling spotlights for industrial halls,energy-saving,factory spotlights,factory spotlights,production hall spotlights,damp room spotlights,area spotlights for halls,aisles,industrial area lighting,industrial hall spotlights,large-capacity spotlights,large-capacity spotlights,halls,hall lighting,hall floodlights,hall lighting system,pendant lighting,highbay,high-bay luminaires,high-bay warehouse,high-bay warehouse lighting,high rooms,high protection class,HQL replacement,IK08,industry,industrial lighting,including supply line,IP65,IP65,cold store,warehouse,warehouse,warehouse floodlight,LED floodlight,LED high bay floodlight,lightweight,lighting solution for halls,lighting technology for halls,logistics,logistics hall spotlights,manufactory,pendant mounting,production,production hall spotlights,powder-coated,room spotlights for halls,robust hall luminaires,impact-resistant,freight forwarding,sports halls,spotlights,freezer warehouse,UFO luminaire,UGR < 20,workshop hall spotlights
- affordable LED highbay
- has a Casambi-ready interface
- Spotlight can be controlled and dimmed without additional wiring
- Housing made of aluminum alloy, white powder coated
- cover lenses with optimal inner structure for glare limitation made of PC
- low glare due to internal prismatic lenses UGR<19
technical data
| Dimensions (L x W x H) | 380 x 380 x 123 mm |
|---|---|
| Luminous flux | 21000 lm |
| Performance | 117 W |
| Luminous efficacy | 179 lm/W |
| Color temperature | 4000 K |
| Beam angle | 60 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 380 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 20.5 / 20.5 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -40 ... +50 °C |
| Lifetime L70B50 (@Ta 25°C) | 102126 h |
| Lifetime L80B50 (@Ta 25°C) | 64642 h |
| Lifetime L90B50 (@Ta 25°C) | 31713 h |
| Lifetime L70B10 (@Ta 25°C) | 87091 h |
| Lifetime L80B10 (@Ta 25°C) | 55442 h |
| Lifetime L90B10 (@Ta 25°C) | 27424 h |
| Lifetime L70B50 (@Ta max) | 102126 h |
| Lifetime L80B50 (@Ta max) | 64642 h |
| Lifetime L90B50 (@Ta max) | 31713 h |
| Line protection B16A | 13 Luminaires |
| Line protection C16A | 22 Luminaires |
| Surge voltage resistance L/N-PE | 6.0 kV |
| Rated voltage / frequency | 220-240V 50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | not interchangeable |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -40 °C |
| Ambient temperature (max) | 50 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
More efficient High Bay COMO BL DALI d0380mm PC 1x117W 060° 21000lm 4000K, class I, without TW, RAL 9003, IP65. Aluminum-magnesium alloy,lighting for large rooms,low glare,COMO SERIES,ceiling mounting,ceiling spotlights,ceiling spotlights for industrial halls,energy-saving,factory spotlights,factory spotlights,production hall spotlights,damp room spotlights,area spotlights for halls,aisles,industrial area lighting,industrial hall spotlights,large-capacity spotlights,large-capacity spotlights,halls,hall lighting,hall floodlights,hall lighting system,pendant lighting,highbay,high-bay luminaires,high-bay warehouse,high-bay warehouse lighting,high rooms,high protection class,HQL replacement,IK08,industry,industrial lighting,including supply line,IP65,IP65,cold store,warehouse,warehouse,wareho
