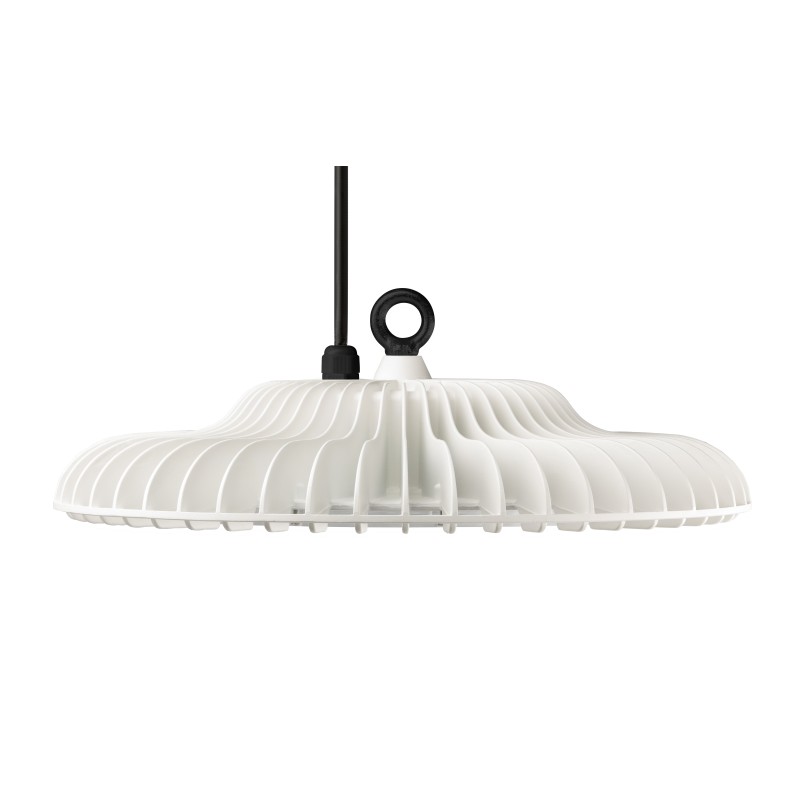

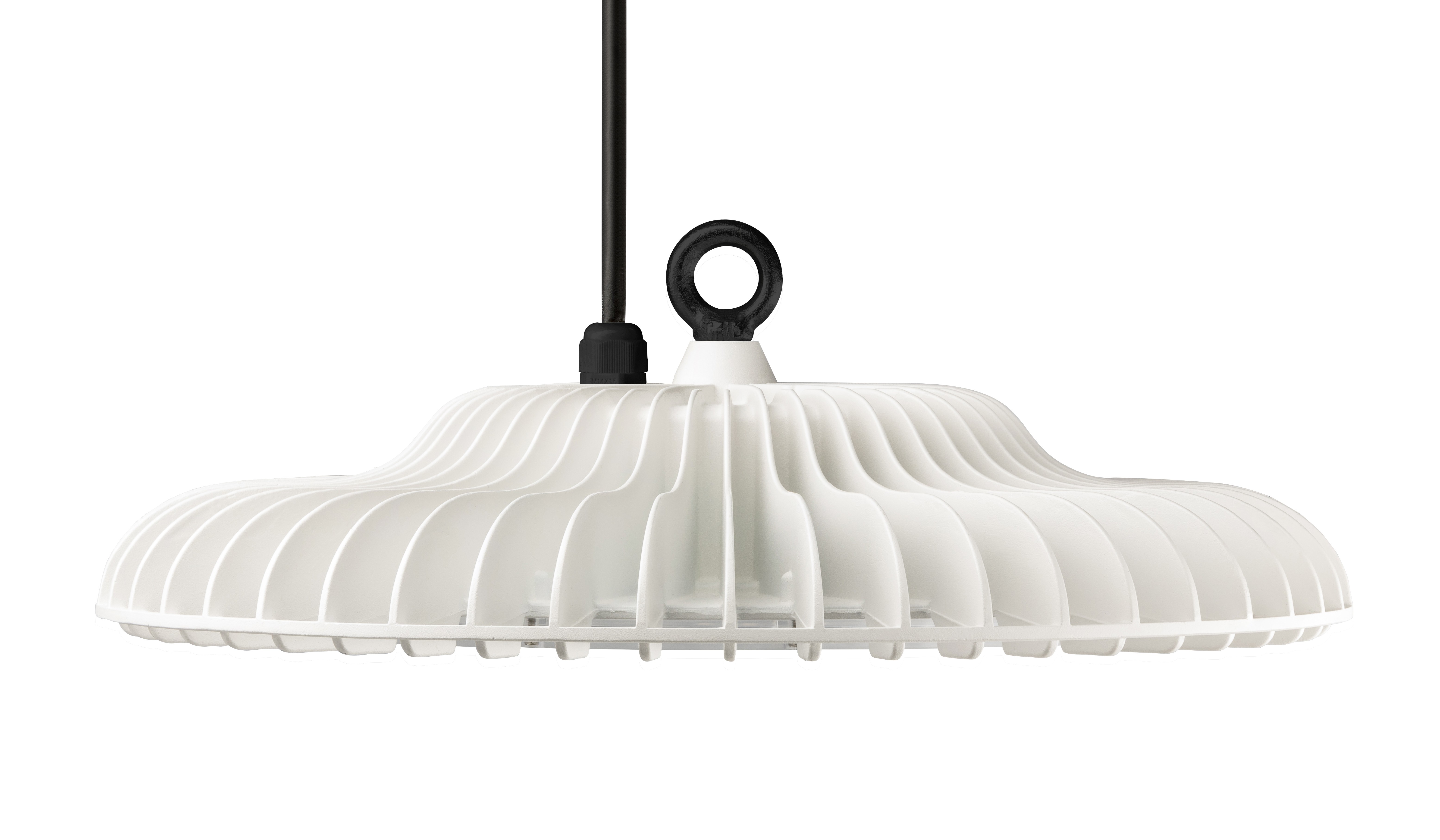

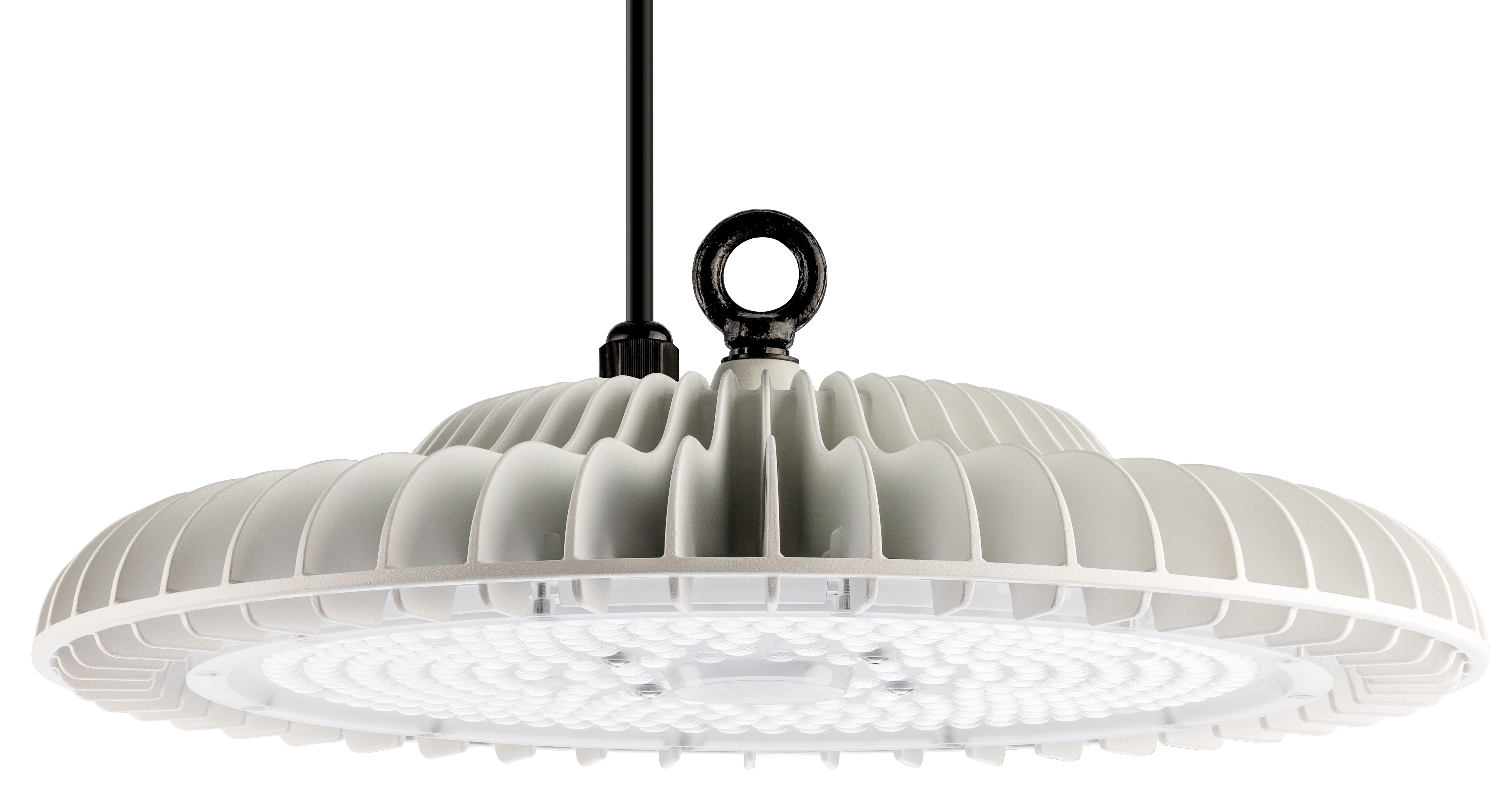

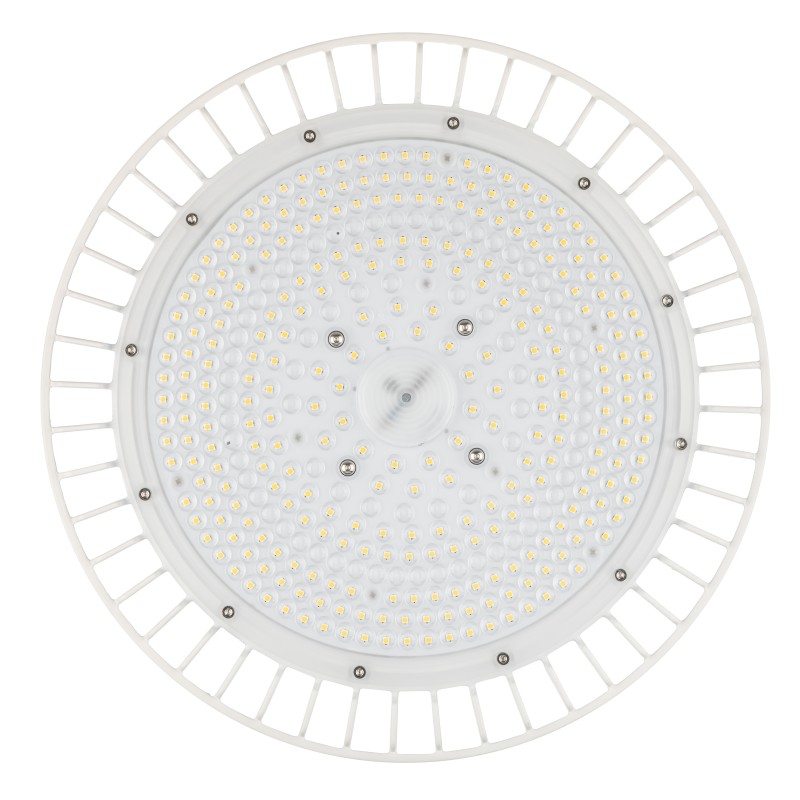

9617012 COMO ECO 0320mm PC 1x64-119W 100° 12000-21000lm
COMO ECO 0320mm PC 1x64/74/97/119W 100° 12000/13500/17500/21000lm, 4000K, class I, without TW. COMO ECO LED high bay luminaire - efficient, versatile & cost-effective. Multi-lumen function for flexible light intensity, compact design with simple installation. Robust materials, low glare, durable. Ideal for industry, logistics & cold stores, 1:1 replacement possible.
- Cost-effective LED highbay
- Housing made of aluminum alloy, white powder-coated
- Cover lenses with optimum internal structure for glare limitation made of PC
- Maximum flexibility thanks to multilumen
- Immediately available
- BEG eligible
- Perfect for 1:1 replacement thanks to 1-point suspension
technical data
| Ausstrahlwinkel | 100 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 320 mm |
| Multi-Lumen (EN) | Yes |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | not exchangeable |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 320 x 320 x 123 mm |
| Dimmable/Controllable | Multilumen |
| Temperaturbereich | -40 … +50 °C |
| Versorgungsspannung | AC |
| Nennspannung / Frequenz | 220–240V 50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -40 °C |
| Umgebungstemperatur (max) | 50 °C |
| Lichtstrom | 12000 lm 13500 lm 17500 lm 21000 lm |
| Leistung | 64 W 74 W 97 W 119 W |
| Lichtausbeute | 179 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 27.7 / 27.7 |
| Lebensdauer L70B50 (@Ta 25°C) | 102126 h |
| Lebensdauer L80B50 (@Ta 25°C) | 64642 h |
| Lebensdauer L90B50 (@Ta 25°C) | 31713 h |
| Lebensdauer L70B10 (@Ta 25°C) | 87091 h |
| Lebensdauer L80B10 (@Ta 25°C) | 55442 h |
| Lebensdauer L90B10 (@Ta 25°C) | 27424 h |
| Lebensdauer L70B50 (@Ta max) | 102126 h |
| Lebensdauer L80B50 (@Ta max) | 64642 h |
| Lebensdauer L90B50 (@Ta max) | 31713 h |
| Stoßspannungsfestigkeit L/N-PE | 6.0 kV |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 13 |
| Leitungsschutz C16A | 22 |
| emergency lighting suitability | no |
| Producer guarantee | 3 Years |
| D marking | Yes |
Tender text
More favorable High Bay COMO ECO 0320mm PC 1x64/74/97/119W 100° 12000/13500/17500/21000lm 4000K, class I, without TW. COMO ECO LED high bay luminaire - efficient, versatile & cost-effective. Multi-lumen function for flexible light intensity, compact design with simple installation. Robust materials, low glare, durable. Ideal for industry, logistics & cold stores, 1:1 replacement possible. Item number: 9617012 GTIN: 4018098454762 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of Aluminium White RAL9003; 220–240V 50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 320mm x 320mm x 123mm; Diameter: 320mm
