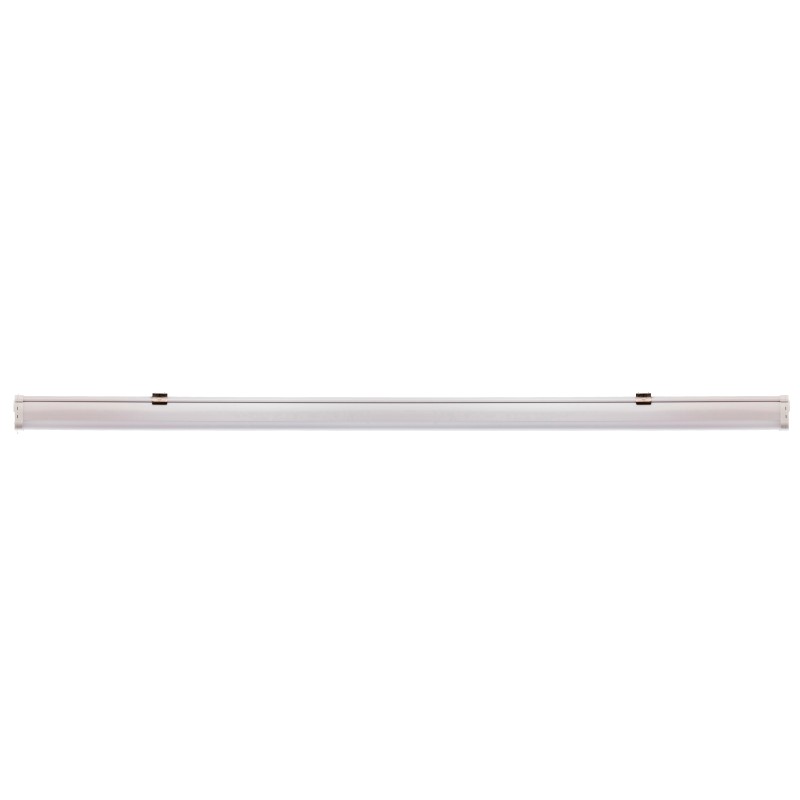

5231015B KATLA BL 1540mm PCO 1x46W 120° 6500lm
KATLA BL 1540mm PCO 1x46W 120° 6500lm, 4000K, class I, with TW 3x1,5mm². The KATLA BL PCO is a highly efficient LED surface-mounted damp-proof luminaire with IP65 protection, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It is easy to install thanks to the PRACHT SLIDER system and the PRACHT CLAMP SYSTEM with variable fixing distances. Ideal for parking garages, basements and workshops.
- IP65, IK08 and up to 6500lm
- Impact-resistant polycarbonate housing
- 3x1.5mm² through-wiring ex works
- Variable mounting distances thanks to PRACHT CLIMPSYSTEM
- Easy connection thanks to PRACHT SLIDER For ceiling, pendant and trunking rail
- ideally suited for parking garages, corridors, cellars, workshops and technical rooms
- further configurable in the KATLA PRO
technical data
| Dimensions (L x W x H) | 1540 x 68 x 71 mm |
|---|---|
| Luminous flux | 6500 lm |
| Performance | 46 W |
| Luminous efficacy | 141 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1,5 |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1540 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 24.0 / 25.9 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 88500 h |
| Lifetime L80B50 (@Ta 25°C) | 58100 h |
| Lifetime L90B50 (@Ta 25°C) | 31200 h |
| Lifetime L70B10 (@Ta 25°C) | 63600 h |
| Lifetime L80B10 (@Ta 25°C) | 42600 h |
| Lifetime L90B10 (@Ta 25°C) | 24100 h |
| Lifetime L70B50 (@Ta max) | 88500 h |
| Lifetime L80B50 (@Ta max) | 58100 h |
| Lifetime L90B50 (@Ta max) | 31200 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 31 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | not interchangeable |
| Interchangeability of light source | not interchangeable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Certification mark | ENEC |
| Energy efficiency class Light source | D |
| Dimming/Control | Fixed Output |
Tender text
Reliable Profile luminaire KATLA BL 1540mm PCO 1x46W 120° 6500lm 4000K, class I, with TW 3x1,5mm². The KATLA BL PCO is a highly efficient LED surface-mounted damp-proof luminaire with IP65 protection, impact-resistant polycarbonate housing (IK08) and opalized PC-OPAL cover. It is easy to install thanks to the PRACHT SLIDER system and the PRACHT CLAMP SYSTEM with variable fixing distances. Ideal for parking garages, basements and workshops. Item number: 5231015B GTIN: 4018098391203 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-Polycarbonate white; 220–240V 50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1540mm x 68mm x 71mm; Diameter: mm
