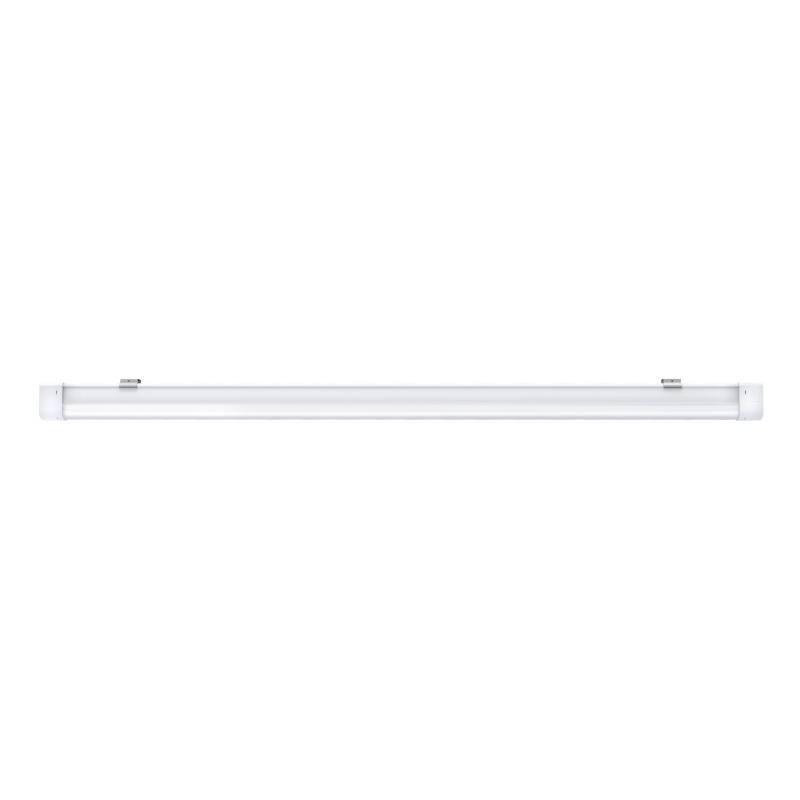

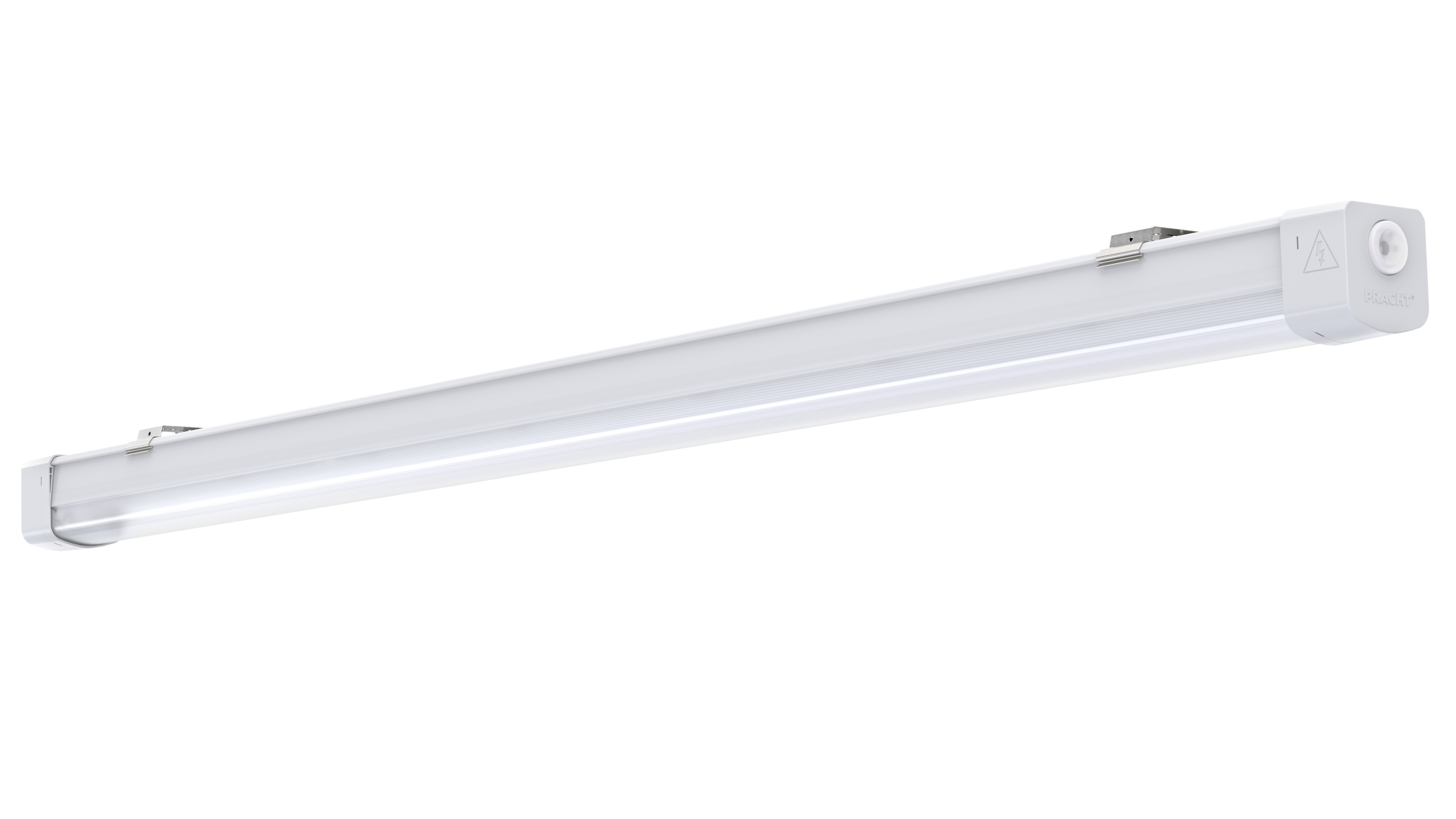

5271004 KATLA ECO 1225mm PCi 1x23W 135° 3400lm
KATLA ECO 1225mm PCi 1x23W 135° 3400lm, 4000K, class I, with TW 3x1,5mm². KATLA ECO: High-performance, profile luminaire for damp rooms, highly efficient, robust, easy to install and ideal for new installations or 1:1 replacement.
- IP65, IK08 and up to 6000lm
- Impact-resistant polycarbonate housing
- 3x1.5mm² through-wiring ex works

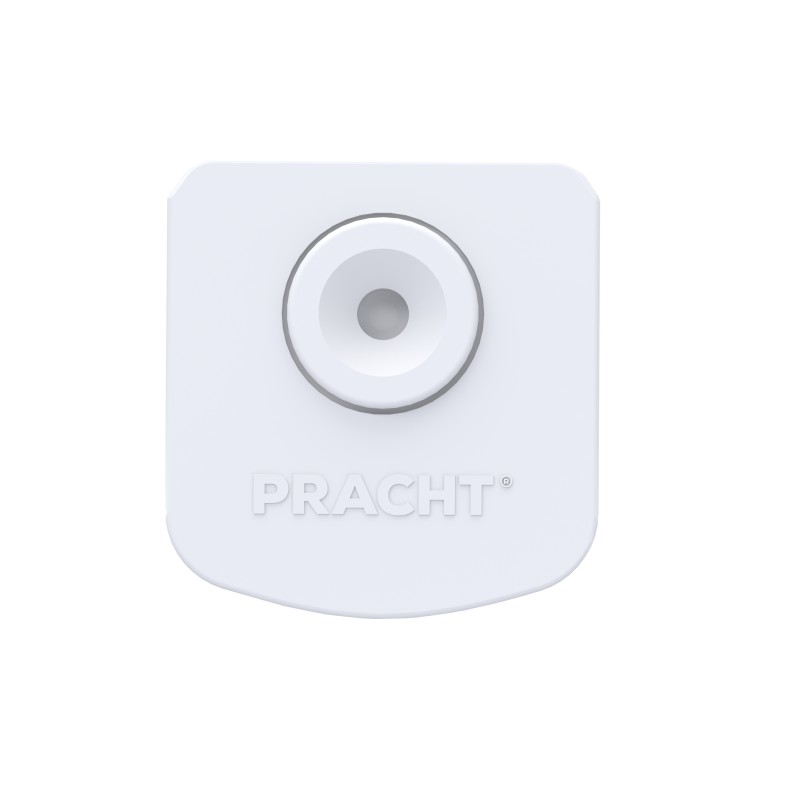

- Variable fixing distances thanks to PRACHT CLAMP SYSTEM
- For ceiling, pendant and trunking rail
- Ideal for corridors, cellars, workshops, utility rooms and technical rooms
- Electronics and LED changeable
technical data
| Ausstrahlwinkel | 135 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1225 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 3x1.5 |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1225 x 60 x 71 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 3400 lm |
| Leistung | 23 W |
| Lichtausbeute | 148 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 23.4 / 25.8 |
| Lebensdauer L70B50 (@Ta 25°C) | 73003 h |
| Lebensdauer L80B50 (@Ta 25°C) | 46226 h |
| Lebensdauer L90B50 (@Ta 25°C) | 22273 h |
| Lebensdauer L70B10 (@Ta 25°C) | 61146 h |
| Lebensdauer L80B10 (@Ta 25°C) | 38845 h |
| Lebensdauer L90B10 (@Ta 25°C) | 19205 h |
| Lebensdauer L70B50 (@Ta max) | 73003 h |
| Lebensdauer L80B50 (@Ta max) | 46226 h |
| Lebensdauer L90B50 (@Ta max) | 22273 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 19 |
| Leitungsschutz C16A | 31 |
| emergency lighting suitability | no |
| Producer guarantee | 3 Years |
| D marking | Yes |
Tender text
Favorable Profile luminaire KATLA ECO 1225mm PCi 1x23W 135° 3400lm 4000K, class I, with TW 3x1,5mm². KATLA ECO: High-performance, profile luminaire for damp rooms, highly efficient, robust, easy to install and ideal for new installations or 1:1 replacement. Item number: 5271004 GTIN: 4018098429555 Technical details/specification: Cover made of PCi - Polycarbonate structured inside; Housing made of PC-Polycarbonate opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1225mm x 60mm x 71mm; Diameter: mm
