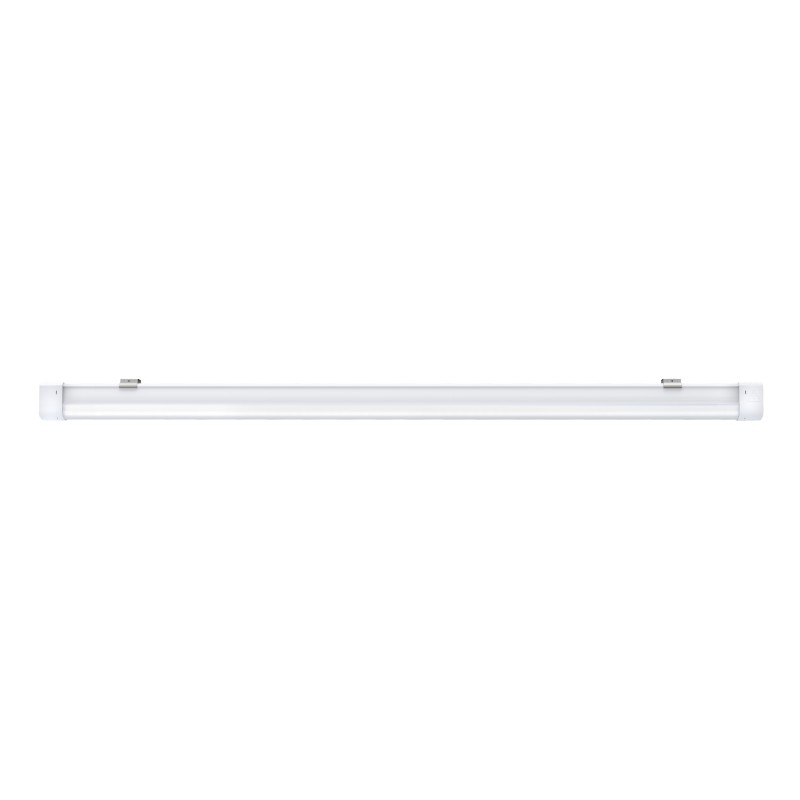

5271005 KATLA ECO 1525mm PCi 1x31W 135° 4700lm
KATLA ECO 1525mm PCi 1x31W 135° 4700lm, 4000K, class I, with TW 3x1,5mm². KATLA ECO: High-performance, BEG-eligible profile luminaire for damp rooms, highly efficient, robust, easy to install and ideal for new installations or 1:1 replacement.
- IP65, IK08 and up to 6000lm
- Impact-resistant polycarbonate housing
- 3x1.5mm² through-wiring ex works

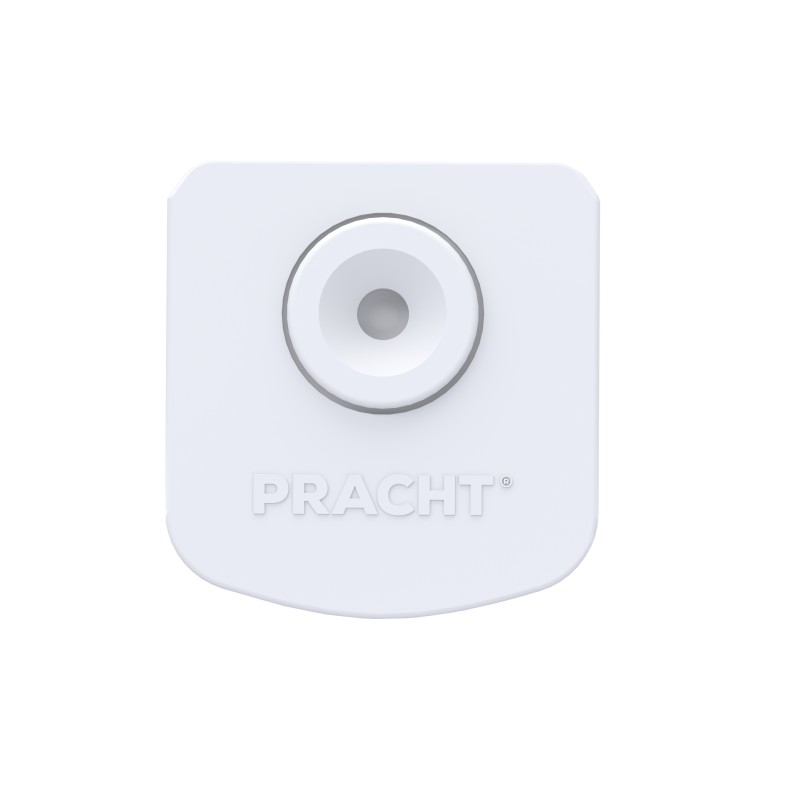

- Variable fixing distances thanks to PRACHT CLAMP SYSTEM
- For ceiling, pendant and trunking rail
- Ideal for corridors, cellars, workshops, utility rooms and technical rooms
- Electronics and LED changeable
technical data
| Dimensions (L x W x H) | 1525 x 60 x 71 mm |
|---|---|
| Luminous flux | 4700 lm |
| Performance | 31 W |
| Luminous efficacy | 152 lm/W |
| Color temperature | 4000 K |
| Beam angle | 135 ° |
| Guarantee | 3 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1,5 |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1525 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 23.6 / 26.0 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 73003 h |
| Lifetime L80B50 (@Ta 25°C) | 46226 h |
| Lifetime L90B50 (@Ta 25°C) | 22273 h |
| Lifetime L70B10 (@Ta 25°C) | 61146 h |
| Lifetime L80B10 (@Ta 25°C) | 38845 h |
| Lifetime L90B10 (@Ta 25°C) | 19205 h |
| Lifetime L70B50 (@Ta max) | 73003 h |
| Lifetime L80B50 (@Ta max) | 46226 h |
| Lifetime L90B50 (@Ta max) | 22273 h |
| Line protection B16A | 19 Luminaires |
| Line protection C16A | 31 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | No |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Favorable Profile luminaire KATLA ECO 1525mm PCi 1x31W 135° 4700lm 4000K, class I, with TW 3x1,5mm². KATLA ECO: High-performance, BEG-eligible profile luminaire for damp rooms, highly efficient, robust, easy to install and ideal for new installations or 1:1 replacement. Item number: 5271005 GTIN: 4018098429562 Technical details/specification: Cover made of PCi - Polycarbonate structured inside; Housing made of PC-Polycarbonate opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1525mm x 60mm x 71mm; Diameter: mm
