9106180 KATLA XLS S 1758mm PCO 1x41W 120° 6700lm
KATLA XLS S 1758mm PCO 1x41W 120° 6700lm, 4000K, class I, without TW, with HF sensors. The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications.
- Configurable damp-proof profile luminaire with integrated HF sensor
- IP66 and up to 6700lm
- Impact-resistant housing made of PC-OPAL
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional

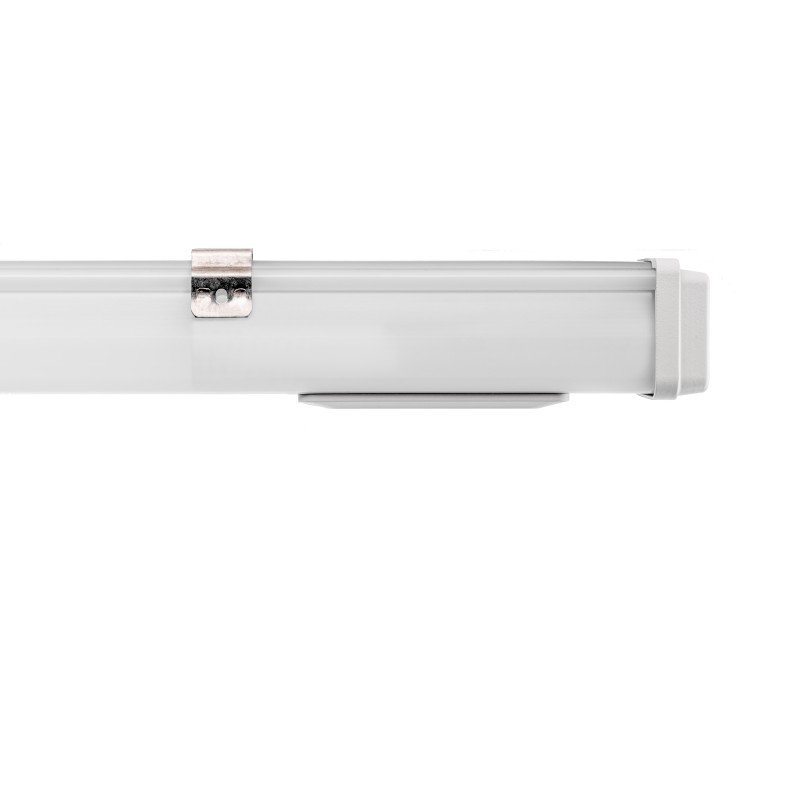

- Variable fixing distances thanks to PRACHT CLAMP SYSTEM
- Suitable for ceiling, horizontal wall, pendant and trunking rail mounting
technical data
| Dimensions (L x W x H) | 1758 x 59 x 62 mm |
|---|---|
| Luminous flux | 6700 lm |
| Performance | 41 W |
| Luminous efficacy | 163 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1758 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 25.8 / 26.8 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK I |
| Temperature range | -20 ... +30 °C |
| Lifetime L70B50 (@Ta 25°C) | 231596 h |
| Lifetime L80B50 (@Ta 25°C) | 148328 h |
| Lifetime L90B50 (@Ta 25°C) | 74624 h |
| Lifetime L70B10 (@Ta 25°C) | 194742 h |
| Lifetime L80B10 (@Ta 25°C) | 125691 h |
| Lifetime L90B10 (@Ta 25°C) | 64781 h |
| Lifetime L70B50 (@Ta max) | 217351 h |
| Lifetime L80B50 (@Ta max) | 139046 h |
| Lifetime L90B50 (@Ta max) | 71157 h |
| Line protection B16A | 32 Luminaires |
| Line protection C16A | 53 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9106180NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 86 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 30 °C |
| Energy efficiency class Light source | B |
| Dimming/Control | Sensor |
Tender text
Configurable Profile luminaire KATLA XLS S 1758mm PCO 1x41W 120° 6700lm 4000K, class I, without TW, with HF sensors. The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications. Item number: 9106180 GTIN: 4018098283645 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1758mm x 59mm x 62mm; Diameter: mm
