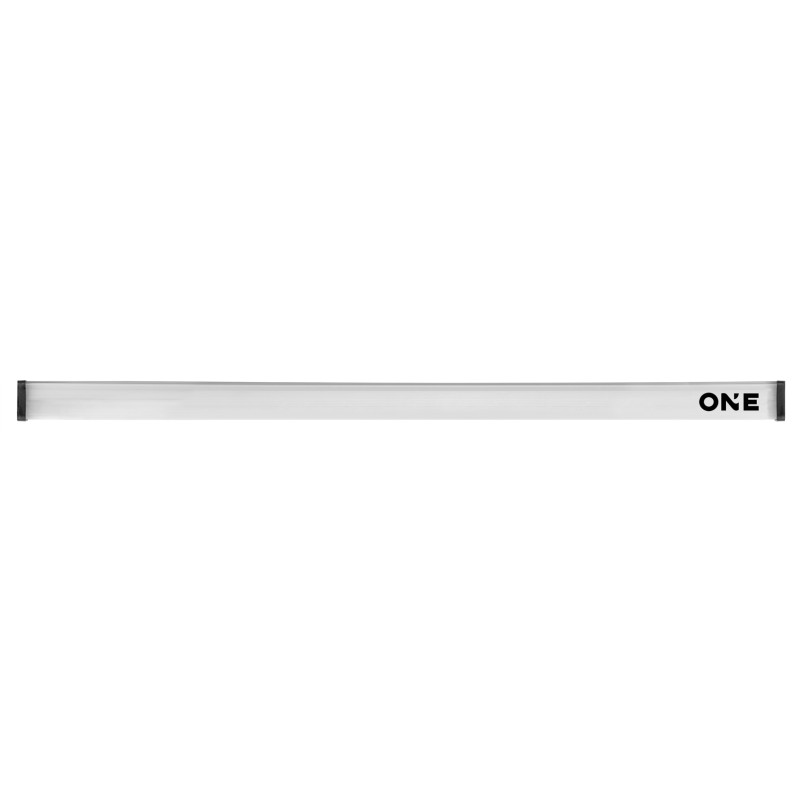

9109003 KATLA ONE 1000mm PCO 1x17-32W 120° 2400-4700lm
KATLA ONE 1000mm PCO 1x17/23/32W 120° 2400/3500/4700lm, 4000K, class I, without TW. The plastic parts of this luminaire are made from 99% recycled material. KATLA ONE: Sustainable, BEG-eligible LED moisture-proof luminaire made of 99% recycled plastic, with dip-switch control, modular interchangeability and versatile mounting options for commercial and industrial applications.
- The sustainable surface-mounted damp-proof luminaire
- Made from 100% recycled plastic (PC-OPAL recyclate)
- Customizable communication surfaces via laser engraving
- 5-year manufacturer's guarantee
- For ceiling, horizontal wall, pendant and trunking mounting
- Adjustable luminous fluxes thanks to DIP switch ( pendant and trunking rail mounting
- Adjustable up to 4 luminous fluxes thanks to DIP switch ( 2400/3500/4700/5700lm )

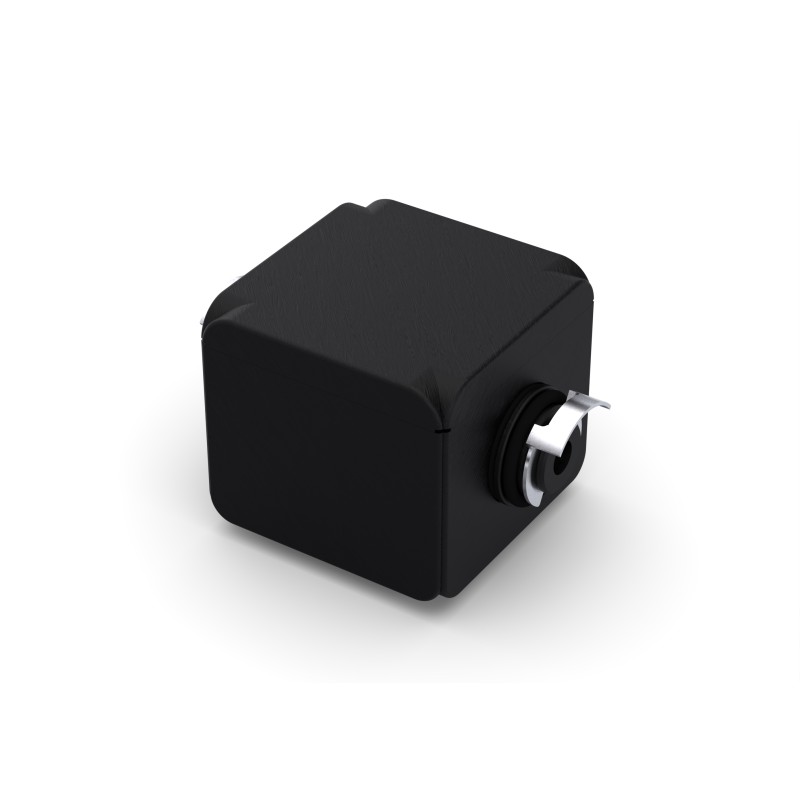

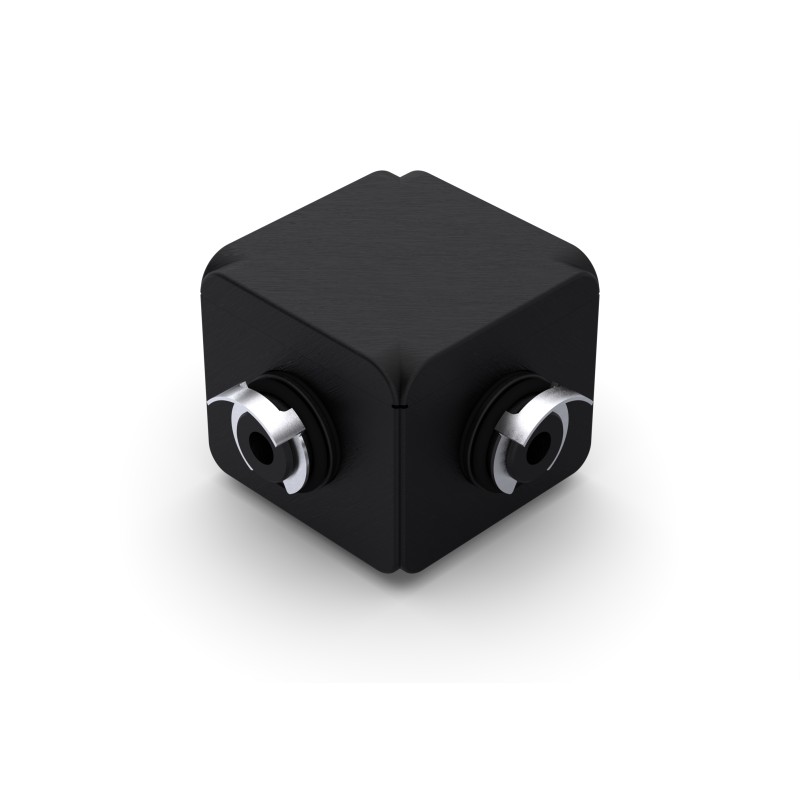

- Compatible with ONE CONNECT system

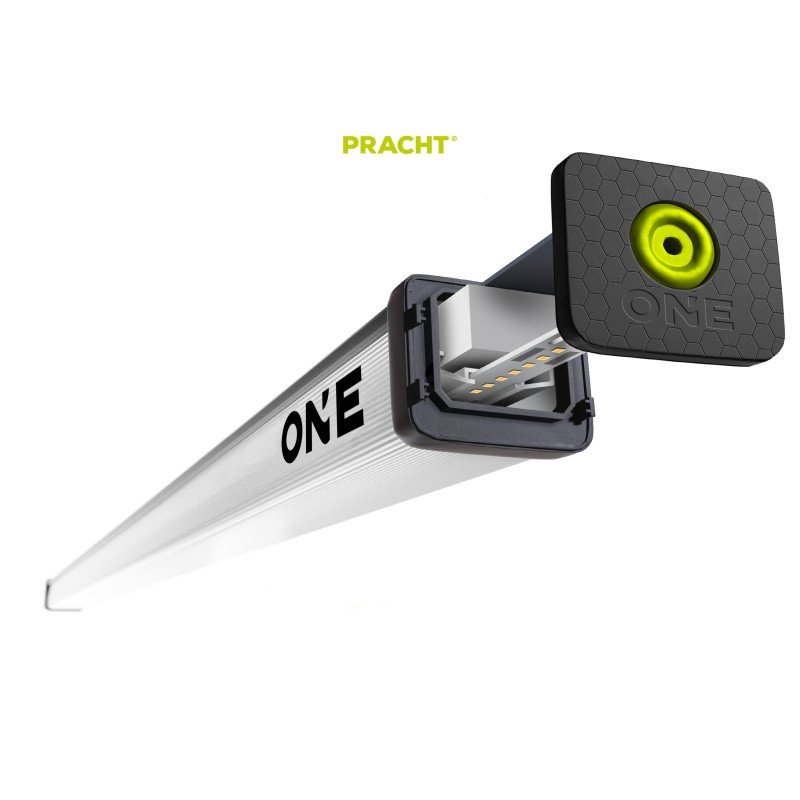

- Easy component replacement thanks to patented REUSE technology
technical data
| Dimensions (L x W x H) | 1000 x 59 x 58 mm |
|---|---|
| Luminous flux | 2400 lm 3500 lm 4700 lm |
| Performance | 17 W 23 W 32 W |
| Luminous efficacy | 147 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | Yes |
| Length | 1000 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 25.5 / 26.7 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK06 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 163034 h |
| Lifetime L80B50 (@Ta 25°C) | 107053 h |
| Lifetime L90B50 (@Ta 25°C) | 58346 h |
| Lifetime L70B10 (@Ta 25°C) | 132759 h |
| Lifetime L80B10 (@Ta 25°C) | 86939 h |
| Lifetime L90B10 (@Ta 25°C) | 46627 h |
| Lifetime L70B50 (@Ta max) | 106688 h |
| Lifetime L80B50 (@Ta max) | 70100 h |
| Lifetime L90B50 (@Ta max) | 37740 h |
| Line protection B16A | 20 Luminaires |
| Line protection C16A | 34 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9109003NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 99 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | Multilumen |
Tender text
Expandable Profile luminaire KATLA ONE 1000mm PCO 1x17/23/32W 120° 2400/3500/4700lm 4000K, class I, without TW. The plastic parts of this luminaire are made from 99% recycled material. KATLA ONE: Sustainable, BEG-eligible LED moisture-proof luminaire made of 99% recycled plastic, with dip-switch control, modular interchangeability and versatile mounting options for commercial and industrial applications. Item number: 9109003 GTIN: 4018098390039 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PC-PBT Recyclate opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1000mm x 59mm x 58mm; Diameter: mm
