9109004 KATLA ONE 1485mm PCO 1x17-38W 120° 2400-5700lm

Reference 9109009

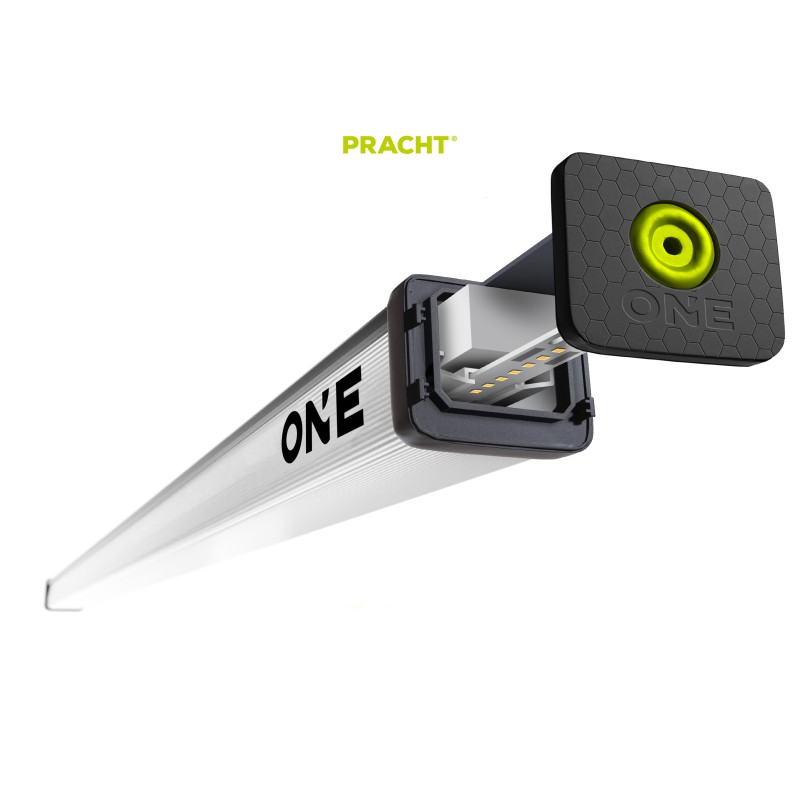

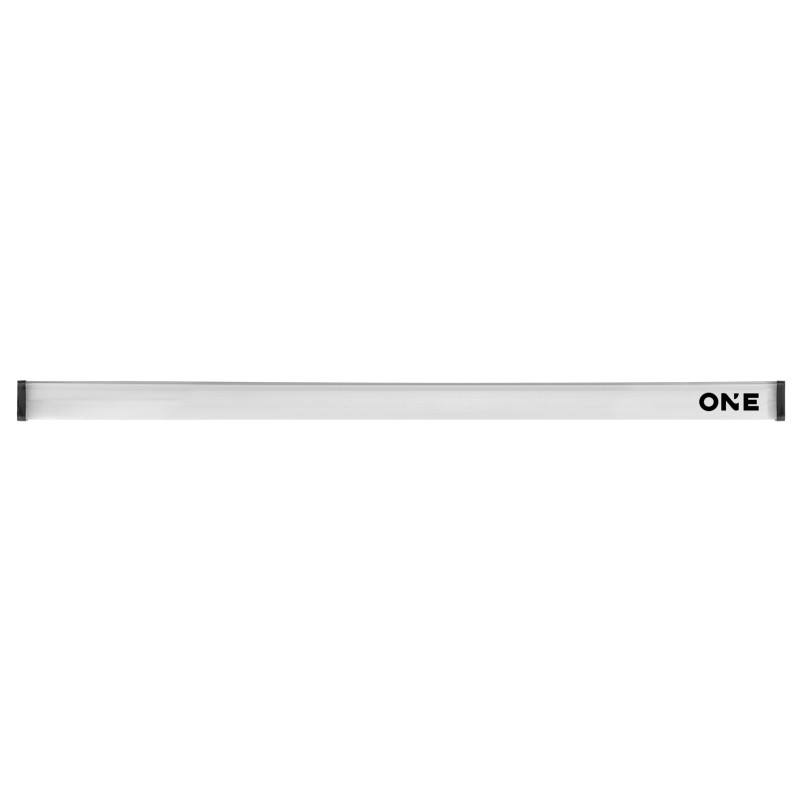

KATLA ONE 1485mm PCO 1x17/23/32/38W 120° 2400/3500/4700/5700lm, 4000K, class I, without TW. The plastic parts of this luminaire are made from 99% recycled material. KATLA ONE: Sustainable, BEG-eligible LED moisture-proof luminaire made of 99% recycled plastic, with dip-switch control, modular interchangeability and versatile mounting options for commercial and industrial applications.

The sustainable surface-mounted damp-proof luminaire
Made from 100% recycled plastic (PC-OPAL recyclate)
Customizable communication surfaces via laser engraving
5-year manufacturer's guarantee
For ceiling, horizontal wall, pendant and trunking mounting
Adjustable luminous fluxes thanks to DIP switch ( pendant and trunking rail mounting
Adjustable up to 4 luminous fluxes thanks to DIP switch ( 2400/3500/4700/5700lm )
Compatible with ONE CONNECT system
Easy component replacement thanks to patented REUSE technology

technical data

Dimensions (L x W x H)	1485 x 59 x 58 mm
Luminous flux	2400 lm 3500 lm 4700 lm 5700 lm
Performance	17 W 23 W 32 W 38 W
Luminous efficacy	150 lm/W
Color temperature	4000 K
Beam angle	120 °
Guarantee	5 years
D marking	Yes
Supply voltage	AC/DC
Market indicator	CE
Through-wiring	without
Outdoor area	Protected outdoor area*
Vandalism protection	No
Animal husbandry	not suitable
Multi-Lumen	Yes
Length	1485 mm
Color rendering Ra	80
Color tolerance (SDCM)	5
Glare rating (UGR 4H 8H)	24.8 / 26.0
IP protection class	IP65 IP66
IK Impact resistance	IK06
Protection class	SK I
Temperature range	-20 ... +35 °C
Lifetime L70B50 (@Ta 25°C)	163034 h
Lifetime L80B50 (@Ta 25°C)	107053 h
Lifetime L90B50 (@Ta 25°C)	58346 h
Lifetime L70B10 (@Ta 25°C)	132759 h
Lifetime L80B10 (@Ta 25°C)	86939 h
Lifetime L90B10 (@Ta 25°C)	46627 h
Lifetime L70B50 (@Ta max)	106688 h
Lifetime L80B50 (@Ta max)	70100 h
Lifetime L90B50 (@Ta max)	37740 h
Line protection B16A	24 luminaires
Line protection C16A	40 luminaires
Surge voltage resistance L/N-PE	2.0 kV
Rated voltage / frequency	220-240V 0/50/60 Hz
Emergency lighting suitability	Yes, with article number 9109009NZ
REACH	No
Interchangeability of operating device	yes, by specialist(s)
Interchangeability of light source	yes, by specialist(s)
REMADE Score	99 %
Ambient temperature (min)	-20 °C
Ambient temperature (max)	35 °C
Energy efficiency class Light source	C
Dimming/Control	Multilumen

Downloads

IFS-Zertifikat DE

IFS certificate EN

EU-Konformitätserkläung DE-EN

Betriebsanleitung DE-EN

Wartungsanleitung DE-EN

Datenblatt DE

Dimension drawing

STP

LDT

IES

Data sheet EN

Tender text

Expandable Profile luminaire KATLA ONE 1485mm PCO 1x17/23/32/38W 120° 2400/3500/4700/5700lm 4000K, class I, without TW. The plastic parts of this luminaire are made from 99% recycled material. KATLA ONE: Sustainable, BEG-eligible LED moisture-proof luminaire made of 99% recycled plastic, with dip-switch control, modular interchangeability and versatile mounting options for commercial and industrial applications. Item number: 9109004 GTIN: 4018098422884 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PC-PBT Recyclate opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1485mm x 59mm x 58mm; Diameter: mm
