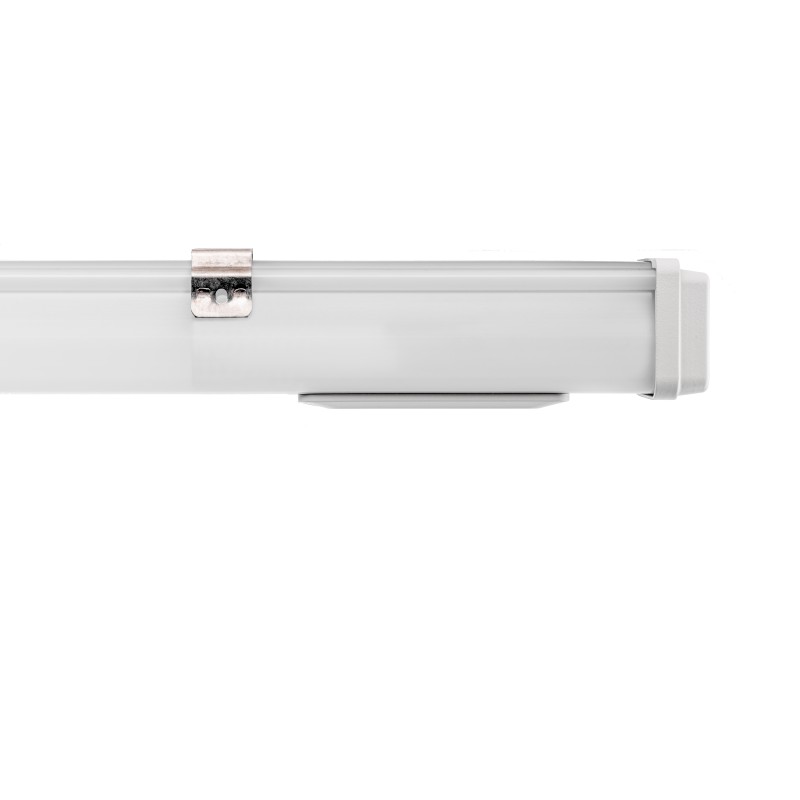

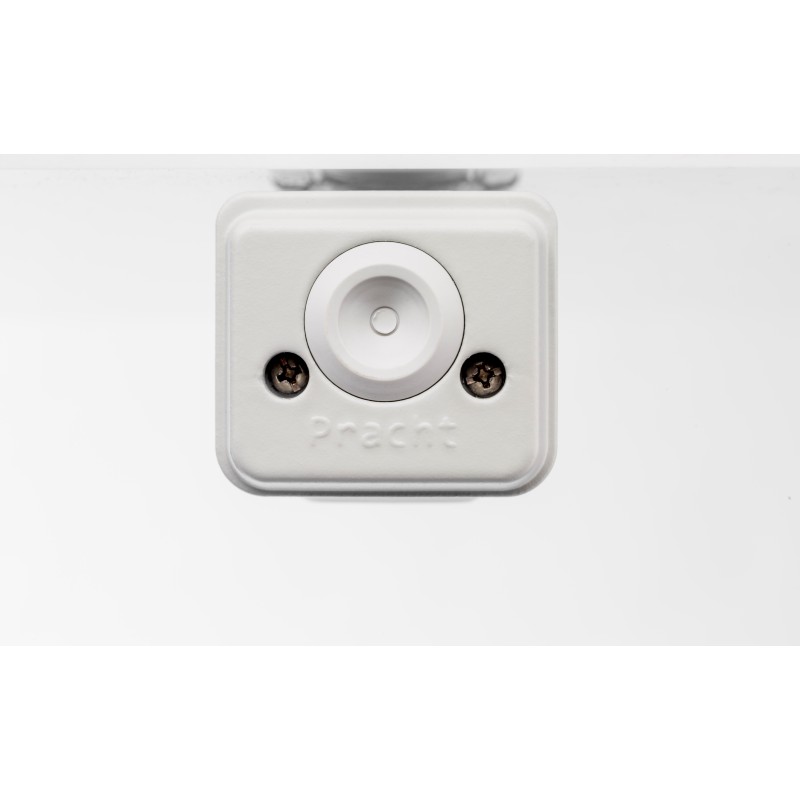

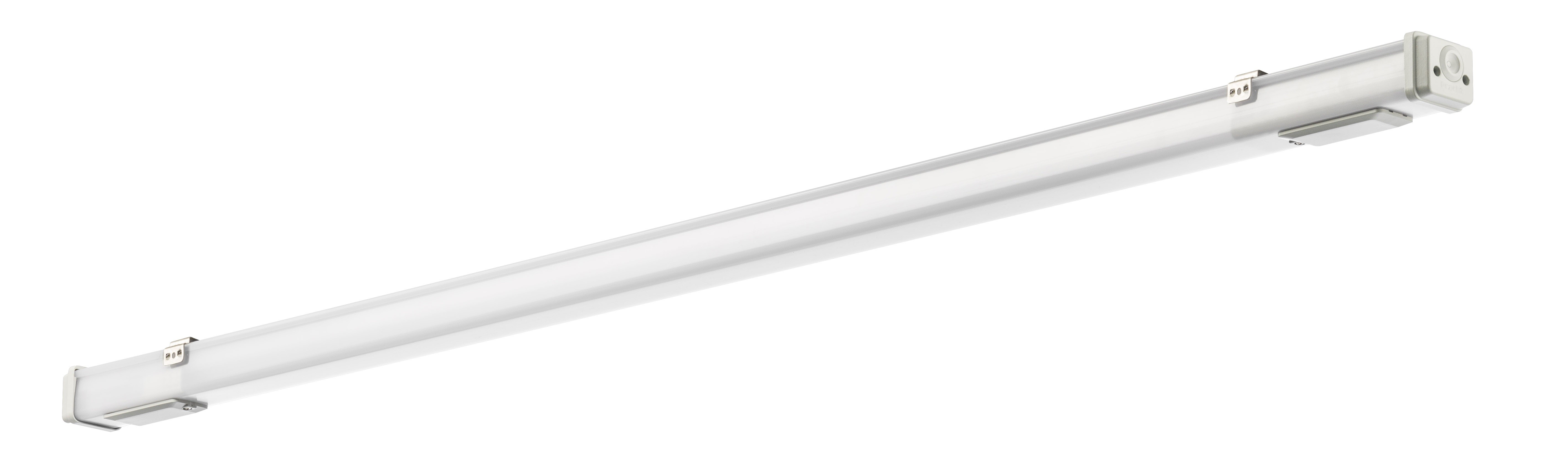

9128135 KATLA SKII 1745mm PCO 1x39W 120° 4800lm
KATLA SKII 1745mm PCO 1x39W 120° 4800lm, 4000K, class II, with TW 2x1,5mm². KATLA SKII: Robust damp-proof luminaire with IP66 protection, impact-resistant PCO housing, wide-angle 120° optics, simple installation and replaceable components - ideal for versatile applications.
- configurable damp-proof profile luminaire in SK II
- IP66 and up to 4800lm
- impact-resistant housing made of PC-OPAL
- 3x1.5mm² through-wiring ex works, 5x1,5mm² optional
- variable mounting distances thanks to PRACHT CLAMP SYSTEM
- suitable for ceiling, horizontal wall, pendant and trunking rail mounting
- class II
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1745 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 |
| IK Schlagfestigkeit | IK07 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 2x1.5 |
| Outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 1745 x 59 x 62 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -25 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -25 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 4800 lm |
| Leistung | 39 W |
| Lichtausbeute | 123 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 90 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 24.6 / 25.6 |
| Lebensdauer L70B50 (@Ta 25°C) | 189090 h |
| Lebensdauer L80B50 (@Ta 25°C) | 118490 h |
| Lebensdauer L90B50 (@Ta 25°C) | 56231 h |
| Lebensdauer L70B10 (@Ta 25°C) | 142194 h |
| Lebensdauer L80B10 (@Ta 25°C) | 89418 h |
| Lebensdauer L90B10 (@Ta 25°C) | 42866 h |
| Lebensdauer L70B50 (@Ta max) | 174846 h |
| Lebensdauer L80B50 (@Ta max) | 110002 h |
| Lebensdauer L90B50 (@Ta max) | 52531 h |
| Stoßspannungsfestigkeit L/N-PE | 4.0 kV |
| REMADE Score | 86 % |
| Zertifizierungszeichen | ENEC |
| Energieeffizienzklasse Lichtquelle | D |
| Leitungsschutz B16A | 15 |
| Leitungsschutz C16A | 25 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Configurable Profile luminaire KATLA SKII 1745mm PCO 1x39W 120° 4800lm 4000K, class II, with TW 2x1,5mm². KATLA SKII: Robust damp-proof luminaire with IP66 protection, impact-resistant PCO housing, wide-angle 120° optics, simple installation and replaceable components - ideal for versatile applications. Item number: 9128135 GTIN: 4018098352426 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 2x1.5; Dimensions: LxWxH: 1745mm x 59mm x 62mm; Diameter: mm
