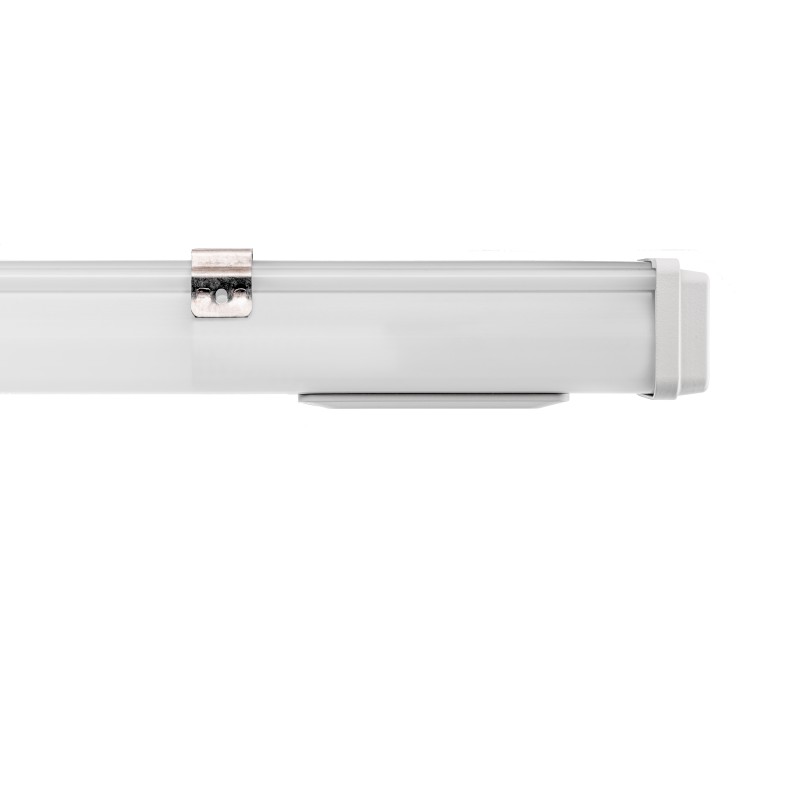

9128139 KATLA SKII DALI 1465mm PCO 1x37W 120° 4500lm
KATLA SKII DALI 1465mm PCO 1x37W 120° 4500lm, 4000K, class II, with TW 2x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA SKII: Robust damp-proof luminaire with IP66 protection, impact-resistant PCO housing, wide-angle 120° optics, simple installation and replaceable components - ideal for versatile applications.
- configurable damp-proof profile luminaire in SK II
- IP66 and up to 4800lm
- impact-resistant housing made of PC-OPAL
- 3x1.5mm² through-wiring ex works, 5x1,5mm² optional
- variable mounting distances thanks to PRACHT CLAMP SYSTEM
- suitable for ceiling, horizontal wall, pendant and trunking rail mounting
- class II
technical data
| Dimensions (L x W x H) | 1465 x 59 x 62 mm |
|---|---|
| Luminous flux | 4500 lm |
| Performance | 37 W |
| Luminous efficacy | 122 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 2x1.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1465 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 25.2 / 26.2 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK II |
| Temperature range | -25 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 181164 h |
| Lifetime L80B50 (@Ta 25°C) | 113500 h |
| Lifetime L90B50 (@Ta 25°C) | 53938 h |
| Lifetime L70B10 (@Ta 25°C) | 142452 h |
| Lifetime L80B10 (@Ta 25°C) | 89198 h |
| Lifetime L90B10 (@Ta 25°C) | 42601 h |
| Lifetime L70B50 (@Ta max) | 162236 h |
| Lifetime L80B50 (@Ta max) | 102132 h |
| Lifetime L90B50 (@Ta max) | 49183 h |
| Line protection B16A | 15 Luminaires |
| Line protection C16A | 25 Luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9128139NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 86 % |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 35 °C |
| Certification mark | ENEC |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Configurable Profile luminaire KATLA SKII DALI 1465mm PCO 1x37W 120° 4500lm 4000K, class II, with TW 2x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA SKII: Robust damp-proof luminaire with IP66 protection, impact-resistant PCO housing, wide-angle 120° optics, simple installation and replaceable components - ideal for versatile applications. Item number: 9128139 GTIN: 4018098352464 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 2x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
