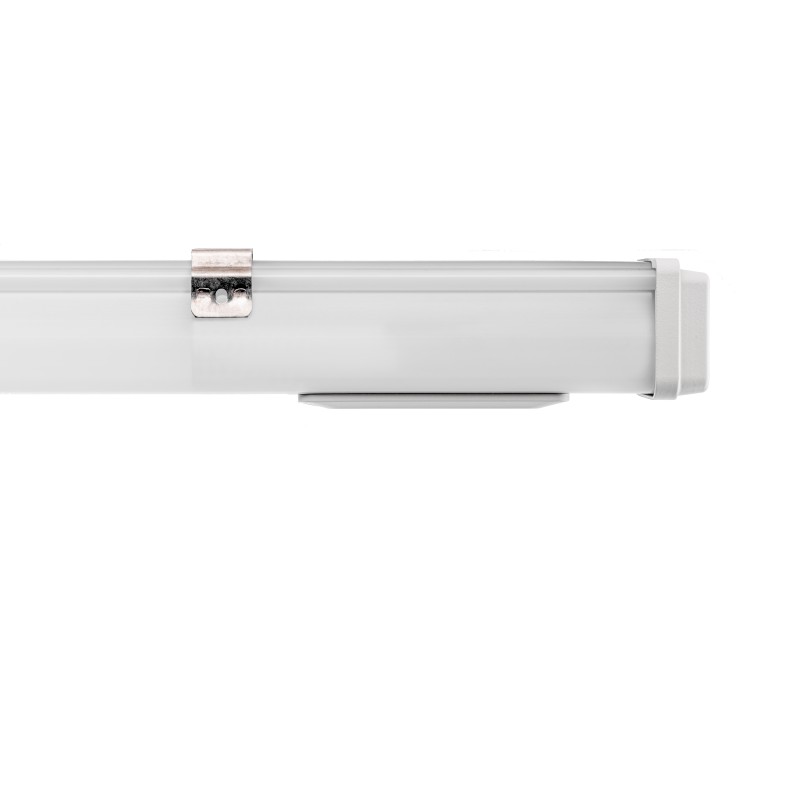

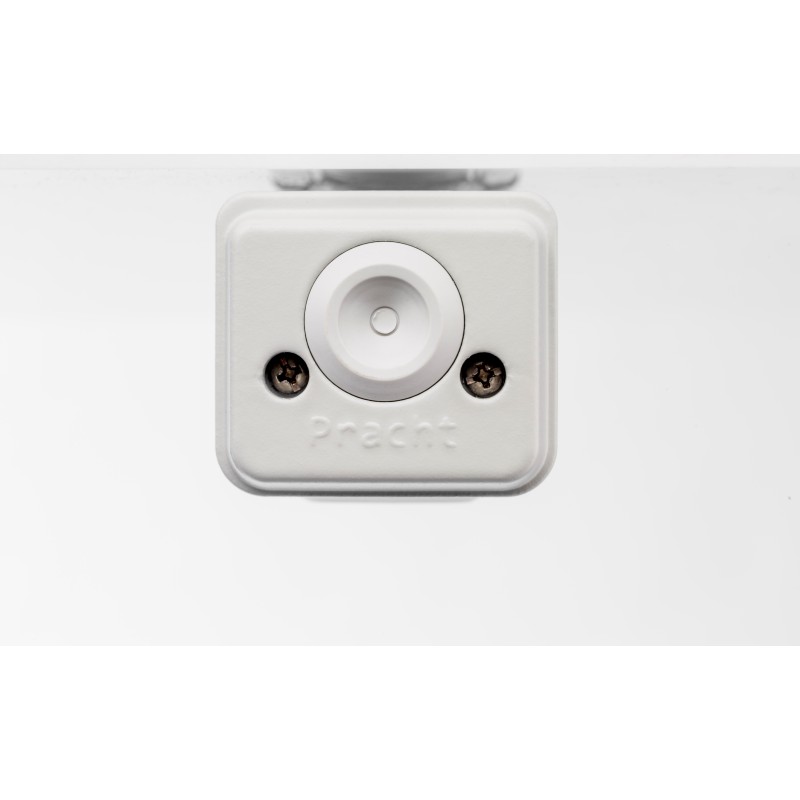

9131150 KATLA LED 1465mm PCO 1x24W 120° 3700lm
KATLA LED 1465mm PCO 1x24W 120° 3700lm, 4000K, class I, with TW 3x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications.
- Configurable damp-proof profile luminaire
- IP66 and up to 8500lm in INDUSTRY version
- Impact-resistant housing made of PC-OPAL
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional
- Variable fixing distances thanks to PRACHT CLAMP SYSTEM
- Suitable for ceiling, horizontal wall, pendant and trunking rail mounting
technical data
| Beam angle | 120 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 9131150NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1465 mm |
| multi-lumen | Nein |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| through-wiring | 3x1.5 |
| outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1465 x 59 x 62 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Lichtstrom | 3700 lm |
| Leistung | 24 W |
| light output | 154 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 24.6 / 25.6 |
| Lifetime L70B50 (@Ta 25°C) | 257228 h |
| Service life L80B50 (@Ta 25°C) | 164510 h |
| Lifetime L90B50 (@Ta 25°C) | 84694 h |
| Lifetime L70B10 (@Ta 25°C) | 217037 h |
| Lifetime L80B10 (@Ta 25°C) | 141661 h |
| Lifetime L90B10 (@Ta 25°C) | 74521 h |
| Lifetime L70B50 (@Ta max) | 242019 h |
| Lifetime L80B50 (@Ta max) | 156442 h |
| Lifetime L90B50 (@Ta max) | 80957 h |
| Circuit breaker B16A | 39 Leuchten |
| Circuit breaker C16A | 66 Leuchten |
| Surge voltage resistance L/N-PE | 2.0 kV |
| REMADE Score | 86 % |
| Energy efficiency class of light source | C |
Tender text
Configurable Profile luminaire KATLA LED 1465mm PCO 1x24W 120° 3700lm 4000K, class I, with TW 3x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications. Item number: 9131150 GTIN: 4018098232957 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
