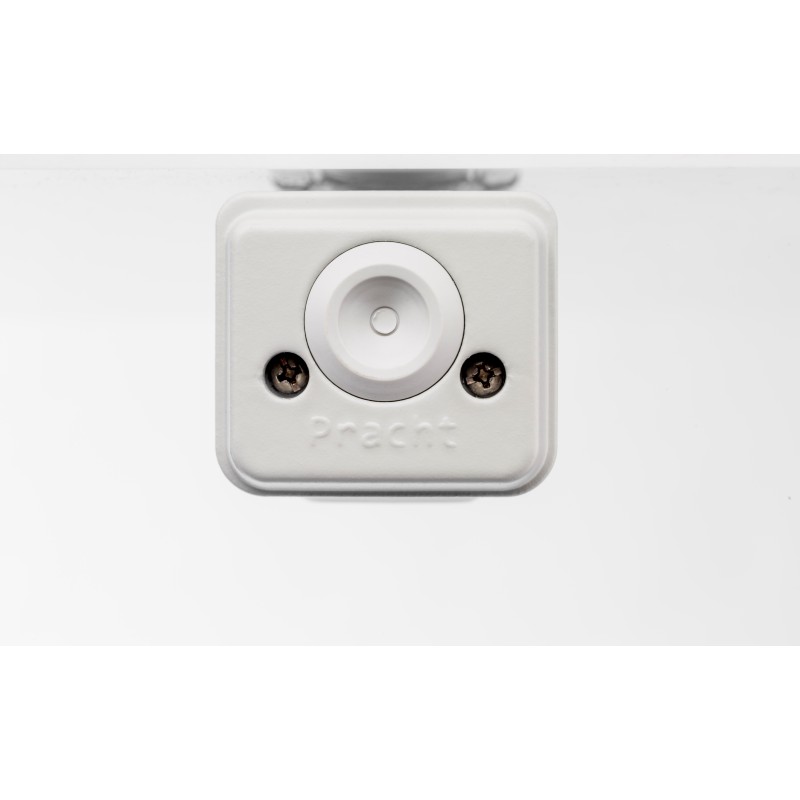

9137334 KATLA INDUSTRY 1465mm PCO 1x36W 120° 5300lm
KATLA INDUSTRY 1465mm PCO 1x36W 120° 5300lm, 4000K, class I, with TW 3x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications.
- Configurable damp-proof profile luminaire
- IP66 and up to 8500lm
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional
- Variable mounting distances, suitable for ceiling, horizontal wall, pendant and mounting rail installation
- Industrial components for longer service life and temperature ranges
technical data
| Dimensions (L x W x H) | 1465 x 59 x 62 mm |
|---|---|
| Luminous flux | 5300 lm |
| Performance | 36 W |
| Luminous efficacy | 147 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1,5 |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1465 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 25.7 / 26.7 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK I |
| Temperature range | -30 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Lifetime L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 183870 h |
| Lifetime L80B50 (@Ta max) | 115286 h |
| Lifetime L90B50 (@Ta max) | 54955 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 30 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9137334NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 86 % |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 45 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | Fixed Output |
Tender text
Robust Profile luminaire KATLA INDUSTRY 1465mm PCO 1x36W 120° 5300lm 4000K, class I, with TW 3x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications. Item number: 9137334 GTIN: 4018098298182 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
