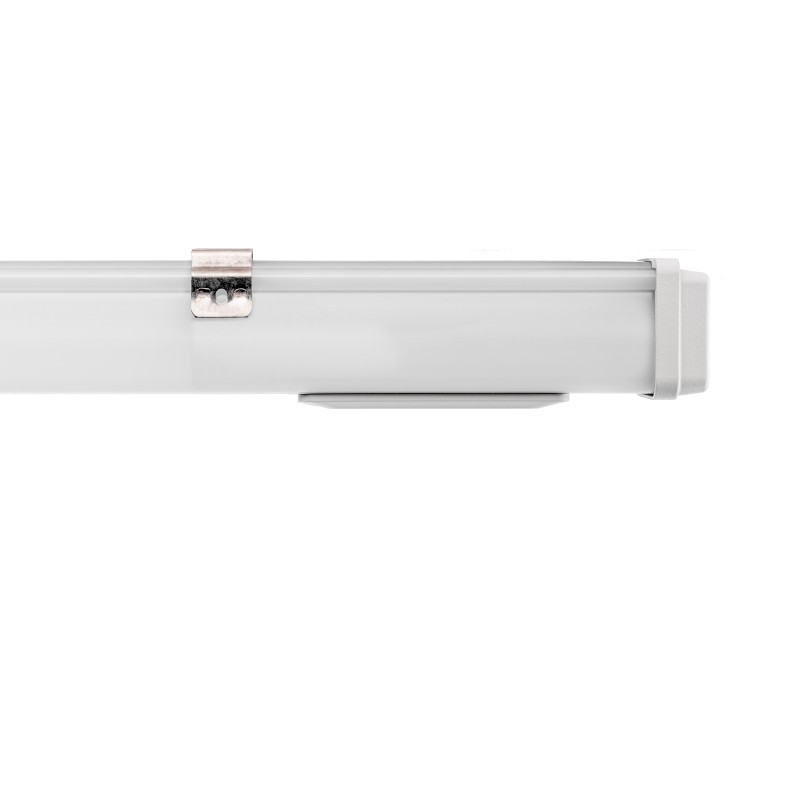

9137374 KATLA INDUSTRY 1465mm PCO 1x43W 120° 6800lm
KATLA INDUSTRY 1465mm PCO 1x43W 120° 6800lm, 4000K, class I, with TW 3x1,5mm². KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications.
- Configurable damp-proof profile luminaire
- IP66 and up to 8500lm
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional
- Variable mounting distances, suitable for ceiling, horizontal wall, pendant and mounting rail installation
- Industrial components for longer service life and temperature ranges
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1465 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 |
| IK Schlagfestigkeit | IK07 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 3x1.5 |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1465 x 59 x 62 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -30 … +45 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -30 °C |
| Umgebungstemperatur (max) | 45 °C |
| Lichtstrom | 6800 lm |
| Leistung | 43 W |
| Lichtausbeute | 158 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 26.6 / 27.6 |
| Lebensdauer L70B50 (@Ta 25°C) | 210192 h |
| Lebensdauer L80B50 (@Ta 25°C) | 131856 h |
| Lebensdauer L90B50 (@Ta 25°C) | 62816 h |
| Lebensdauer L70B10 (@Ta 25°C) | 185415 h |
| Lebensdauer L80B10 (@Ta 25°C) | 116543 h |
| Lebensdauer L90B10 (@Ta 25°C) | 55794 h |
| Lebensdauer L70B50 (@Ta max) | 185282 h |
| Lebensdauer L80B50 (@Ta max) | 116997 h |
| Lebensdauer L90B50 (@Ta max) | 56765 h |
| Stoßspannungsfestigkeit L/N-PE | 4.0 kV |
| REMADE Score | 86 % |
| Energieeffizienzklasse Lichtquelle | B |
| Leitungsschutz B16A | 18 |
| Leitungsschutz C16A | 30 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Robust Profile luminaire KATLA INDUSTRY 1465mm PCO 1x43W 120° 6800lm 4000K, class I, with TW 3x1,5mm². KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications. Item number: 9137374 GTIN: 4018098298199 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class B; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5; Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
