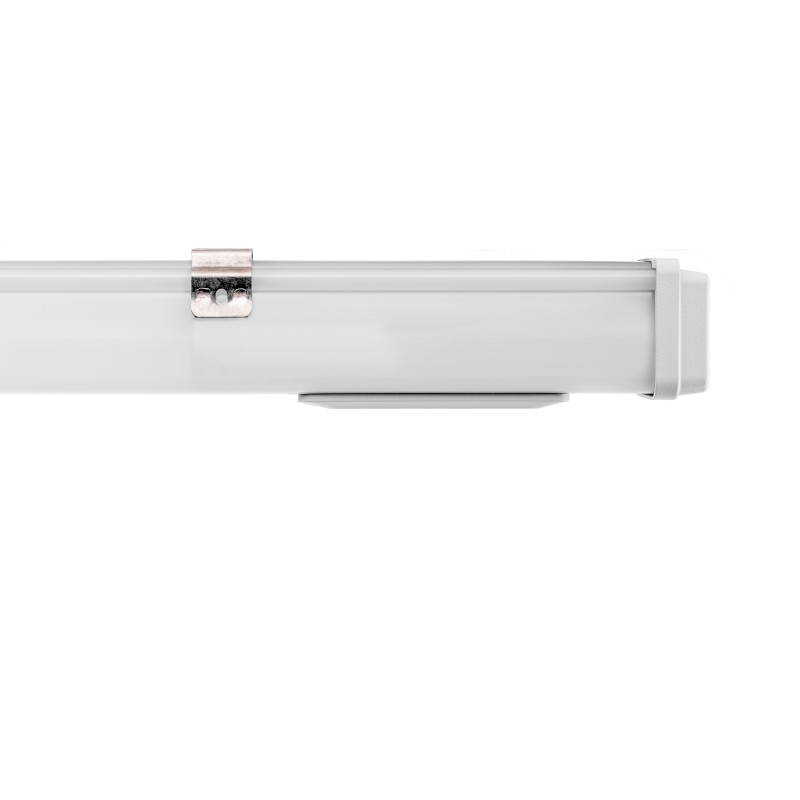

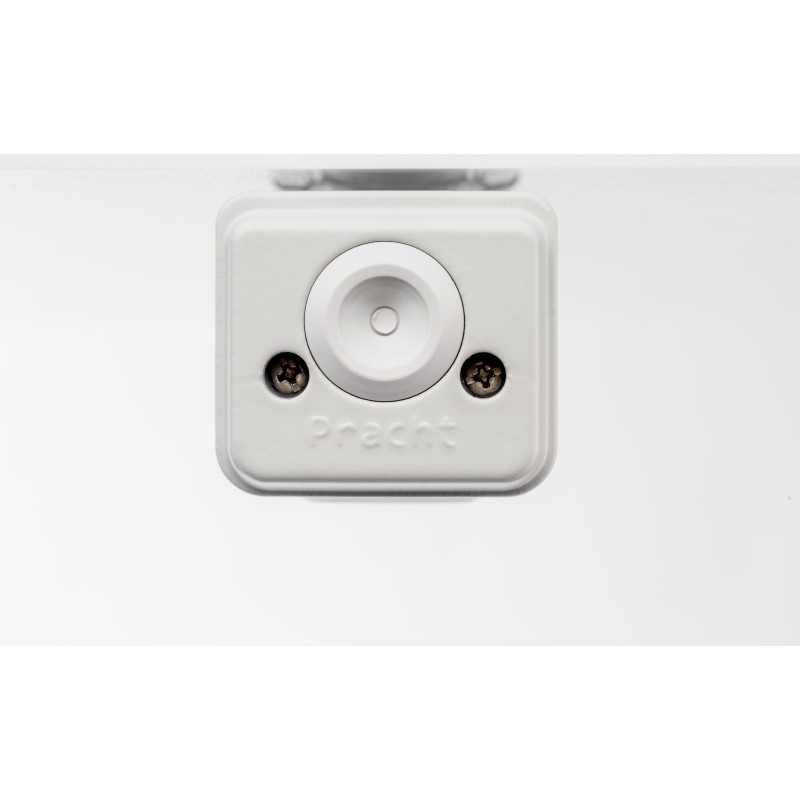

9137379 KATLA INDUSTRY DALI 1465mm PCO 1x47W 120° 6800lm
KATLA INDUSTRY DALI 1465mm PCO 1x47W 120° 6800lm, 4000K, class I, with TW 3x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications.
- Configurable damp-proof profile luminaire
- IP66 and up to 8500lm
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional
- Variable mounting distances, suitable for ceiling, horizontal wall, pendant and mounting rail installation
- Industrial components for longer service life and temperature ranges
technical data
| Dimensions (L x W x H) | 1465 x 59 x 62 mm |
|---|---|
| Luminous flux | 6800 lm |
| Performance | 47 W |
| Luminous efficacy | 145 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1465 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 26.6 / 27.6 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK I |
| Temperature range | -30 ... +45 °C |
| Lifetime L70B50 (@Ta 25°C) | 210192 h |
| Lifetime L80B50 (@Ta 25°C) | 131856 h |
| Lifetime L90B50 (@Ta 25°C) | 62816 h |
| Lifetime L70B10 (@Ta 25°C) | 185415 h |
| Lifetime L80B10 (@Ta 25°C) | 116543 h |
| Lifetime L90B10 (@Ta 25°C) | 55794 h |
| Lifetime L70B50 (@Ta max) | 157316 h |
| Lifetime L80B50 (@Ta max) | 98688 h |
| Lifetime L90B50 (@Ta max) | 47333 h |
| Line protection B16A | 24 luminaires |
| Line protection C16A | 40 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9137379NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 86 % |
| Ambient temperature (min) | -30 °C |
| Ambient temperature (max) | 45 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Robust Profile luminaire KATLA INDUSTRY DALI 1465mm PCO 1x47W 120° 6800lm 4000K, class I, with TW 3x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA INDUSTRY: Robust, IP66-certified moisture-proof luminaire with impact-resistant PCO housing, wide-angle 120° optics, simple installation and ideal for demanding industrial applications. Item number: 9137379 GTIN: 4018098298274 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
