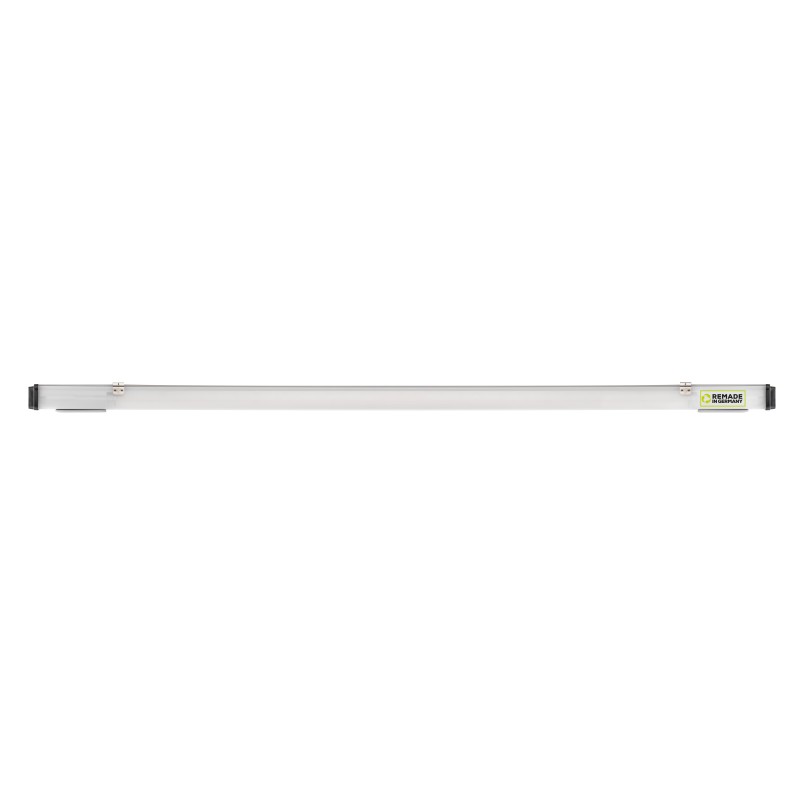

9171166 KATLA REMADE DALI 1465mm PCO 1x38W 120° 5300lm
KATLA REMADE DALI 1465mm PCO 1x38W 120° 5300lm, 4000K, class I, with TW 3x1,5mm²+2x1,5mm². KATLA REMADE: Sustainable LED moisture-proof luminaire made from 99% recycled plastic, IP66-certified, with replaceable components, wide 120° beam optics and versatile mounting options for environmentally conscious industrial applications.
- World's first moisture-proof luminaire made from 100% recycled plastics (PC-OPAL recyclate)
- Configurable moisture-proof profile luminaire in IP66 and up to 6700lm
- Impact-resistant housing made from PC-OPAL
- 3x1,5mm² through-wiring ex works

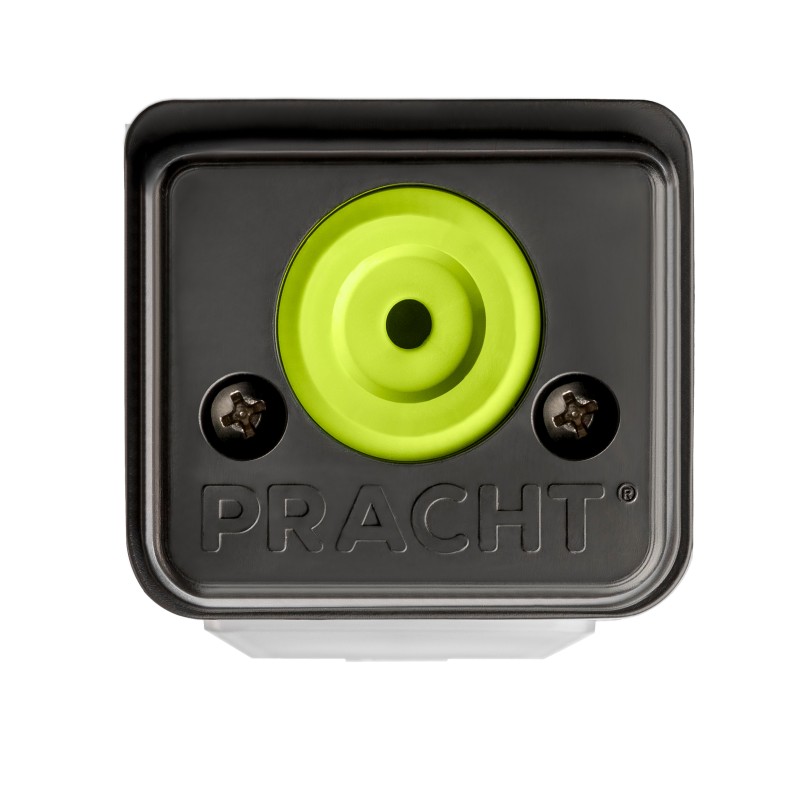

- variable mounting distances thanks to PRACHT CLAMP SYSTEM
- suitable for ceiling, horizontal wall, pendant and trunking mounting
technical data
| Ausstrahlwinkel | 120 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1465 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 IP66 |
| IK Schlagfestigkeit | IK07 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by qualified person |
| Through-wiring | 3x1.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Protection class | class I |
| Abmessungen (L x B x H) | 1465 x 59 x 62 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 5300 lm |
| Leistung | 38 W |
| Lichtausbeute | 139 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 5 |
| Blendbewertung (UGR 4H 8H) | 25.4 / 26.5 |
| Lebensdauer L70B50 (@Ta 25°C) | 242019 h |
| Lebensdauer L80B50 (@Ta 25°C) | 156442 h |
| Lebensdauer L90B50 (@Ta 25°C) | 80957 h |
| Lebensdauer L70B10 (@Ta 25°C) | 217363 h |
| Lebensdauer L80B10 (@Ta 25°C) | 140345 h |
| Lebensdauer L90B10 (@Ta 25°C) | 72366 h |
| Lebensdauer L70B50 (@Ta max) | 231596 h |
| Lebensdauer L80B50 (@Ta max) | 148328 h |
| Lebensdauer L90B50 (@Ta max) | 74624 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| REMADE Score | 99 % |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 32 |
| Leitungsschutz C16A | 53 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Sustainable Profile luminaire KATLA REMADE DALI 1465mm PCO 1x38W 120° 5300lm 4000K, class I, with TW 3x1,5mm²+2x1,5mm². KATLA REMADE: Sustainable LED moisture-proof luminaire made from 99% recycled plastic, IP66-certified, with replaceable components, wide 120° beam optics and versatile mounting options for environmentally conscious industrial applications. Item number: 9171166 GTIN: 4018098352297 Technical details/specification: Cover made of PCOr - Polycarbonate OPAL Recyclate; Housing made of PC-PBT Recyclate opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
