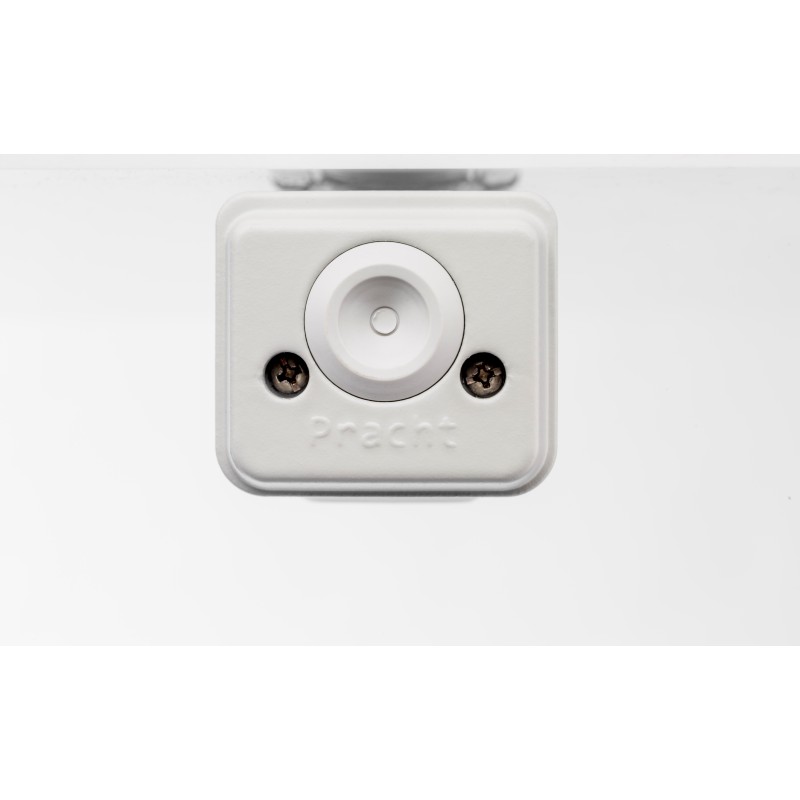

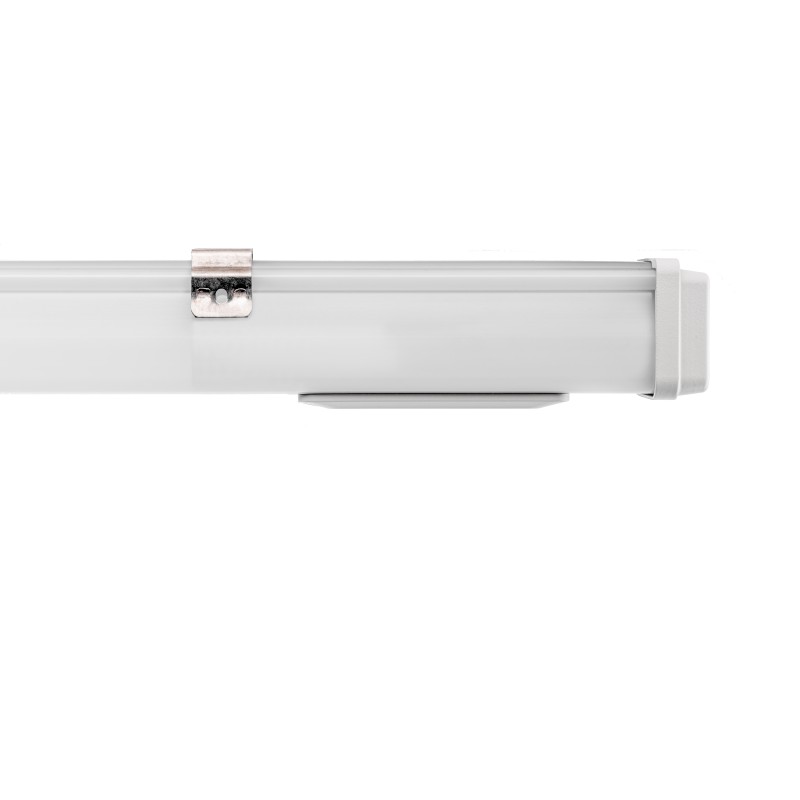

9171269 KATLA LED DALI 1465mm PCO 1x38W 120° 5300lm
KATLA LED DALI 1465mm PCO 1x38W 120° 5300lm, 4000K, class I, with TW 3x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications.
- Configurable damp-proof profile luminaire
- IP66 and up to 8500lm in INDUSTRY version
- Impact-resistant housing made of PC-OPAL
- 3x1.5mm² through-wiring ex works, 5x1.5mm² optional
- Variable fixing distances thanks to PRACHT CLAMP SYSTEM
- Suitable for ceiling, horizontal wall, pendant and trunking rail mounting
technical data
| Dimensions (L x W x H) | 1465 x 59 x 62 mm |
|---|---|
| Luminous flux | 5300 lm |
| Performance | 38 W |
| Luminous efficacy | 139 lm/W |
| Color temperature | 4000 K |
| Beam angle | 120 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 3x1.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1465 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 5 |
| Glare rating (UGR 4H 8H) | 25.4 / 26.5 |
| IP protection class | IP65 IP66 |
| IK Impact resistance | IK07 |
| Protection class | SK I |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 242019 h |
| Lifetime L80B50 (@Ta 25°C) | 156442 h |
| Lifetime L90B50 (@Ta 25°C) | 80957 h |
| Lifetime L70B10 (@Ta 25°C) | 217363 h |
| Lifetime L80B10 (@Ta 25°C) | 140345 h |
| Lifetime L90B10 (@Ta 25°C) | 72366 h |
| Lifetime L70B50 (@Ta max) | 231596 h |
| Lifetime L80B50 (@Ta max) | 148328 h |
| Lifetime L90B50 (@Ta max) | 74624 h |
| Line protection B16A | 32 Luminaires |
| Line protection C16A | 53 Luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 9171269NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by specialist(s) |
| REMADE Score | 86 % |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Configurable Profile luminaire KATLA LED DALI 1465mm PCO 1x38W 120° 5300lm 4000K, class I, with TW 3x1,5mm²+2x1,5mm². The plastic parts of this luminaire are made from 86% recycled material. KATLA LED: Slim, IP66-certified moisture-proof luminaire with robust PCO housing, 120° wide beam light control, simple installation and ideal for a wide range of applications. Item number: 9171269 GTIN: 4018098243472 Technical details/specification: Cover made of PCO - Polycarbonate OPAL; Housing made of PC-OPAL opalized; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP66, IP65; Through-wiring in mm²: 3x1.5+2x1.5 (DALI); Dimensions: LxWxH: 1465mm x 59mm x 62mm; Diameter: mm
