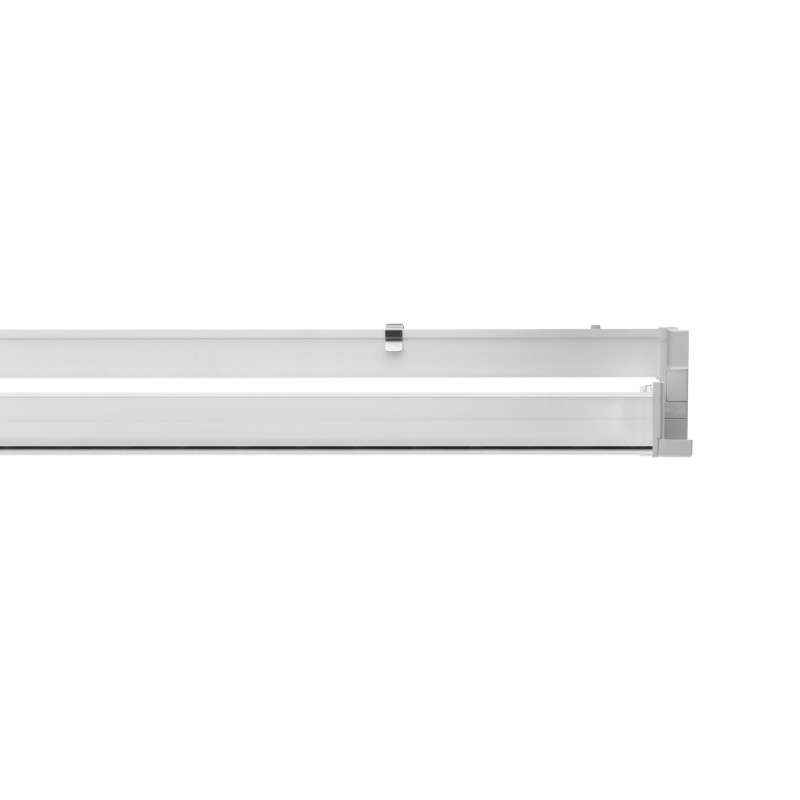

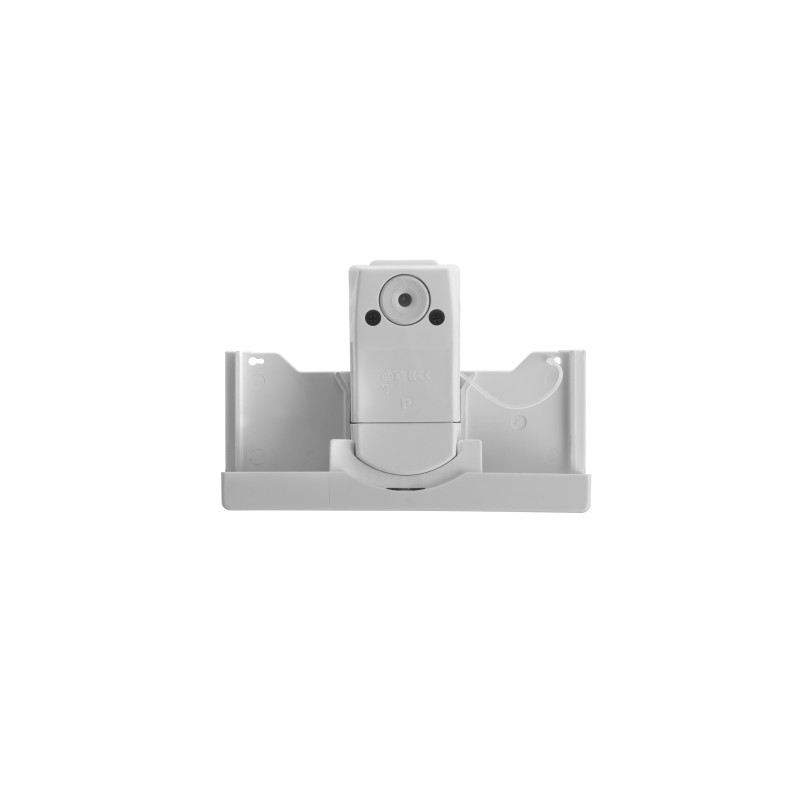

7404010 TAUNUS N LED DALI 185 1546mm PO 1x22W A075° 3300lm
TAUNUS N LED DALI 185 1546mm PO 1x22W A075° 3300lm, 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06).
- Recessed luminaire for panel and Modul 100 ceilings
- Suitable for existing panel ceilings 085 or 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- Available in class II
technical data
| Dimensions (L x W x H) | 1546 x 192 x 137 mm |
|---|---|
| Luminous flux | 3300 lm |
| Performance | 22 W |
| Luminous efficacy | 150 lm/W |
| Color temperature | 4000 K |
| Beam angle | 75 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1546 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 20.6 / 15.3 |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Protection class | SK II |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 245604 h |
| Lifetime L80B50 (@Ta 25°C) | 154282 h |
| Lifetime L90B50 (@Ta 25°C) | 73730 h |
| Lifetime L70B10 (@Ta 25°C) | 197535 h |
| Lifetime L80B10 (@Ta 25°C) | 124487 h |
| Lifetime L90B10 (@Ta 25°C) | 59851 h |
| Lifetime L70B50 (@Ta max) | 245604 h |
| Lifetime L80B50 (@Ta max) | 154282 h |
| Lifetime L90B50 (@Ta max) | 73730 h |
| Line protection B16A | 22 Luminaires |
| Line protection C16A | 36 luminaires |
| Surge voltage resistance L/N-PE | 2.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7404010NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | C |
| Dimming/Control | DALI |
Tender text
Custom-fit Recessed luminaire TAUNUS N LED DALI 185 1546mm PO 1x22W A075° 3300lm 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06). Item number: 7404010 GTIN: 4018098295020 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1546mm x 192mm x 137mm; Diameter: mm
