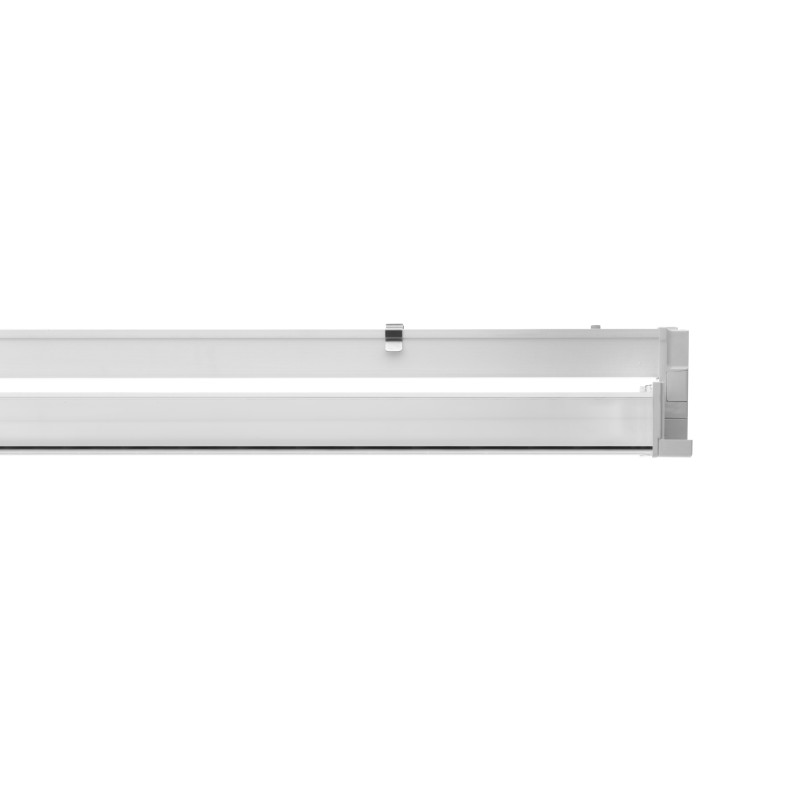

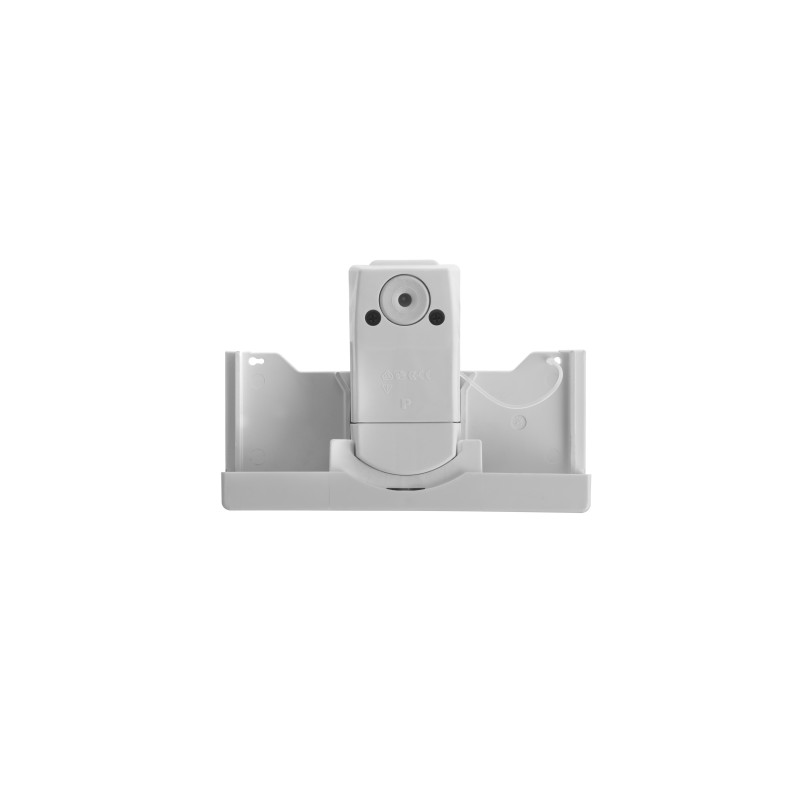

7404024 TAUNUS N LED 185 1246mm PO 1x25W A075° 3600lm
TAUNUS N LED 185 1246mm PO 1x25W A075° 3600lm, 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06).
- Recessed luminaire for panel and Modul 100 ceilings
- Suitable for existing panel ceilings 085 or 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- Available in class II
technical data
| Ausstrahlwinkel | 75 ° |
|---|---|
| REACH (EN) | No |
| Marktkennzeichen | CE |
| Länge | 1246 mm |
| Multi-Lumen (EN) | No |
| IP Schutzart | IP65 |
| IK Schlagfestigkeit | IK06 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | yes, by manufacturer |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 1246 x 192 x 137 mm |
| Dimmable/Controllable | Fixed Output |
| Temperaturbereich | -20 … +35 °C |
| Versorgungsspannung | AC/DC |
| Nennspannung / Frequenz | 220–240V 0/50/60 Hz |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Umgebungstemperatur (min) | -20 °C |
| Umgebungstemperatur (max) | 35 °C |
| Lichtstrom | 3600 lm |
| Leistung | 25 W |
| Lichtausbeute | 144 lm/W |
| Farbtemperatur | 4000 K |
| Farbwiedergabe Ra | 80 |
| Farbtoleranz (SDCM) | 3 |
| Blendbewertung (UGR 4H 8H) | 21.7 / 16.4 |
| Lebensdauer L70B50 (@Ta 25°C) | 245604 h |
| Lebensdauer L80B50 (@Ta 25°C) | 154282 h |
| Lebensdauer L90B50 (@Ta 25°C) | 73730 h |
| Lebensdauer L70B10 (@Ta 25°C) | 197535 h |
| Lebensdauer L80B10 (@Ta 25°C) | 124487 h |
| Lebensdauer L90B10 (@Ta 25°C) | 59851 h |
| Lebensdauer L70B50 (@Ta max) | 245604 h |
| Lebensdauer L80B50 (@Ta max) | 154282 h |
| Lebensdauer L90B50 (@Ta max) | 73730 h |
| Stoßspannungsfestigkeit L/N-PE | 2.0 kV |
| Energieeffizienzklasse Lichtquelle | C |
| Leitungsschutz B16A | 16 |
| Leitungsschutz C16A | 26 |
| emergency lighting suitability | Yes |
| Producer guarantee | 5 Years |
| D marking | Yes |
Tender text
Custom-fit Recessed luminaire TAUNUS N LED 185 1246mm PO 1x25W A075° 3600lm 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06). Item number: 7404024 GTIN: 4018098295068 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class C; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1246mm x 192mm x 137mm; Diameter: mm
