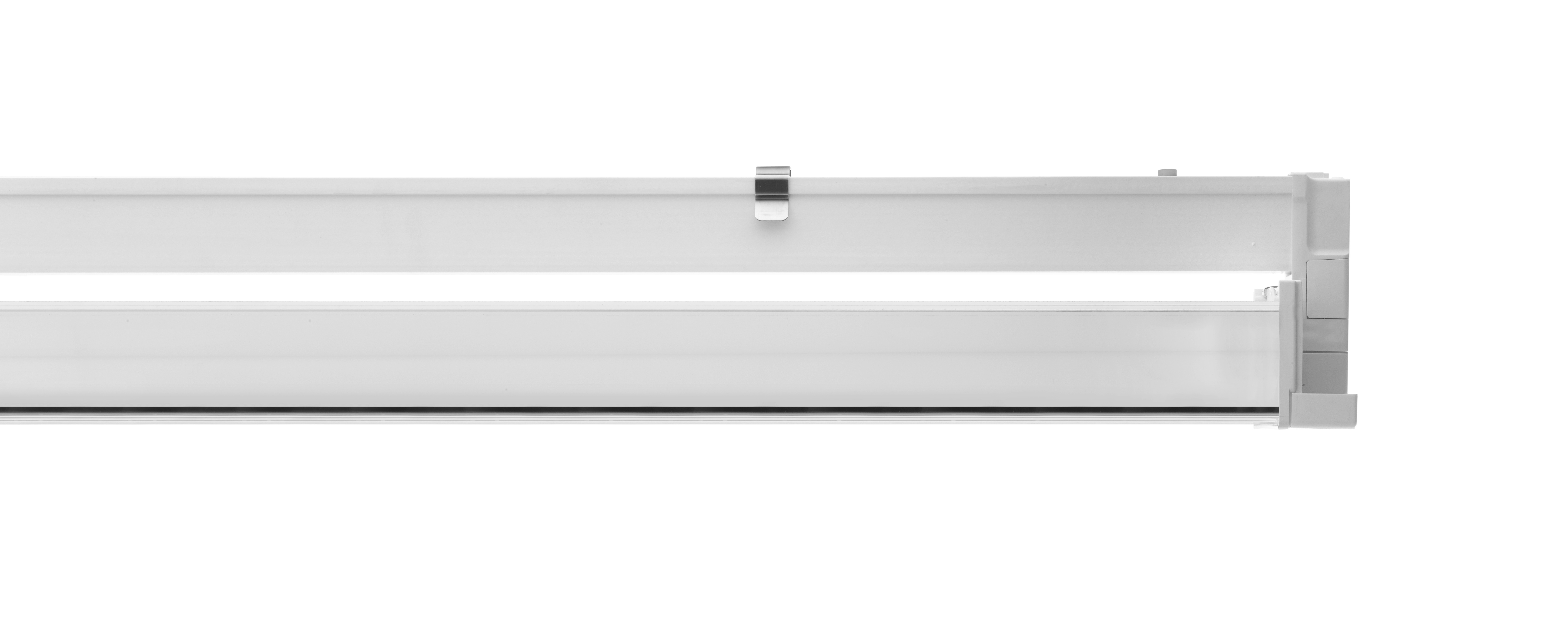

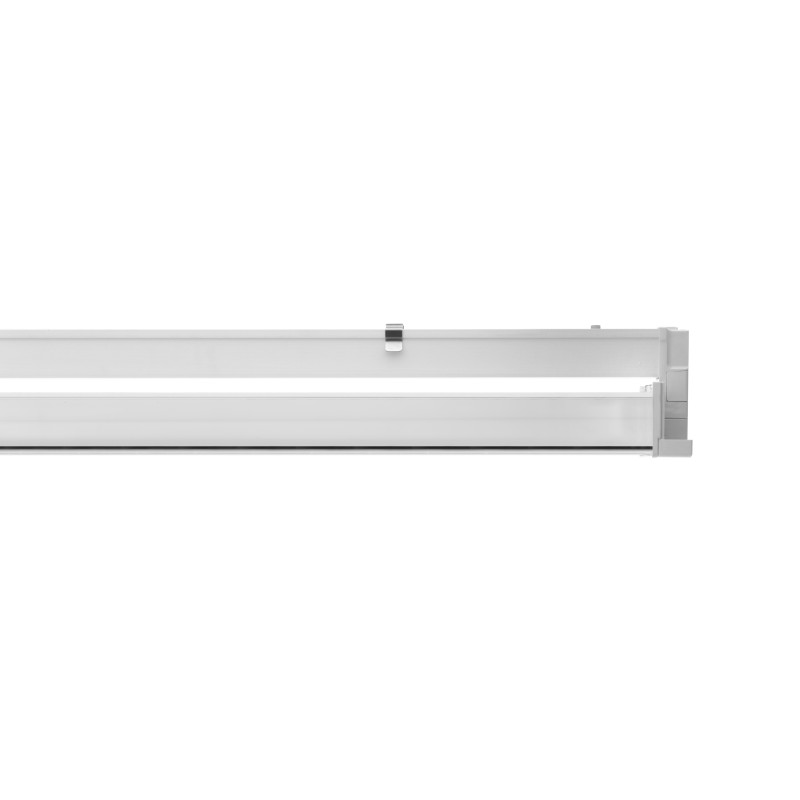

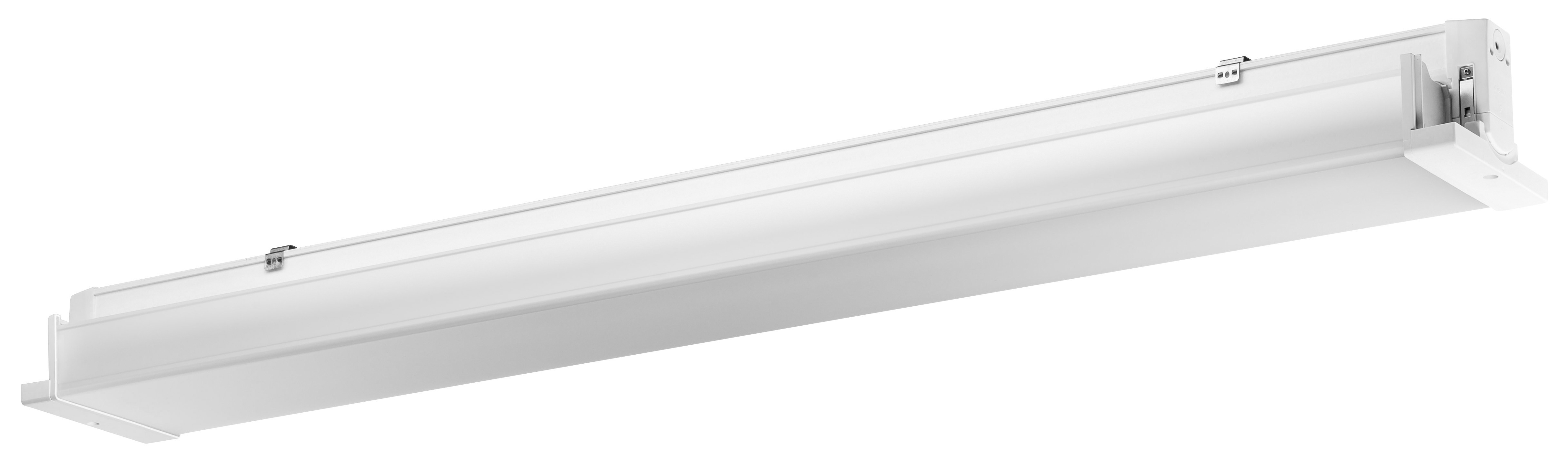

7404425 TAUNUS N LED 185 1546mm PO 1x72W A075° 10000lm
TAUNUS N LED 185 1546mm PO 1x72W A075° 10000lm, 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06).
- Recessed luminaire for panel and Modul 100 ceilings
- Suitable for existing panel ceilings 085 or 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- Available in class II
technical data
| Dimensions (L x W x H) | 1546 x 192 x 137 mm |
|---|---|
| Luminous flux | 10000 lm |
| Performance | 72 W |
| Luminous efficacy | 139 lm/W |
| Color temperature | 4000 K |
| Beam angle | 75 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | without |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1546 mm |
| Color rendering Ra | 80 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 24.4 / 19.2 |
| IP protection class | IP65 |
| IK Impact resistance | IK06 |
| Protection class | SK II |
| Temperature range | -20 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 159003 h |
| Lifetime L80B50 (@Ta 25°C) | 99976 h |
| Lifetime L90B50 (@Ta 25°C) | 47902 h |
| Lifetime L70B10 (@Ta 25°C) | 137495 h |
| Lifetime L80B10 (@Ta 25°C) | 87044 h |
| Lifetime L90B10 (@Ta 25°C) | 42354 h |
| Lifetime L70B50 (@Ta max) | 151442 h |
| Lifetime L80B50 (@Ta max) | 95534 h |
| Lifetime L90B50 (@Ta max) | 46106 h |
| Line protection B16A | 18 Luminaires |
| Line protection C16A | 30 luminaires |
| Surge voltage resistance L/N-PE | 4.0 kV |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 7404425NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | yes, by manufacturer |
| Ambient temperature (min) | -20 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | Fixed Output |
Tender text
Custom-fit Recessed luminaire TAUNUS N LED 185 1546mm PO 1x72W A075° 10000lm 4000K, class II, without TW. LED luminaire for flush installation with PRACHTOPAL cover and GRP polyester housing, equipped with MID-Power LEDs and integrated converter. With age-resistant silicone seals, suitable for ceiling mounting and optional mounting frame (IK06). Item number: 7404425 GTIN: 4018098295273 Technical details/specification: Cover made of PO - PRACHTOPAL; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: without; Dimensions: LxWxH: 1546mm x 192mm x 137mm; Diameter: mm
