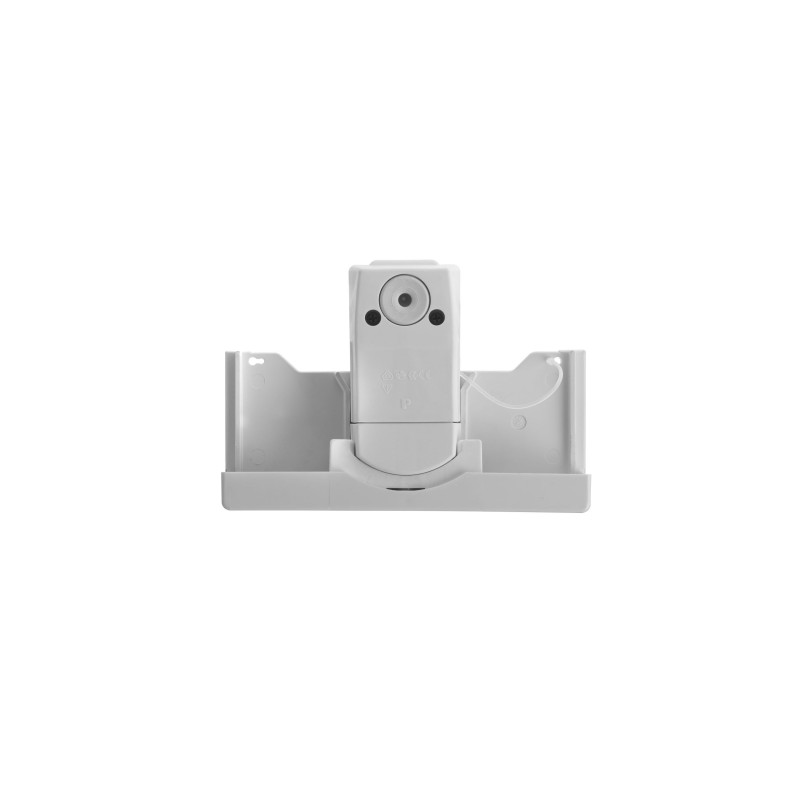

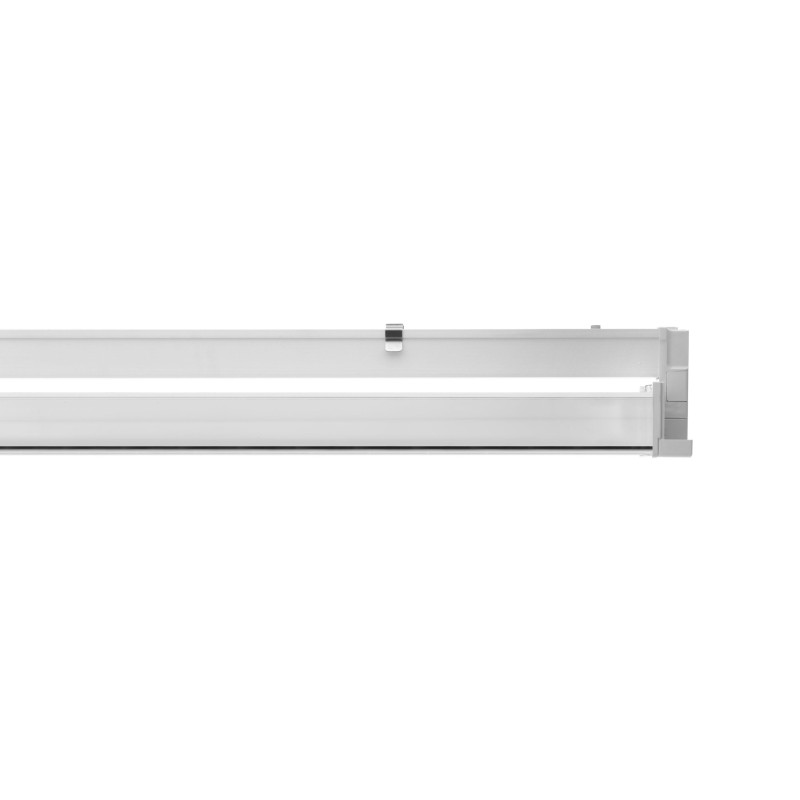

74832720 TAUNUS SKII DALI 185 1546mm PC 1x31W 100° 4200lm
TAUNUS SKII DALI 185 1546mm PC 1x31W 100° 4200lm, 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08).
- Recessed luminaire for panel and module 100 ceilings
- Suitable for existing double panel ceilings width 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- class II
technical data
| Dimensions (L x W x H) | 1546 x 192 x 137 mm |
|---|---|
| Luminous flux | 4200 lm |
| Performance | 31 W |
| Luminous efficacy | 135 lm/W |
| Color temperature | 4000 K |
| Beam angle | 100 ° |
| Guarantee | 5 years |
| D marking | Yes |
| Supply voltage | AC/DC |
| Market indicator | CE |
| Through-wiring | 5x2.5+2x1.5 (DALI) |
| Outdoor area | Protected outdoor area* |
| Vandalism protection | No |
| Animal husbandry | not suitable |
| Multi-Lumen | No |
| Length | 1546 mm |
| Color rendering Ra | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 18.8 / 19.2 |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Protection class | SK II |
| Temperature range | -25 ... +35 °C |
| Lifetime L70B50 (@Ta 25°C) | 189090 h |
| Lifetime L80B50 (@Ta 25°C) | 118490 h |
| Lifetime L90B50 (@Ta 25°C) | 56231 h |
| Lifetime L70B10 (@Ta 25°C) | 142194 h |
| Lifetime L80B10 (@Ta 25°C) | 89418 h |
| Lifetime L90B10 (@Ta 25°C) | 42866 h |
| Lifetime L70B50 (@Ta max) | 181164 h |
| Lifetime L80B50 (@Ta max) | 113500 h |
| Lifetime L90B50 (@Ta max) | 53938 h |
| Line protection B16A | 49 Luminaires |
| Line protection C16A | 83 Luminaires |
| Rated voltage / frequency | 220-240V 0/50/60 Hz |
| Emergency lighting suitability | Yes, with article number 74832720NZ |
| REACH | No |
| Interchangeability of operating device | yes, by specialist(s) |
| Interchangeability of light source | not interchangeable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 35 °C |
| Energy efficiency class Light source | D |
| Dimming/Control | DALI |
Tender text
Custom-fit Recessed luminaire TAUNUS SKII DALI 185 1546mm PC 1x31W 100° 4200lm 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08). Item number: 74832720 GTIN: 4018098355823 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1546mm x 192mm x 137mm; Diameter: mm
