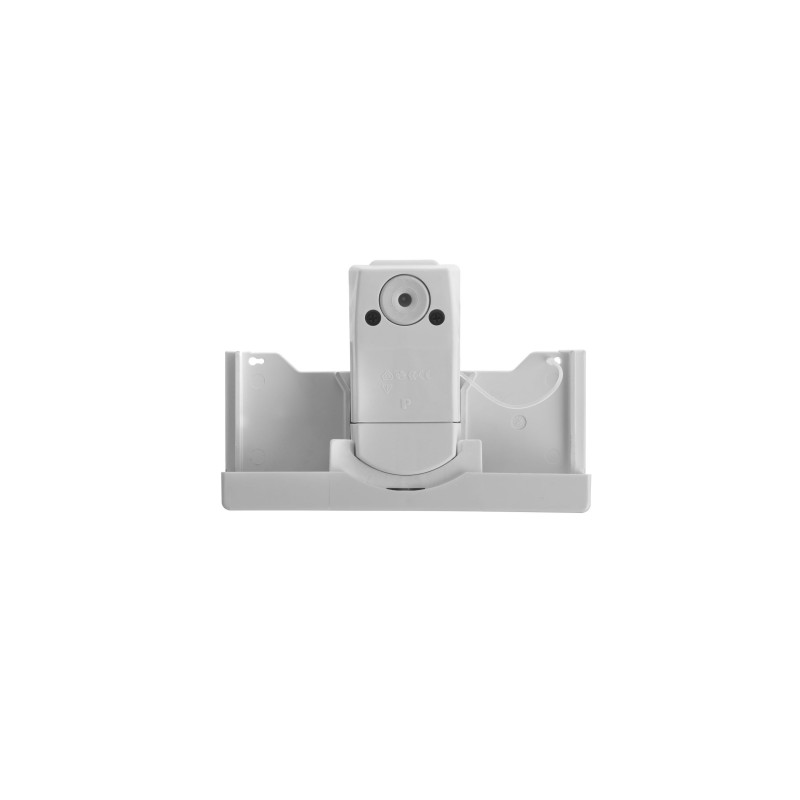

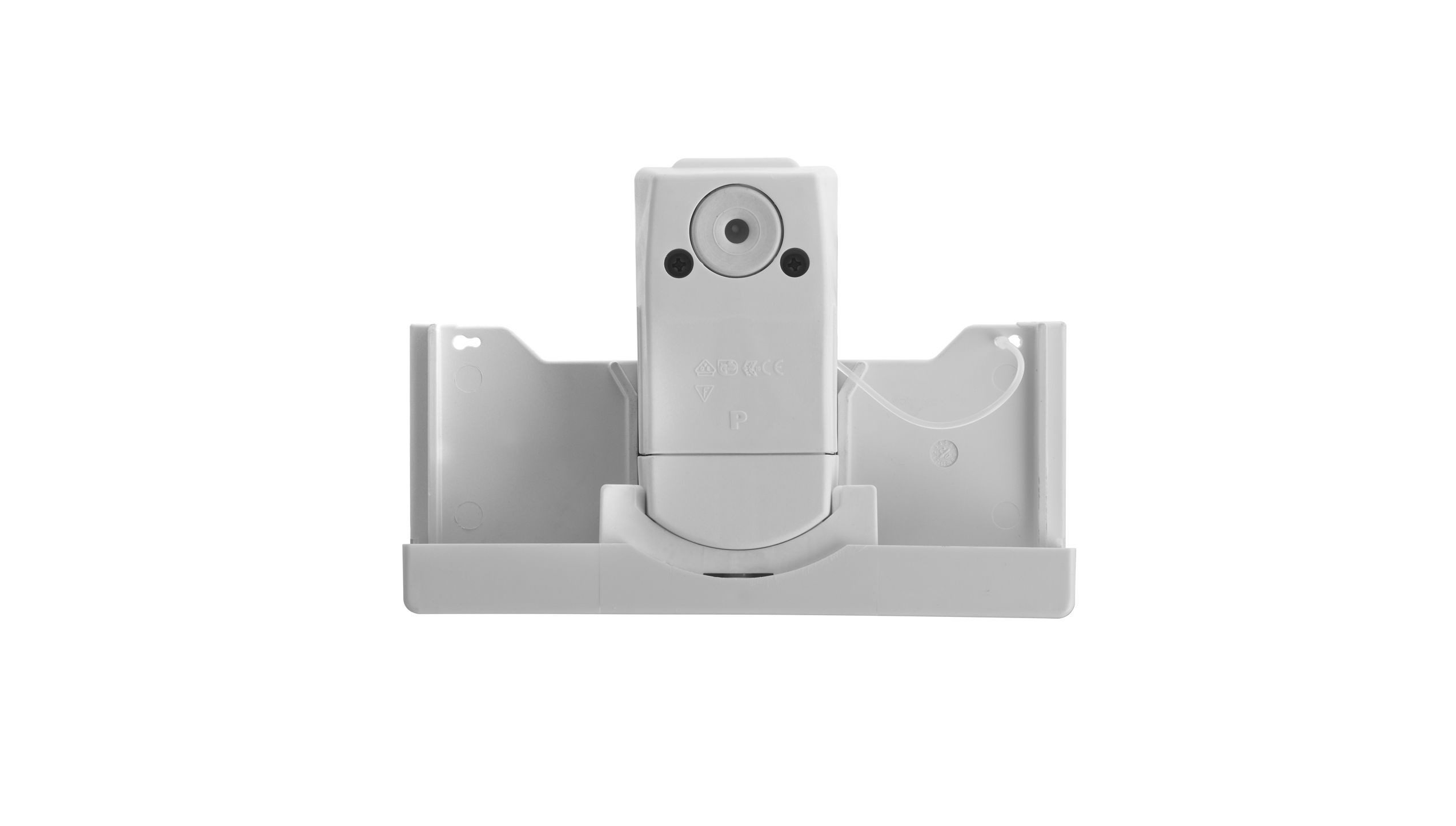

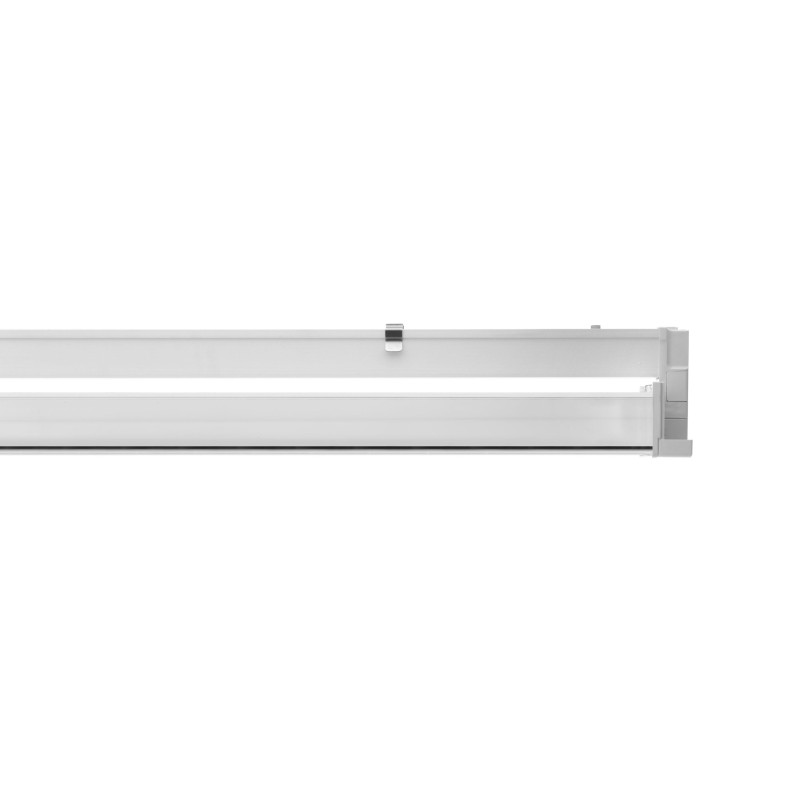

74832740 TAUNUS SKII DALI 185 1546mm PC 1x50W 100° 6700lm
TAUNUS SKII DALI 185 1546mm PC 1x50W 100° 6700lm, 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08).
- Recessed luminaire for panel and module 100 ceilings
- Suitable for existing double panel ceilings width 185 in 1:1 replacement or in new buildings
- Easy to install recessed LED luminaire
- Ideal for distribution levels and underpasses
- Housing not visible for a harmonious appearance
- class II
technical data
| Beam angle | 100 ° |
|---|---|
| Warranty | 5 Years |
| emergency lighting suitability | Ja, mit Artikelnummer 74832740NZ |
| REACH | Nein |
| market indicator | CE |
| length | 1546 mm |
| multi-lumen | Nein |
| IP protection class | IP65 |
| IK Impact resistance | IK08 |
| Interchangeability of operating device | yes, by qualified person |
| Interchangeability of light source | not exchangeable |
| through-wiring | 5x2.5+2x1.5 (DALI) |
| outdoor area | Protected outdoor area* |
| Protection class | class II |
| Abmessungen (L x B x H) | 1546 x 192 x 137 mm |
| Dimmable/Controllable | DALI |
| Temperaturbereich | -25 … +35 °C |
| D marking | Ja |
| supply voltage | AC/DC |
| Rated voltage / frequency | 220–240V 0/50/60 Hz |
| vandalism protection | Nein |
| animal husbandry | not suitable |
| Ambient temperature (min) | -25 °C |
| Ambient temperature (max) | 35 °C |
| Lichtstrom | 6700 lm |
| Leistung | 50 W |
| light output | 134 lm/W |
| Colour Temperature | 4000 K |
| Color rendering index CRI | 90 |
| Color tolerance (SDCM) | 3 |
| Glare rating (UGR 4H 8H) | 20.4 / 20.8 |
| Lifetime L70B50 (@Ta 25°C) | 181164 h |
| Service life L80B50 (@Ta 25°C) | 113500 h |
| Lifetime L90B50 (@Ta 25°C) | 53938 h |
| Lifetime L70B10 (@Ta 25°C) | 142452 h |
| Lifetime L80B10 (@Ta 25°C) | 89198 h |
| Lifetime L90B10 (@Ta 25°C) | 42601 h |
| Lifetime L70B50 (@Ta max) | 162236 h |
| Lifetime L80B50 (@Ta max) | 102132 h |
| Lifetime L90B50 (@Ta max) | 49183 h |
| Circuit breaker B16A | 39 Leuchten |
| Circuit breaker C16A | 39 Leuchten |
| Energy efficiency class of light source | D |
Tender text
Custom-fit Recessed luminaire TAUNUS SKII DALI 185 1546mm PC 1x50W 100° 6700lm 4000K, class II, with TW 5x2,5mm²+2x1,5mm², Surge protection, inrush current limiter. LED luminaire in class II for flush mounting, optimized for transport companies, with optional PC or PRACHTOPAL cover, GRP polyester housing, MID-Power LEDs, integrated converter and age-resistant silicone seals. Suitable for ceiling and panel ceiling installation (IK08). Item number: 74832740 GTIN: 4018098356189 Technical details/specification: Cover made of PC - Polycarbonate; Housing made of GRP polyester white; 220–240V 0/50/60 Hz; Energy efficiency class D; Number of light sources / LED rows: 1; IP65; Through-wiring in mm²: 5x2.5+2x1.5 (DALI); Dimensions: LxWxH: 1546mm x 192mm x 137mm; Diameter: mm
